Product Description / Overview

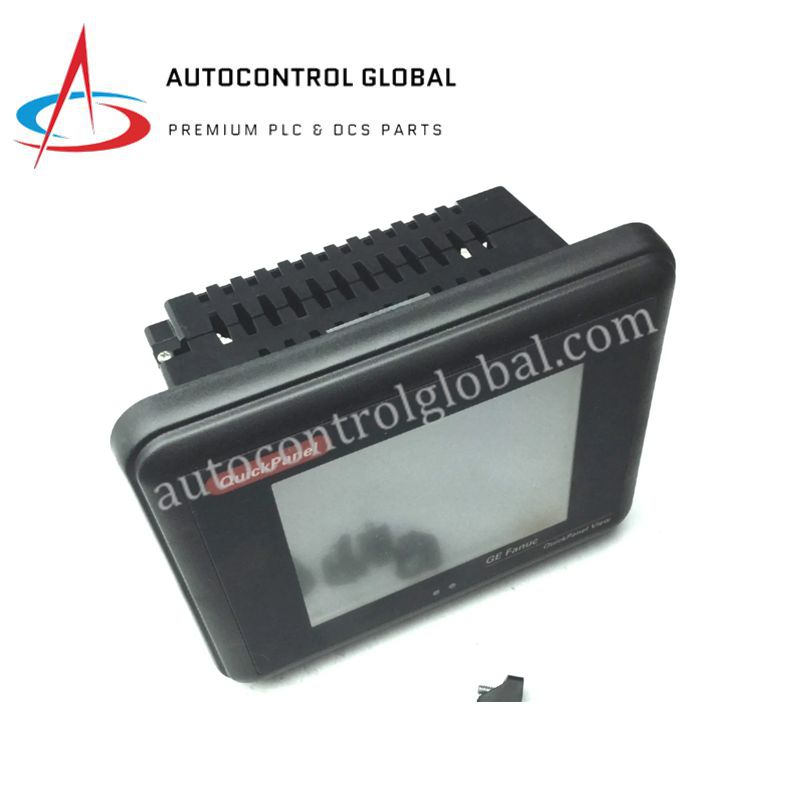

The GE Fanuc ES0622 QuickPanel View HMI delivers a reliable and intuitive operator interface for industrial automation tasks. Its 6-inch color touchscreen simplifies machine interaction while maintaining the durability required for harsh environments. Moreover, the unit runs Windows CE and integrates seamlessly with Proficy Machine Edition, allowing engineers to configure screens, alarms, and scripts quickly. The device suits applications where compact size, stable performance, and strong connectivity are essential.

This HMI provides clear graphical visualization that helps operators monitor process data in real time. In addition, dual Ethernet ports support flexible networking, while serial and USB connections simplify integration with legacy equipment. The platform also offers advanced features such as multi-touch gestures, event scheduling, and comprehensive security options. These capabilities allow the panel to support both simple machine interfaces and regulated applications requiring strict audit trails.

Technical Specifications

Display: 6-inch TFT LCD, 65,536 colors, 320 × 240 (QVGA)
Processor: Intel XScale PXA300, 255 MHz
Memory: 64 MB Flash, 64 MB DRAM, 512 KB SRAM, 512 KB boot loader
Operating System: Windows CE
Software Compatibility: Proficy Machine Edition

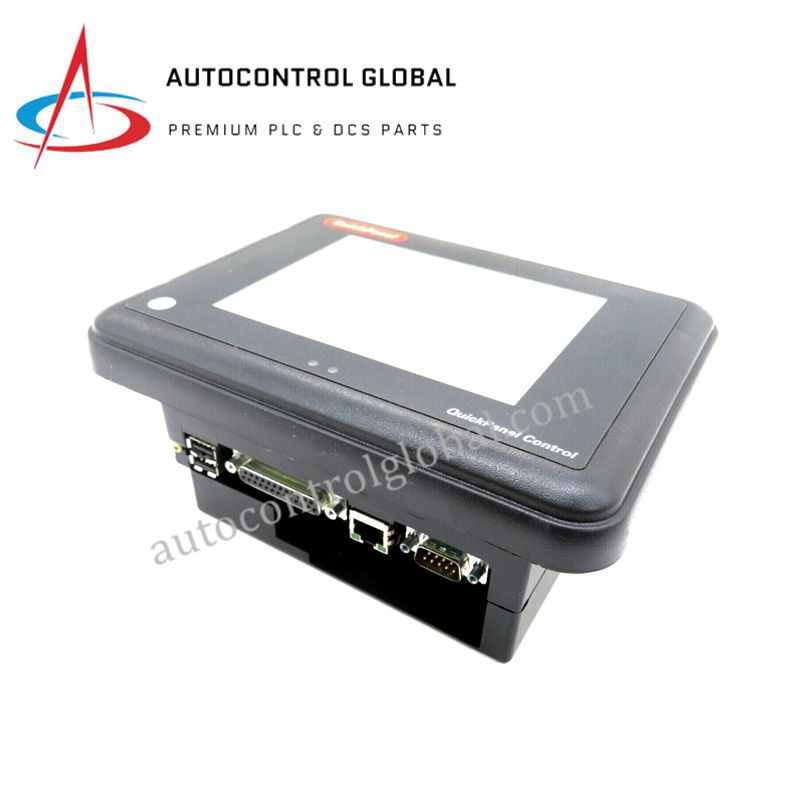

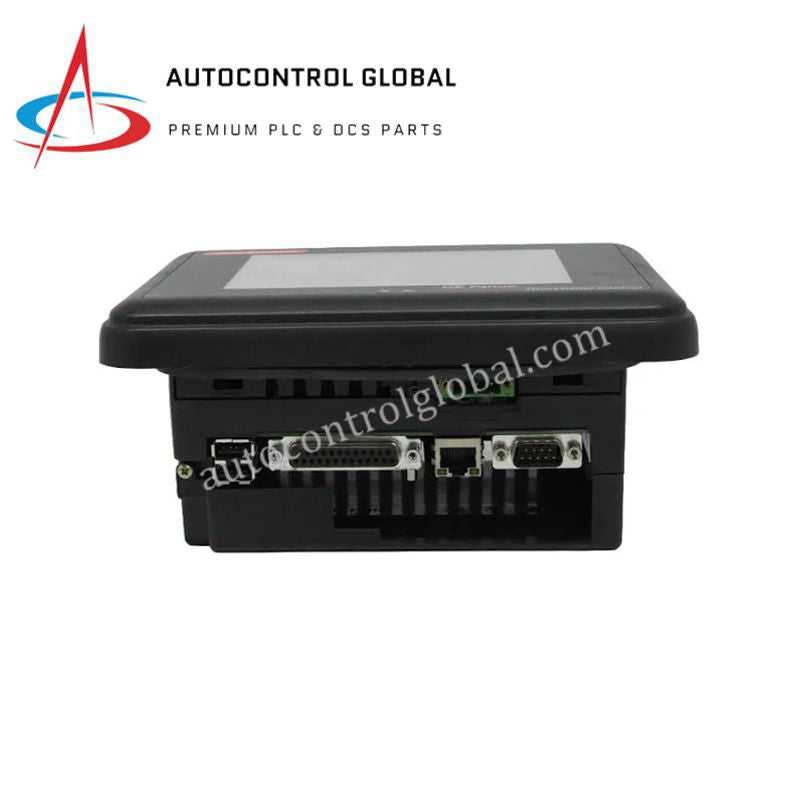

Communication: 2 Ethernet ports, 1 serial combo port (RS-232C/RS-485), 2 USB host ports
Input Power: 24 VDC nominal
Dimensions:100 × 80 × 20 mm
Weight: 2.3 kg (5 lbs)
Environmental Rating: –10 °C to +55 °C operating temperature
Functional Features: Multi-touch, graphics display, reporting, VBScript, ActiveX, 21 CFR Part 11 security

FAQ

Q1: Which software is used to configure the ES0622 QuickPanel?
It is programmed using Proficy Machine Edition for efficient screen and logic design.

Q2: Can this HMI communicate with older PLC hardware?
Yes, the serial combo port supports RS-232C and RS-485 for legacy devices.

Q3: Is the touchscreen suitable for gloved operation?
Most industrial gloves work well due to the responsive multi-touch surface.

Q4: Does it support regulated industries like pharmaceuticals?
Yes, it includes 21 CFR Part 11-capable security and audit features.

Q5: What is the ideal operating temperature range?
It performs reliably between –10 °C and +55 °C.
