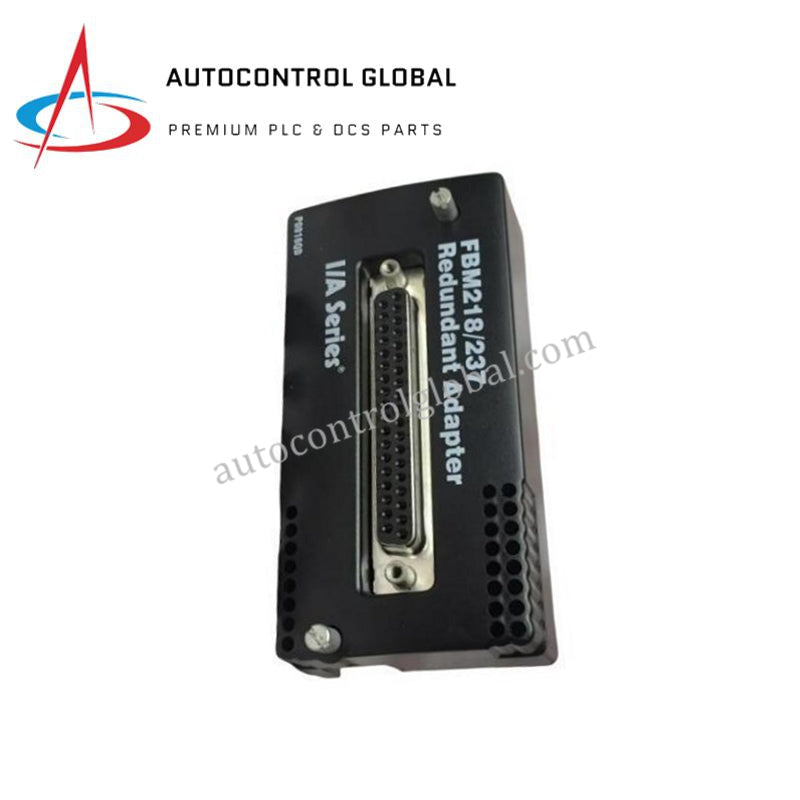

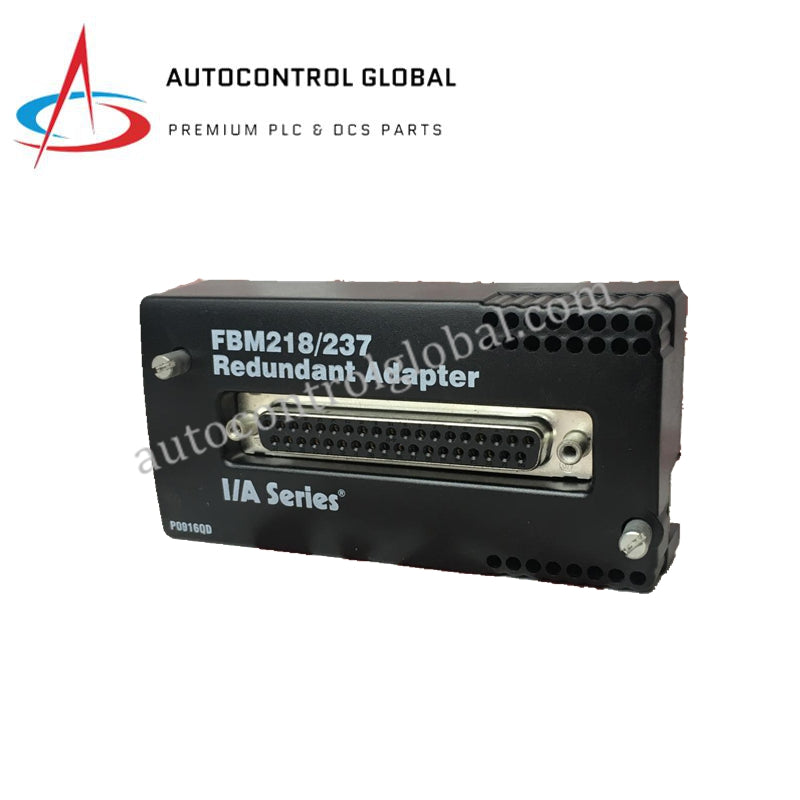

Redundant I/A Series Baseplate | Foxboro P0916QD
Manufacturer: Foxboro
-
Part Number: P0916QD
Condition：New with Original Package
Product Type: Redundant FBM Baseplate Assembly
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
Overview
The Foxboro P0916QD is a redundant baseplate assembly designed for Foxboro I/A Series and Evo™ distributed control systems (DCS). It serves as the mechanical and electrical interface for installing and operating FBM (Fieldbus Modules), providing reliable communication, power distribution, and fault-tolerant operation.
Engineered for critical industrial applications, the P0916QD supports dual FBM installation to maintain continuous operation in case of a module failure. Its robust signal routing and channel isolation protect against electrical interference, ensuring process reliability in oil & gas, petrochemical, chemical, and power generation environments.
Key Features
-
Dual slots for redundant FBM modules to support continuous operation
-
Compatible with FBM217, FBM218, and FBM219 analog input modules
-
Provides regulated power distribution and communication bus connectivity
-
Channel-to-system isolation for high noise immunity and safety
-
Compact and modular design for easy integration into Foxboro racks
-
Supports fault-tolerant operation with built-in diagnostics
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | P0916QD |
| Type | Redundant FBM Baseplate Assembly |
| System Compatibility | Foxboro I/A Series / Evo™ DCS |
| Supported Modules | FBM217, FBM218, FBM219 |
| Slots | Dual FBM installation slots for redundancy |
| Power Distribution | Regulated power supply to modules |
| Signal Routing | Ensures isolation and redundancy for channels |
| Communication Interface | Connects FBMs to system backplane and network |
| Diagnostics | Supports FBM self-test and fault detection |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 63.5 × 124.5 × 307 mm |
| Weight | 0.5 kg |
| Compliance | IEC standards, CE certified |
