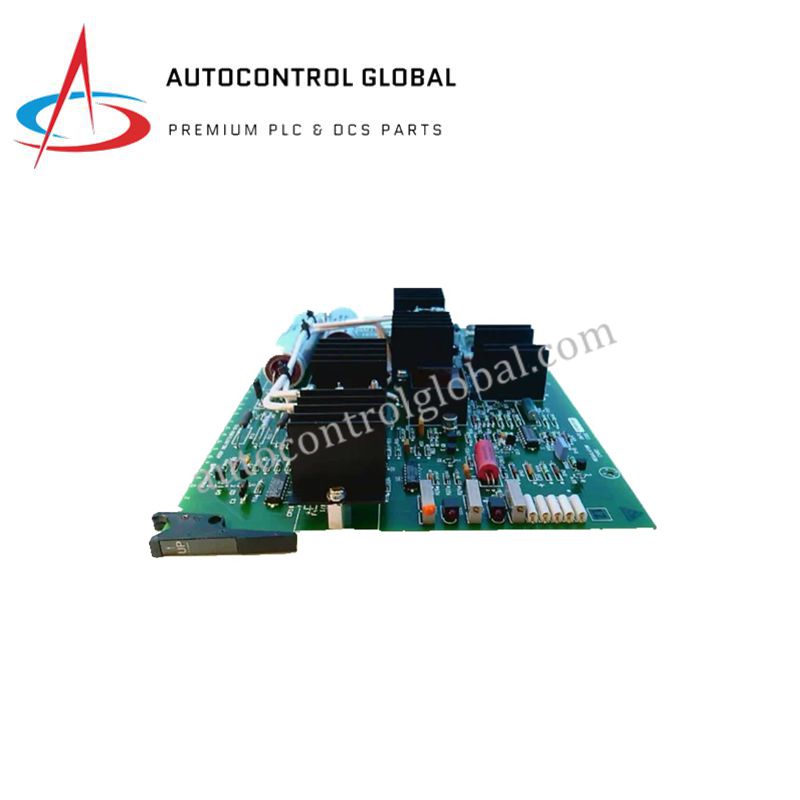

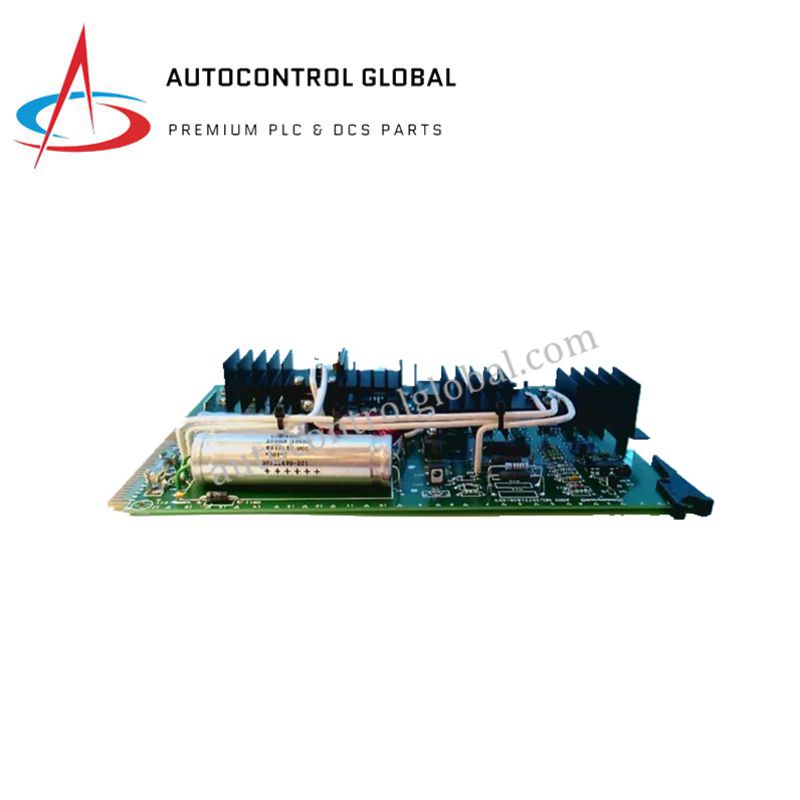

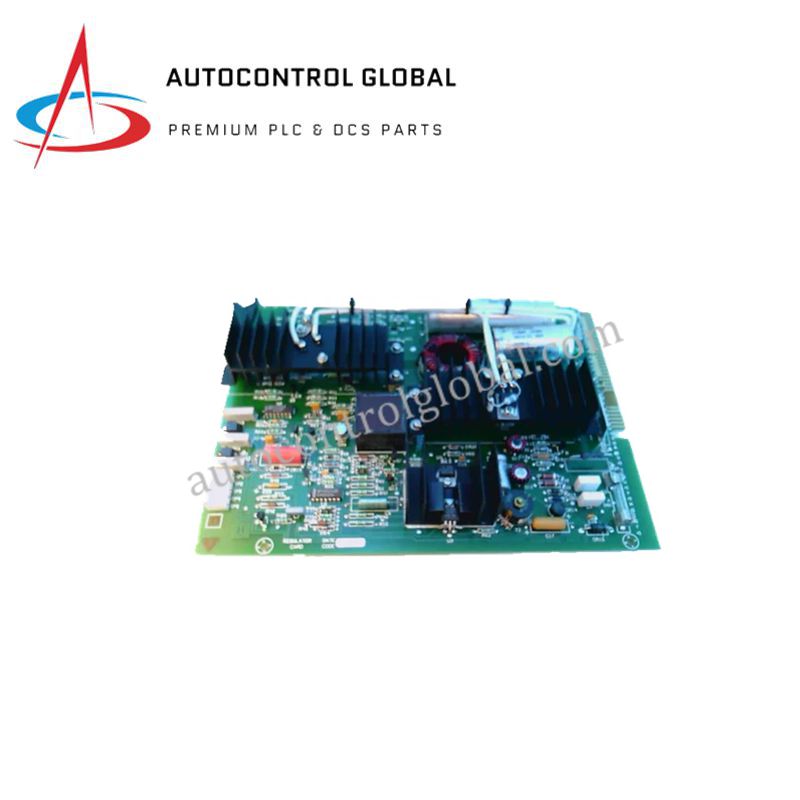

Regulator Card 30731808-503 | Honeywell TDC 2000 Module
Manufacturer: Honeywell
-
Part Number: 30731808-503
Condition：New with Original Package
Product Type: Regulator Card
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The HONEYWELL 30731808-503 is a high-precision Regulator Card designed for TDC 2000 and related Honeywell control systems. It provides stable power delivery and accurate voltage regulation to critical components. This slide-in module features fault detection, removable fuses, and test sockets for calibration, ensuring system reliability in demanding industrial automation environments. EMI/RFI shielding preserves signal integrity, while industrial-grade components guarantee long-term durability.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 30731808-503 |
| Type | Regulator Card |
| System Compatibility | Honeywell TDC 2000 control systems |
| Functionality | Voltage regulation, fault detection, and diagnostics |
| Input Voltage | 24 VDC from backplane |
| Output Voltage | 5 VDC and 12 VDC to chassis |
| Response Time | Fast response for real-time voltage regulation |
| Control Inputs | Configurable for system-specific voltage thresholds |
| Communication Protocol | Honeywell internal control bus |
| Operating Temperature | −20°C to +60°C |
| Dimensions | Standard slide-in module size for TDC 2000 racks |
| Build Quality | Industrial-grade components with EMI/RFI shielding |
| Fuses | 2 removable fuses |
| Test Sockets | Supports fault detection and calibration |
| Weight | 1.51 lbs |
| Certifications | CE marked; meets Honeywell safety and EMC standards |
FAQ
Q1: What voltage inputs and outputs does the 30731808-503 support?
A1: It accepts 24 VDC input from the backplane and outputs 5 VDC and 12 VDC to the chassis.
Q2: Can this module detect faults automatically?
A2: Yes, the regulator card includes test sockets for fault detection and calibration.
Q3: Is the module compatible with other Honeywell systems?
A3: It is designed primarily for TDC 2000 and compatible distributed control systems.
Q4: How is the card installed?
A4: The 30731808-503 is a slide-in module that fits standard TDC 2000 racks.
Q5: What environmental conditions can it operate in?
A5: It functions reliably between −20°C and +60°C and is shielded against EMI/RFI.
