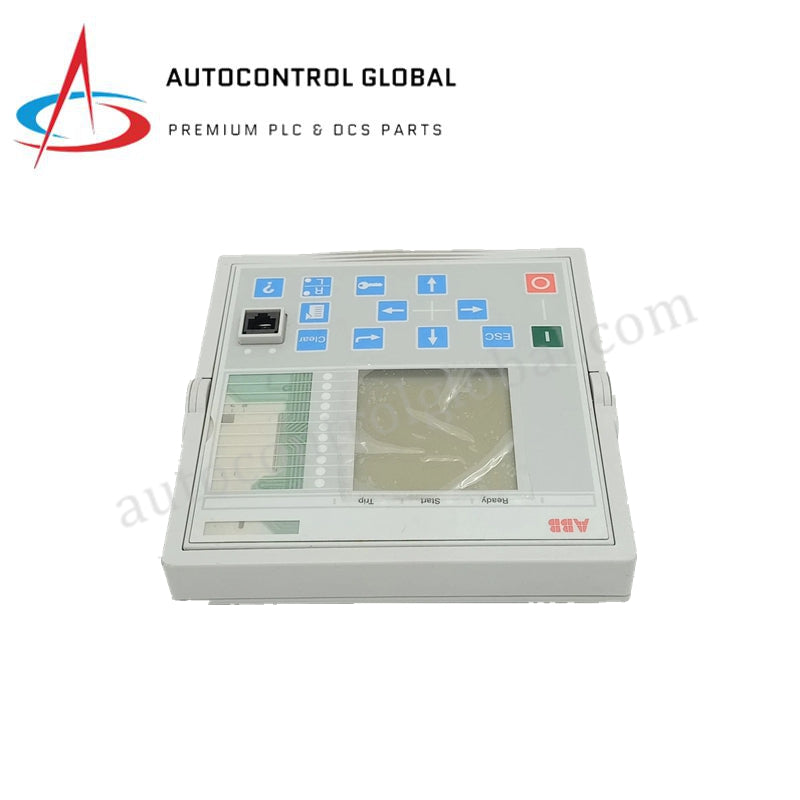

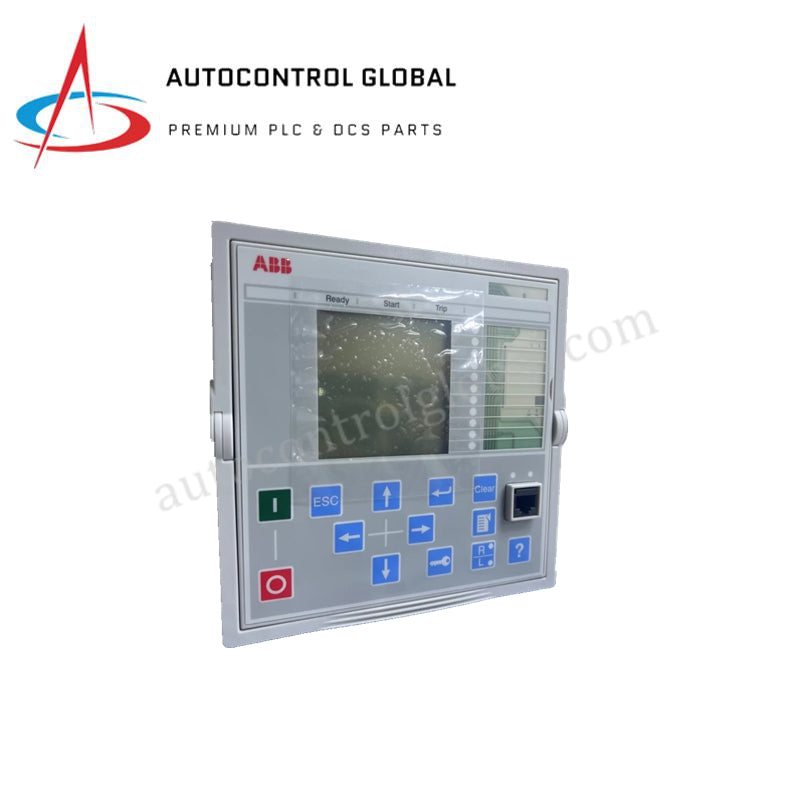

Relay 12-Channel Input Interface | DIS0006 ABB REF615

Product Overview

The ABB DIS0006 (Part Number: 2RAA005802A0003G) serves as a high-precision digital signal acquisition interface for ABB’s Relion series protection relays. This brand-new, original module enables real-time monitoring of critical switchgear status, sensor outputs, and control signals. Specifically engineered for the REF615, RET615, REM615, and RED615 relay platforms, the DIS0006 converts field-side physical contacts into digital data for protection logic and event logging. It provides the high-speed detection necessary for fault analysis and automated substation maneuvers, ensuring the stability of medium-voltage distribution networks.

Technical Specifications

The DIS0006 utilizes robust isolation and high-speed processing to maintain the following parameters:

Engineering Advantages

The ABB DIS0006 solves the challenge of signal integrity in high-EMI substation environments. Switchgear operations generate massive electromagnetic surges that can damage sensitive electronics; the DIS0006 mitigates this risk through 2 kV AC isolation between the field inputs and the relay’s internal system electronics. This galvanic barrier ensures that ground loops or voltage spikes do not compromise the protection relay's primary logic.

With a 5 ms response time, the module captures rapid transients such as breaker trip-coil activations or auxiliary relay transitions. This speed allows the REF615 relay to accurately time-stamp events for post-fault forensic analysis. The wide 24-250 VDC input range provides unparalleled flexibility, allowing a single module type to interface with various battery systems and control voltages used across different utility grids. Furthermore, the compact 1.5W low-power design minimizes the thermal load inside sealed electrical panels, promoting long-term component reliability and allowing for high-density mounting on standard DIN rails.

FAQs

Which ABB protection relays support the DIS0006 module?

The DIS0006 integrates seamlessly with the ABB Relion 615 series, including the REF615 (Feeder Protection), RET615 (Transformer Protection), REM615 (Motor Protection), and RED615 (Line Differential Protection) relays.

Can I mix different voltages across the 12 input channels?

Yes. Each of the 12 digital inputs functions within the 24 to 250 VDC range. While the module handles a broad spectrum, always ensure that your field wiring maintains proper separation and adheres to the relay's specific wiring diagram to prevent crosstalk between channels.

How does the DIS0006 contribute to fault analysis?

The module’s 5ms response time enables high-resolution Sequence of Events (SOE) recording. When a breaker trips, the DIS0006 captures the exact millisecond the status changed, allowing engineers to reconstruct the fault timeline within the relay’s diagnostic software.

Is the DIS0006 suitable for renewable energy installations?

Absolutely. The module's wide temperature range (–25°C to +70°C) and robust isolation make it ideal for the demanding conditions found in wind turbine nacelles and solar plant distribution stations, where temperature swings and electrical noise are common.
