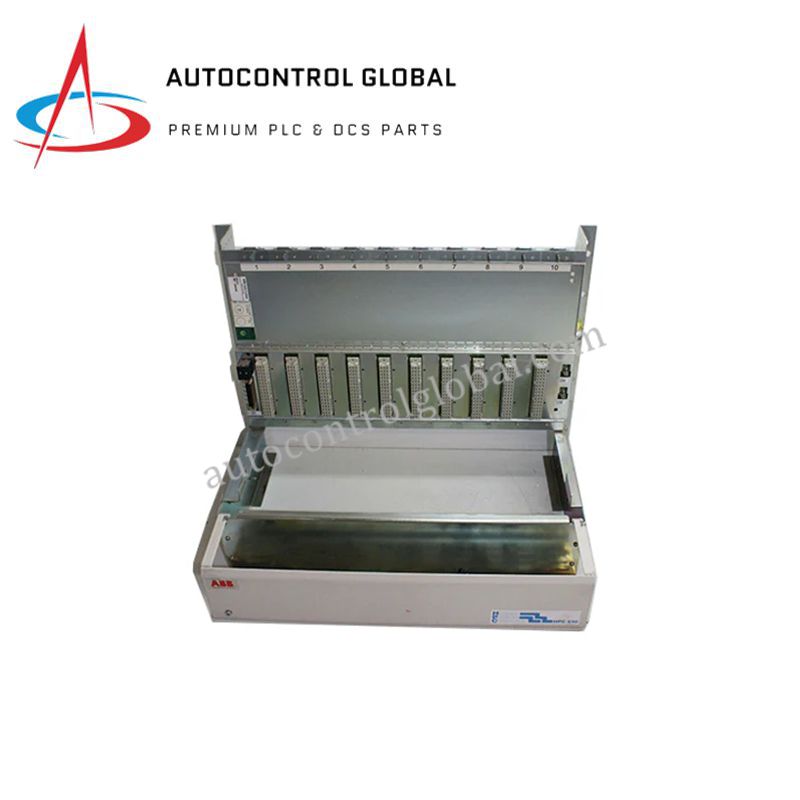

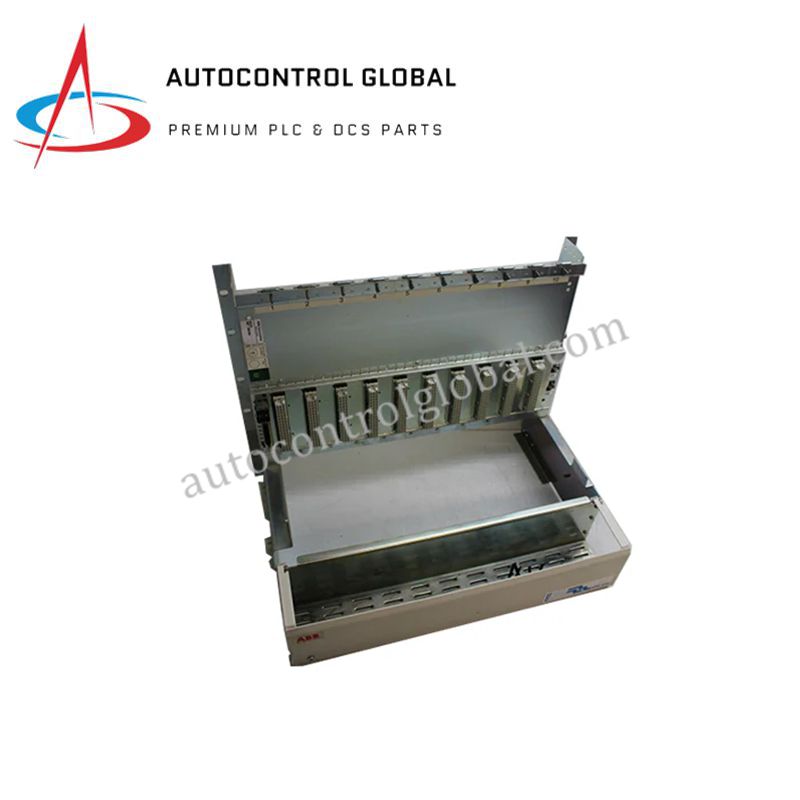

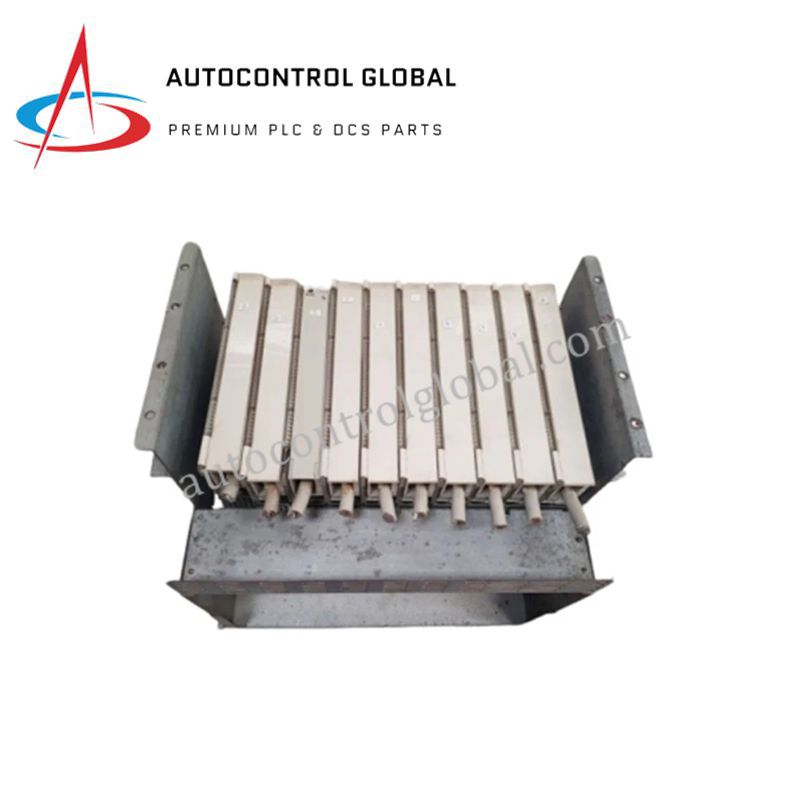

RF615 ABB | Industrial Automation Base Backplane 3BHT100010R1

  • Manufacturer: ABB

  • Part Number: RF615 3BHT100010R1

  • Condition:New with Original Package

  • Product Type: Industrial Automation Base Backplane

  • Country of Origin: Sweden

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

ABB RF615 Base Backplane Module

Overview

The ABB RF615 is a base backplane module designed for the Advant Controller 100 series, providing 10 module slots for central integration of I/O, communication, and processing units.
It serves as the electrical and structural backbone of the system, distributing both power and data across all connected modules with exceptional stability and precision.

Built with industrial-grade durability, the RF615 ensures consistent performance in harsh environments.
Its modular design allows scalable automation configurations, making it a trusted choice for large control cabinets and distributed control setups.

Technical Specifications

Specification Details
Model Number RF615
Part Number 3BHT100010R1
Product Type Base Backplane
Slot Capacity 10 module slots
System Compatibility Advant Controller 100 series
Dimensions (W × H × D) 245.7 mm × 84.6 mm × 470.7 mm
Weight 3 kg
RoHS Compliance Exempt under EU Directive 2011/65/EU Article 2 (4) (c), (e), (f), (j)
WEEE Category Category 5 – Small Equipment (No external dimension > 50 cm)
HS Code 85389091
Country of Origin Sweden
Application Areas Central control unit integration, industrial automation systems

FAQs

Q1: How many module slots does the ABB RF615 support?
✅ The RF615 offers 10 slots, suitable for I/O, communication, and processing modules.

Q2: Which ABB systems is this backplane compatible with?
✅ It is designed for the Advant Controller 100 series.

Q3: What are the dimensions and weight of the RF615?
✅ The module measures 245.7 × 84.6 × 470.7 mm and weighs 3 kg.

Q4: Is the ABB RF615 RoHS compliant?
✅ It is exempt under EU Directive 2011/65/EU, Articles 2 (4) (c), (e), (f), (j).

Q5: How fast can this product be delivered?
✅ We have spot stock available. Orders typically ship within 3 days – 2 weeks, depending on size and logistics (e.g., DHL).
