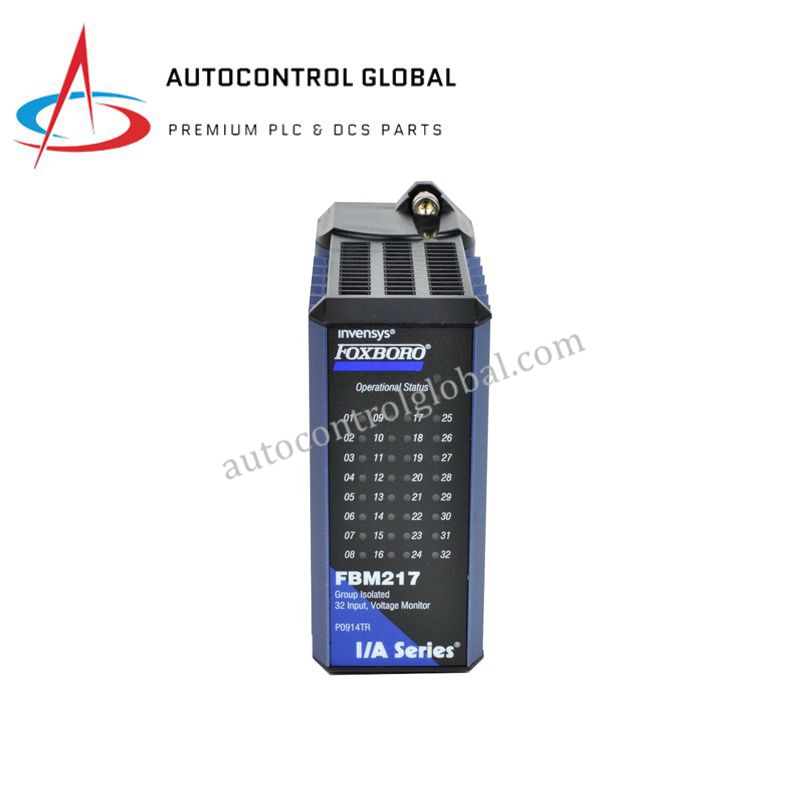

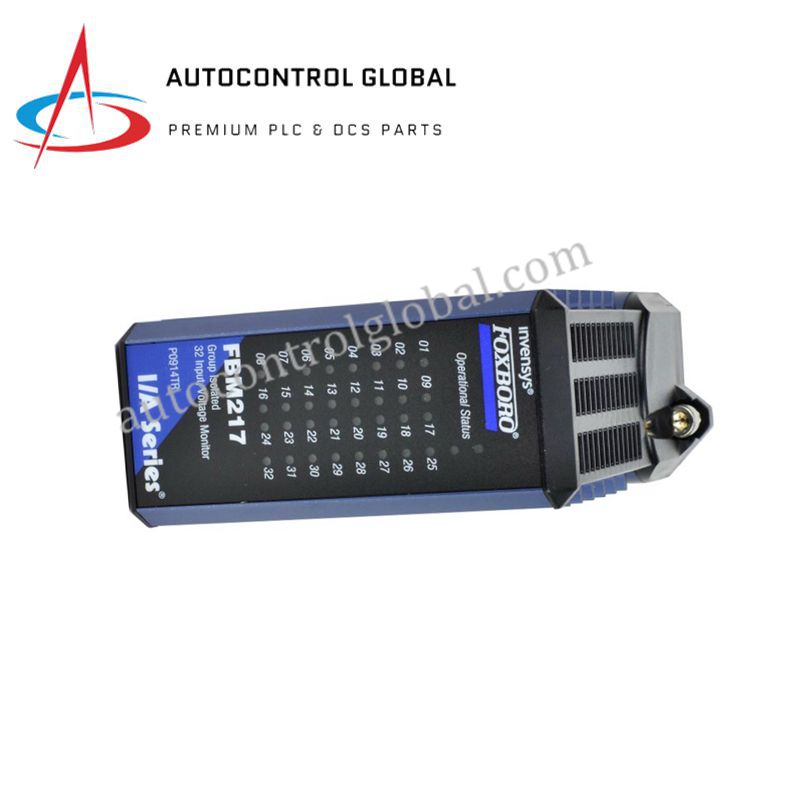

RH916XZ FBM217 | Foxboro | Compact Discrete Input Module
Manufacturer: Foxboro
-
Part Number: FBM217 RH916XZ
Condition：New with Original Package
Product Type: Compact Discrete Input Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
Module Overview
The Foxboro FBM217 RH916XZ is a high-density compact discrete input module designed for the Foxboro I/A Series and Evo™ distributed control systems. It is engineered to acquire 32 DC discrete signals from field devices such as switches, proximity sensors, and contact closures, and transmit reliable status data to the control system via a redundant Fieldbus.
This module supports robust signal integrity and high operational reliability in mission-critical environments, including oil & gas, petrochemical, chemical, and power generation facilities.
Signal Processing Capabilities
The FBM217 (RH916XZ) provides 32 group-isolated input channels, ensuring strong immunity to electrical noise and protection against ground loops. Each channel detects on/off states with configurable filtering to mitigate contact bounce. The module supports fast pulse detection up to 250 Hz and configurable debounce times, enabling precise capture of rapidly changing signals.
Communication with the associated FCM or FCP modules is handled through a redundant 2 Mbps Fieldbus interface, ensuring continuous operation even in the event of a module fault.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | Foxboro FBM217 RH916XZ |
| Product Type | Compact Discrete Input Module |
| Input Channels | 32 group-isolated channels |
| Nominal Input Voltage | 24 VDC (+5%, −10%) |
| On-State Voltage | 15–30 VDC |
| Off-State Voltage | 0–5 VDC |
| Typical Input Current | 2.2 mA at 30 VDC |
| Source Resistance | On ≤1 kΩ, Off ≥100 kΩ |
| Configurable Debounce | 0, 4, 8, 16, 32 ms |
| Maximum Pulse Frequency | 250 Hz |
| Power Consumption | 3 W max |
| Communication Interface | Redundant 2 Mbps Fieldbus |
| Operating Temperature | −20 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Dimensions (HxWxD) | 10.2 × 11.4 × 4.5 cm |
| Weight | 0.8kg |
| Compliance | IEC standards, CE certified |
Key Features
-
32 group-isolated DC input channels for reliable signal acquisition.
-
Configurable debounce to suppress electrical noise and contact bounce.
-
Redundant Fieldbus communication for continuous operation and fault tolerance.
-
High pulse detection capability up to 250 Hz for fast signal monitoring.
-
Compact design allows integration into crowded control racks.
-
Robust channel-to-channel and channel-to-system isolation.
Considerations
-
Application-specific: Designed for discrete DC signal acquisition; not suitable for analog or HART-enabled transmitters.
-
Lifecycle: The FBM217 RH916XZ is part of Foxboro’s established Evo™ platform; verify compatibility with existing I/A Series installations.
-
Maintenance: Correct shielding and grounding are essential to maintain accurate signal detection and system reliability.
