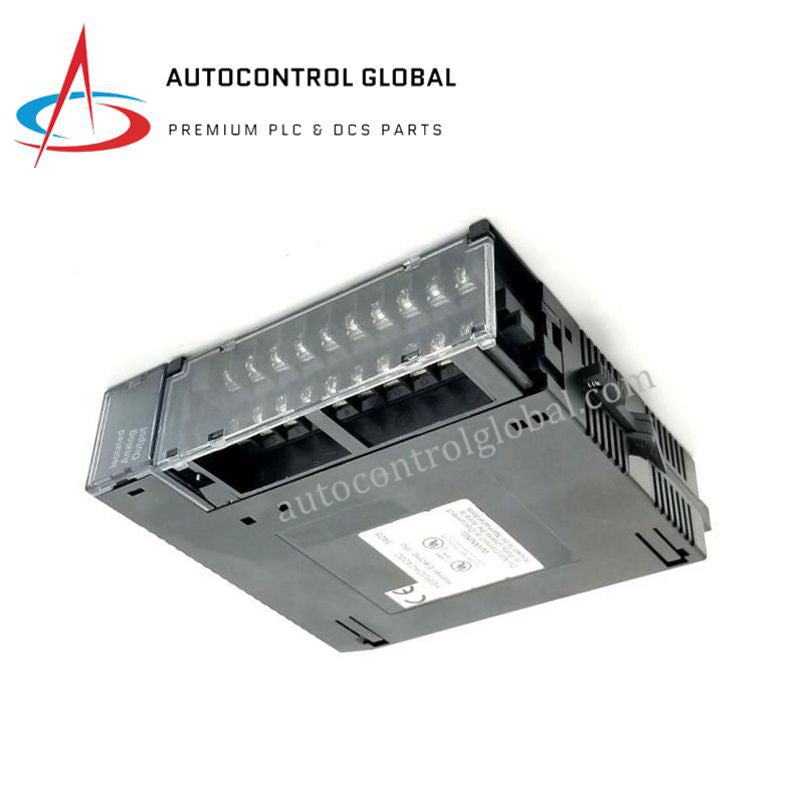

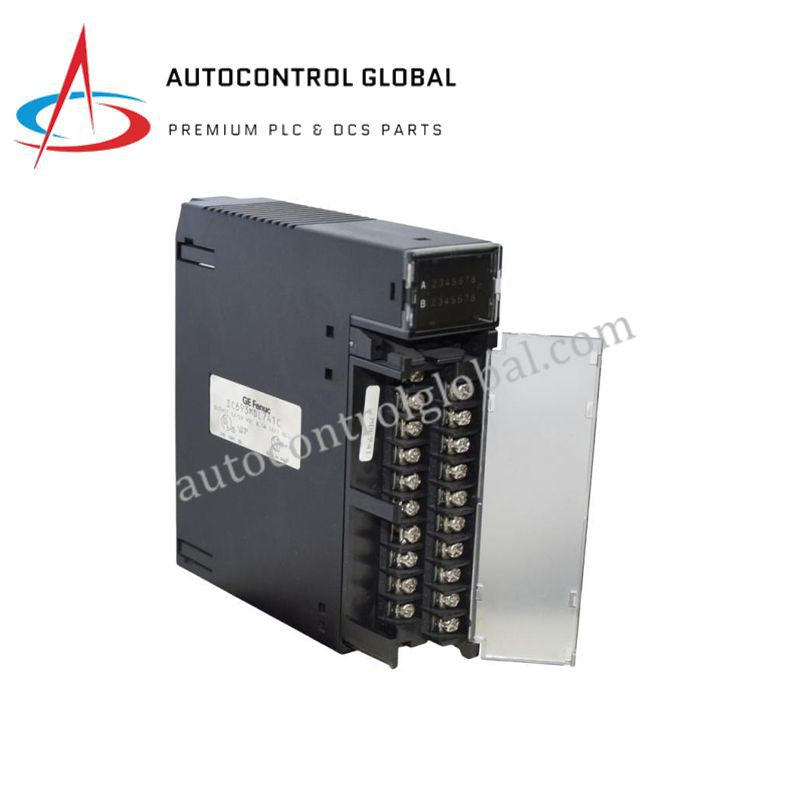

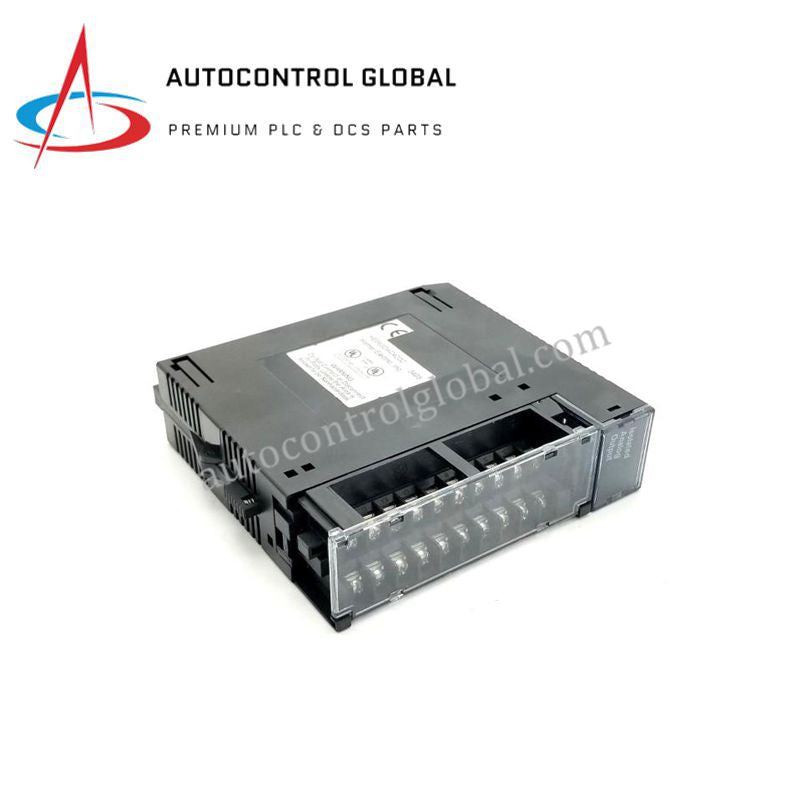

RX3i Module GE IC695ALG616-DA | Current and Voltage Input Card

GE IC695ALG616-DA Analog Input Module – Product Description

Product Summary

The GE IC695ALG616-DA is a versatile non-isolated analog input module engineered for PACSystems RX3i platforms used in modern industrial control environments. It supports both current and voltage signal ranges, allowing plants to integrate diverse sensors without additional hardware. Moreover, its 24-bit conversion engine delivers precise measurement accuracy, enabling operators to maintain tighter process control. This module also suits retrofit or refurbished system upgrades where performance, compatibility, and long-term reliability are required.

Technical Specifications

General Information

• Manufacturer: GE / Emerson Automation

• Model Number: IC695ALG616-DA

• Product Type: Non-isolated Analog Input Module

• Series: PACSystems RX3i

• Weight: 0.7 kg

Input Channels

• 16 single-ended inputs

• 8 differential inputs

• Software-configurable channel mode

Supported Signal Types

• Current: 0–20 mA, 4–20 mA, ±20 mA

• Voltage: ±10 V, 0–10 V, ±5 V, 0–5 V, 1–5 V

Conversion & Performance

• 24-bit ADC resolution

• High-speed patented conversion engine

• Fast throughput for real-time monitoring

Diagnostics

• Input fault detection

• Channel-health reporting to CPU

• LED indicators for module and channel status

Power & Mechanical

• Typical consumption: 34 mA @ 5 VDC

• Dimensions: 145 × 140 × 34 mm

• RX3i rack-mounted module

Environmental Ratings

• Operating temperature: 0 °C to +60 °C

• Storage temperature: –40 °C to +85 °C

• Humidity: 5–95% non-condensing

• Vibration: 27G for 2 ms

Certifications

• UL, UL HazLoc

• CE, ATEX Zone 2

• ABS, BV, DNV, GL, KRS, LR

FAQ

1. What signals does the IC695ALG616-DA support?
It accepts both current and voltage signals, including 4–20 mA and ±10 V ranges.

2. Can I configure channel modes without jumpers?
Yes, all configuration is handled in software for simpler commissioning.

3. Does the module offer diagnostic functions?
It provides signal monitoring, fault reporting, and LED status indication.

4. Is this module suitable for hazardous locations?
Yes, it carries ATEX Zone 2 and multiple marine approvals.

5. Can it replace older RX3i analog modules?
It fits standard RX3i racks and supports both new and refurbished system upgrades.
