S800 I/O Extension Cable | ABB TK801V012 3BSC950089R3
Manufacturer: ABB
-
Part Number: 3BSC950089R3 TK801V012
Condition：New with Original Package
Product Type: Cable Assemblies
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

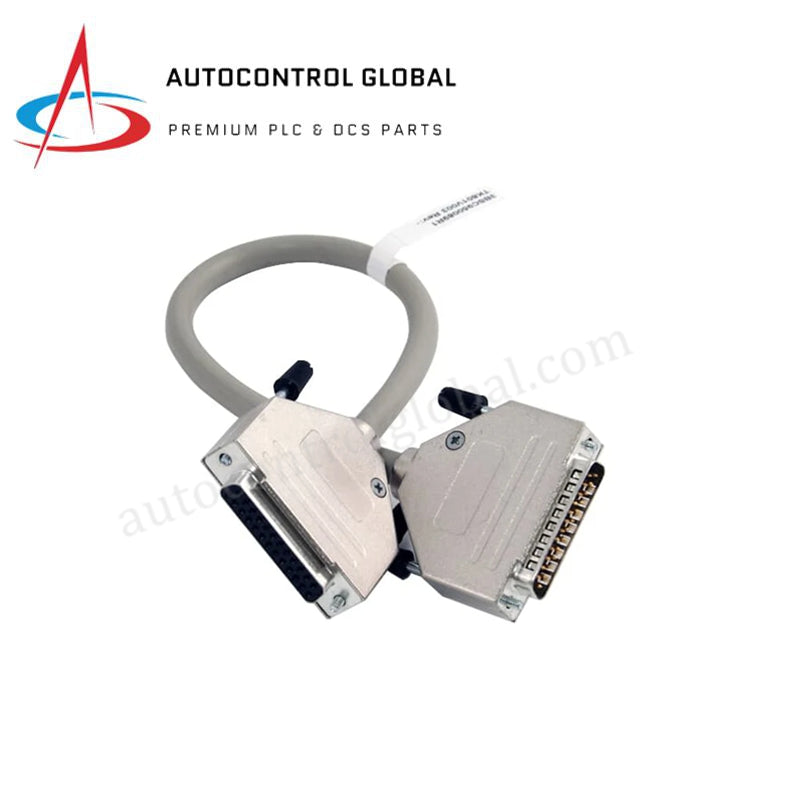

ABB TK801V012 3BSC950089R3 ModuleBus Extension Cable
The ABB TK801V012 (part number 3BSC950089R3) is a 1.2-meter shielded ModuleBus extension cable designed for the ABB S800 I/O system. It enables the extension of the electrical ModuleBus across multiple DIN rails within control cabinets, allowing I/O stations to be mounted on separate rails while maintaining a continuous communication link.
Interfacing and Hardware Compatibility
The cable assembly is prefabricated and terminated with D-sub 25 male-to-female connectors for direct plugin installation. It interfaces seamlessly with bus optical/electrical transition modules and termination units, including the TB805, TB845, TB806, and TB846, to support flexible layout configurations across System 800xA topologies.
Signal Integrity and Mechanical Construction
To safeguard low-level communication signals against industrial electromagnetic interference, the cable features built-in shielding along its 1.2-meter length. The assembly carries a shipping weight of 2 kg and is classified under HS Code 854442 for insulated electrical conductors fitted with connectors.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | TK801V012 |
| Brand | ABB |
| Part Number | 3BSC950089R3 |
| Product Type | ModuleBus Extension Shielded Cable |
| Cable Length | 1.2 m |
| Connector Type | D-sub 25, male-to-female |
| System Compatibility | ABB S800 I/O, System 800xA |
| Module Interfacing | Compatible with TB805, TB845, TB806, TB846 |
| Shielding | Shielded |
| Shipping Weight | 2 kg |
| HS Code | 854442 |
Frequently Asked Questions
Q: What is the primary purpose of the ABB TK801V012 extension cable? A: It connects S800 I/O modules located on different DIN rails to the same electrical ModuleBus network.
Q: What connector types and cable lengths are provided on the TK801V012? A: The prefabricated shielded cable is 1.2 meters long and uses D-sub 25 male-to-female connectors.
