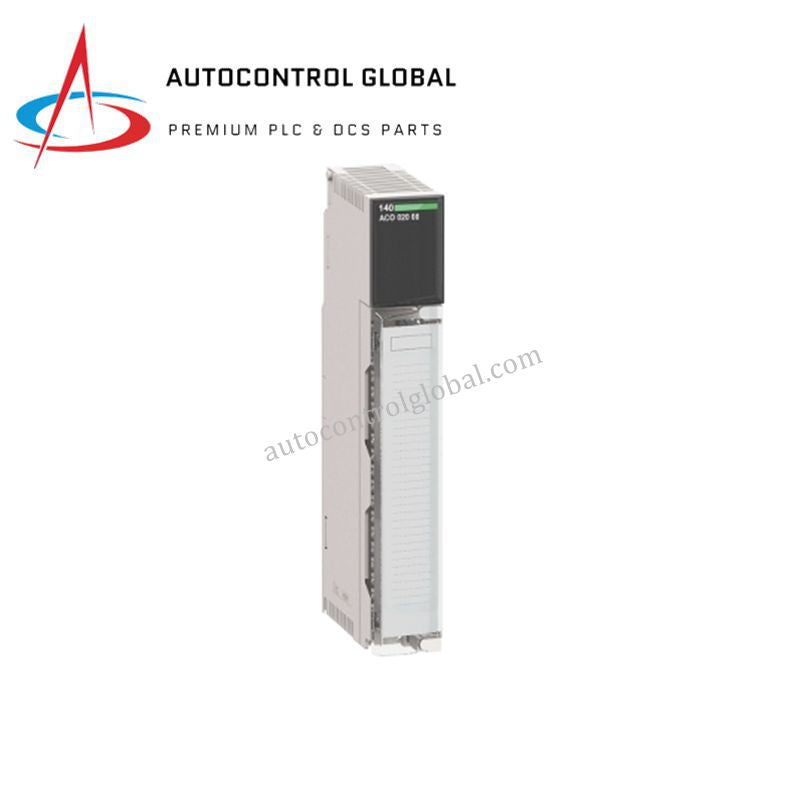

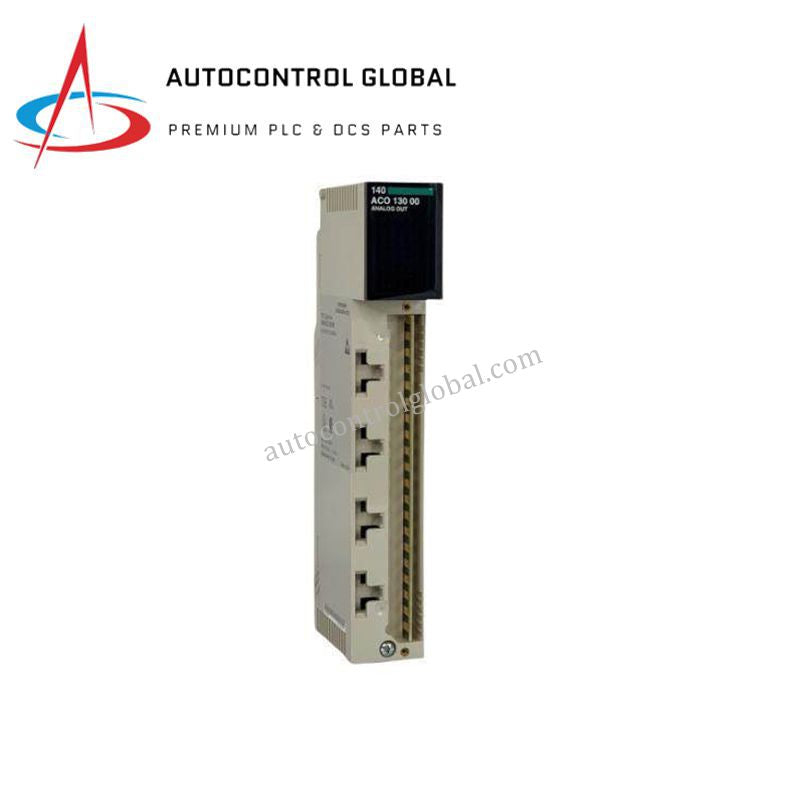

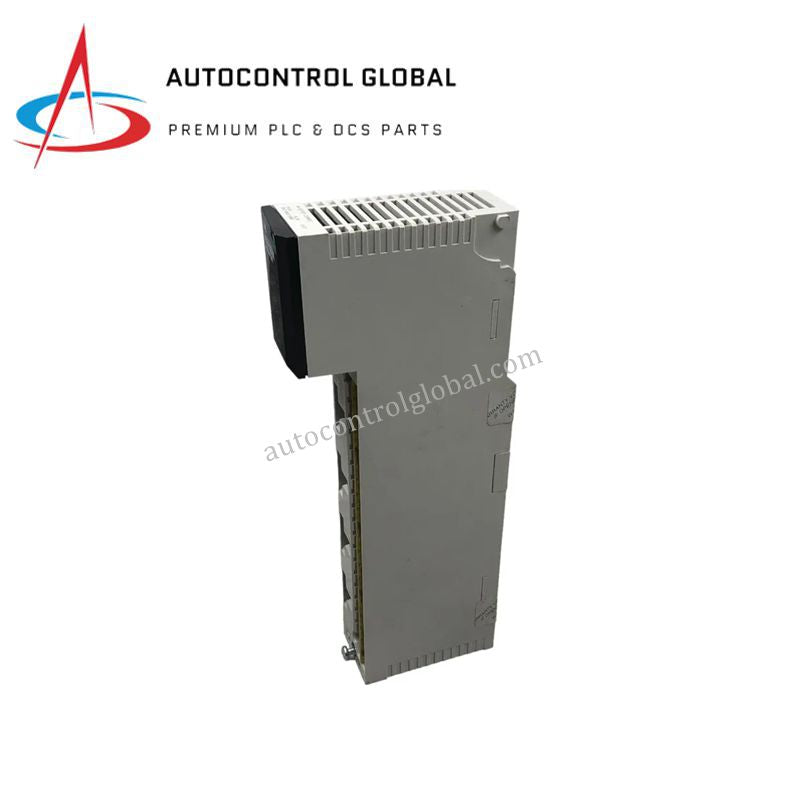

Schneider 140AC013000 PLC Module | Quantum Series Control
Manufacturer: Schneider
-
Part Number: 140AC013000
Condition：New with Original Package
Product Type: PLC module (digital/analog/motion control)
-
Country of Origin: France
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Schneider 140AC013000 Modicon Quantum Module – Product Description
Description / Overview
The Schneider 140AC013000 is a versatile control module built for the Modicon Quantum automation platform, delivering reliable performance in complex industrial environments. It integrates digital, analog, and motion-control functions, allowing engineers to manage mixed-signal processes with a single hardware unit. Moreover, its strong EMC resistance and global certifications make it suitable for demanding applications where electrical noise and harsh operating conditions are common. The module also supports modern development workflows through Unity Pro, Concept, and ProWORX 32, enabling efficient configuration and streamlined diagnostics.
Technical Data / Specifications
| **Parameter | Details** |
|---|---|
| Model | Schneider 140AC013000 |
| Platform | Modicon Quantum |
| Type | PLC module (digital/analog/motion control) |
| Power Consumption | 2 W |
| Digital I/O | Supports 24 VDC discrete inputs and relay/transistor outputs |
| Analog I/O | 0–20 mA, 4–20 mA ranges for continuous process signals |
| Pulse Output | For motor and motion-control applications |
| Encoder Input | Provides closed-loop position or velocity feedback |
| Processing Speed | 574 μs, depending on configuration |
| Isolation | Electrical isolation between channels |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | −40°C to 70°C |
| Structure | Modular, standard Quantum format |
| Certifications | UL 508, CSA 22.2-142, FM Class 1 Div.2, ATEX Zone 2/22 |
| Origin | France or USA (varies by batch) |
| Package Height | 1.89 in (4.80 cm) |
| Package Width | 6.575 in (16.70 cm) |
| Package Length | 12.402 in (31.50 cm) |
| Package Weight | 15.45 oz (438 g) |
FAQ
1. What programming software supports the 140AC013000?
It works with Unity Pro, Concept, and ProWORX 32, allowing flexible engineering workflows.
2. Can this module handle both digital and analog signals?
Yes, it supports 24 VDC digital I/O as well as industry-standard 0–20 mA and 4–20 mA analog inputs.
3. Does the module support motion control?
It includes pulse output and encoder input for applications requiring position or speed feedback.
4. Is the module approved for hazardous environments?
Yes, it is certified for UL, CSA, FM Class 1 Div 2, and ATEX Zone 2/22 installations.
5. What is the typical operating temperature range?
The unit operates from 0°C to 55°C and stores safely at −40°C to 70°C.
