Product Description

Overview

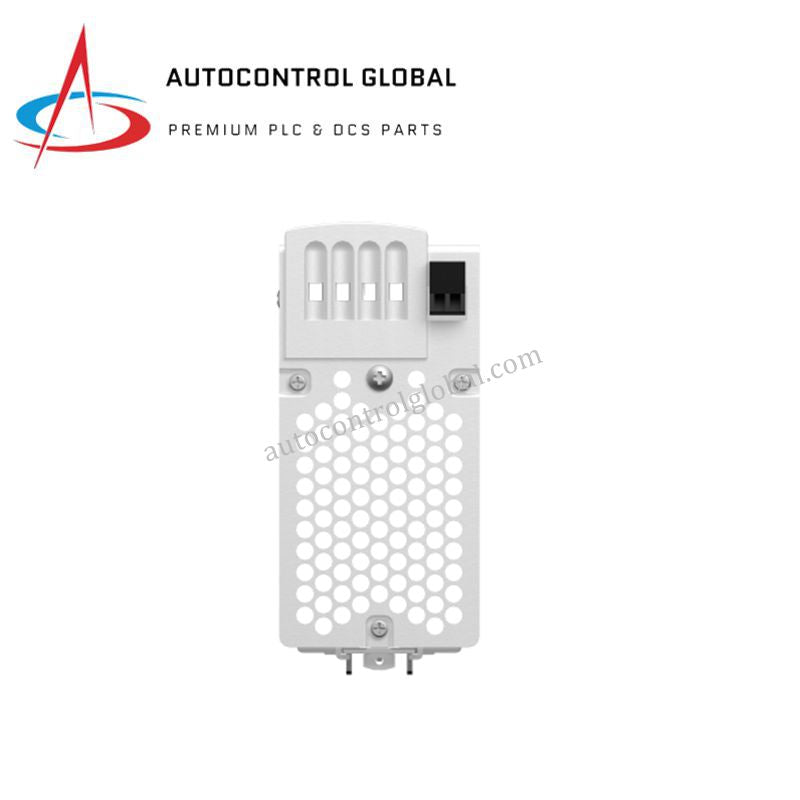

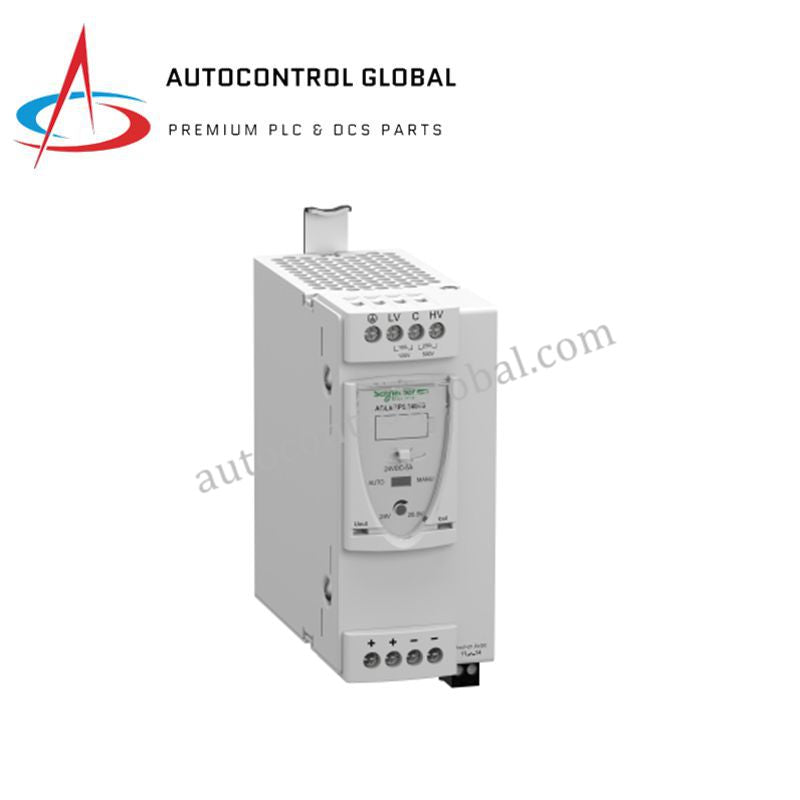

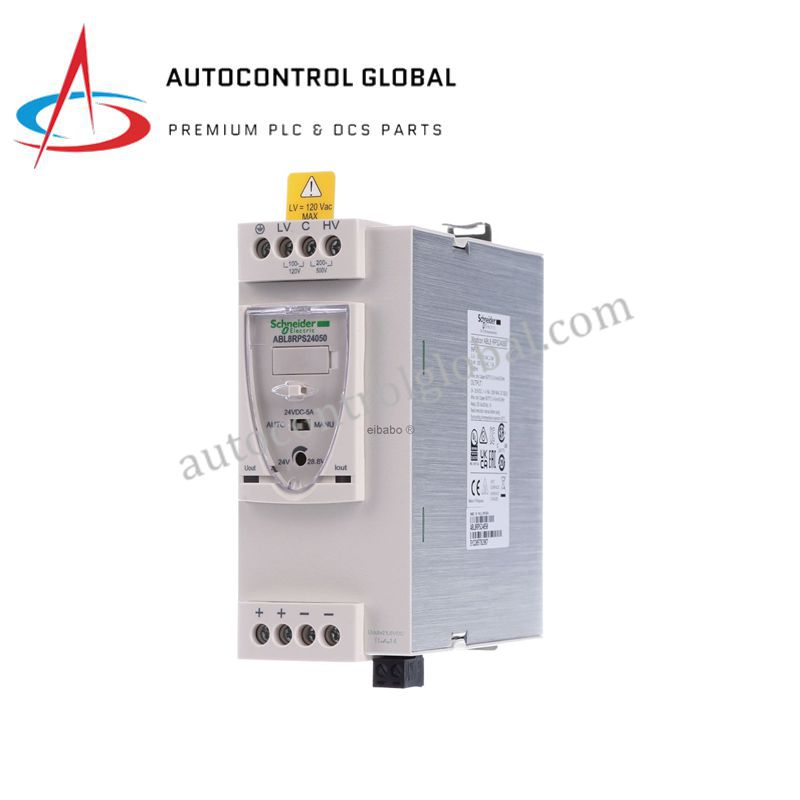

The Schneider Electric ABL8RPS24050 is a high-performance regulated switch-mode power supply delivering 24 V DC output at 5 A, providing 120 W of stable power. Designed for industrial automation, process control, and energy systems, it ensures reliable voltage for PLCs, sensors, actuators, and other industrial devices. Its compact housing allows easy DIN rail or panel mounting, simplifying installation in control panels and automation cabinets. Moreover, the robust design ensures operational safety under varying industrial conditions.

Technical Specifications

Parameter — Details
Product Type — Regulated switch-mode power supply
Nominal Input Voltage — 100–120 V AC (single-phase), 200–500 V AC (phase-to-phase), 110–220 V DC
Input Voltage Limits — 85–132 V AC, 170–550 V AC
Rated Power — 120 W
Output Voltage — 24 V DC (adjustable 24–28.8 V)
Output Current — 5 A
Permissible Temporary Current Boost — 1.5 × In (for 4 s)
Anti-Harmonic Filter — Low frequency harmonic currents
Inrush Current — 30 A
Power Factor — 0.51 at 240 V AC, 0.59 at 120 V AC
Efficiency — 87 %
Power Dissipation — 15.5 W
Operating Temperature — –20 to +45 °C (no derating), up to +60 °C with derating
Storage Temperature — –40 to +85 °C
Mounting Options — DIN rail or panel
Output Coupling — Parallel or series
Dimensions — Width: 56 mm, Depth: 125 mm, Height: 143 mm
Net Weight — 0.7 kg
Marking — CE

FAQ

Q1: What is the rated output power of ABL8RPS24050?
A1: It delivers 120 W continuous output at 24 V DC with a 5 A current.

Q2: Can it be mounted on DIN rails?
A2: Yes, it supports both DIN rail and panel mounting for flexible installation.

Q3: Does it provide protection against short-circuit and overload?
A3: Yes, built-in protection with automatic reset ensures safe operation.

Q4: Is the output voltage adjustable?
A4: Yes, the output voltage can be adjusted from 24 to 28.8 V DC.

Q5: What is the efficiency of this power supply?
A5: It operates at approximately 87% efficiency, reducing energy loss and heat.
