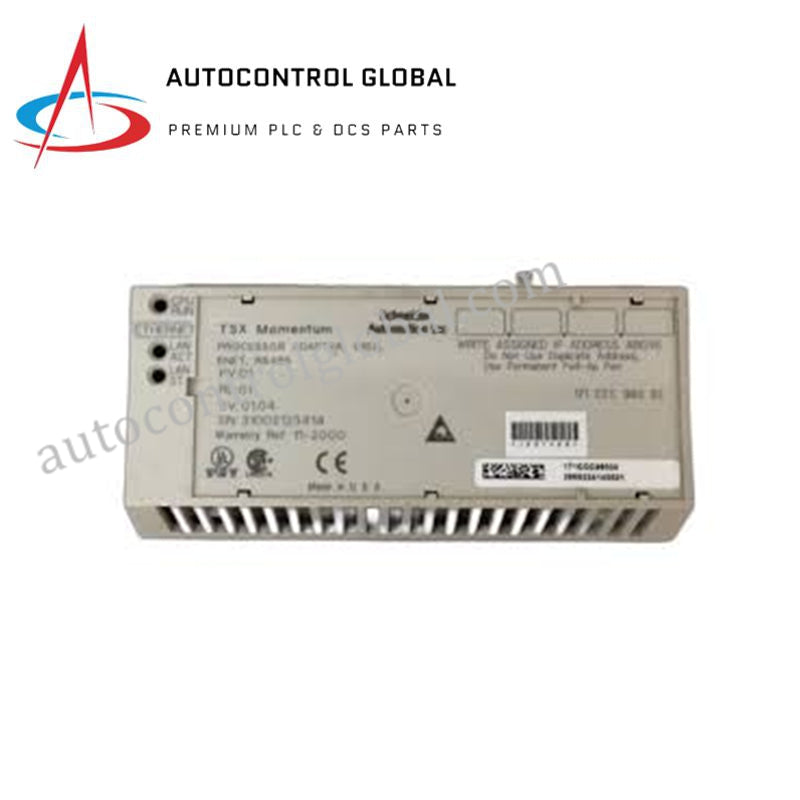

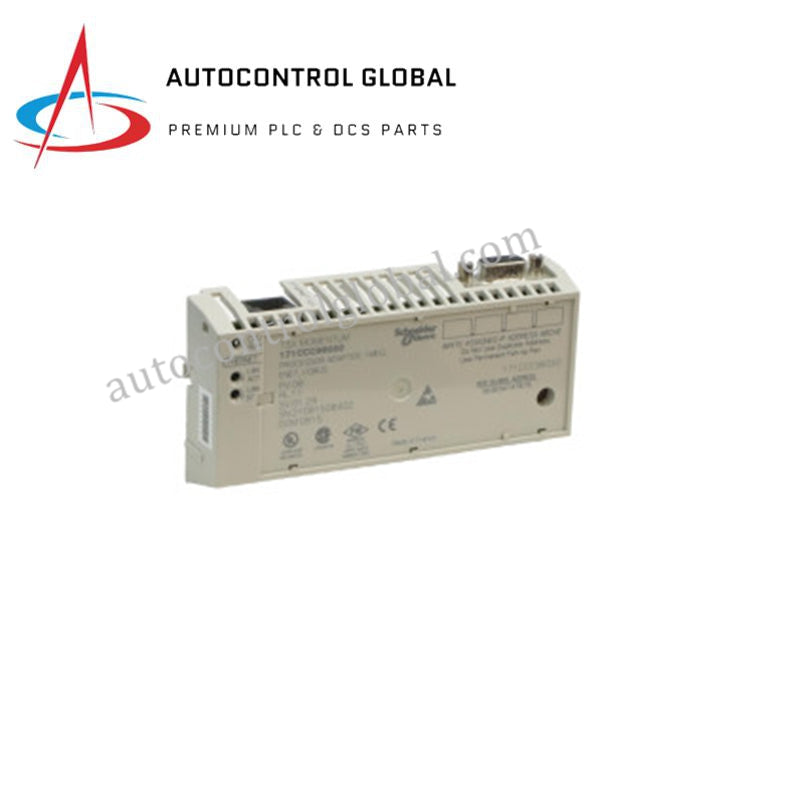

Schneider Electric Momentum Ethernet Processor 171CCC96030

Product Overview

The 171CCC96030 is an Ethernet-enabled processor adapter developed by Schneider Electric for the Modicon Momentum automation platform. Designed as an M1/M1E CPU interface, this module provides control execution, network communication, and I/O coordination for distributed automation systems that rely on Momentum I/O bases.

Built on a high-performance x86 processing core, the adapter integrates Ethernet connectivity directly into the Momentum architecture. This allows control systems to exchange data over Modbus TCP while supporting remote diagnostics and browser-based monitoring functions

Technical Specifications

• Model: 171CCC96030

• Product Type: M1/M1E Processor Adapter

• Manufacturer: Schneider Electric

• Automation Platform: Modicon Momentum

• Processor Architecture: x86-based (Intel / AMD)

• Clock Speed: 50 MHz

• Communication Interfaces:

• 1 × Ethernet (Modbus TCP)

• 1 × Momentum I/O bus

• Discrete I/O Capacity: up to 8192 inputs / 8192 outputs

• Register I/O Capacity: up to 26,048 inputs / outputs

• I/O Words per Drop:

• 128 words (Concept)

• 80 words (ProWORX)

• Program Memory:

• 18 kB LL984

• 200 kB IEC

• Data Memory: 24 kB

• Memory Hardware: 1 MB Flash, 544 kB RAM

• Word Length: 16-bit

• Supply Voltage: 5 V DC via Momentum base

• Typical Instruction Time: 1 ms per 1K instructions

• Housing Material: Lexan

• Compliance: CE marked

• Net Weight: 0.042 kg
