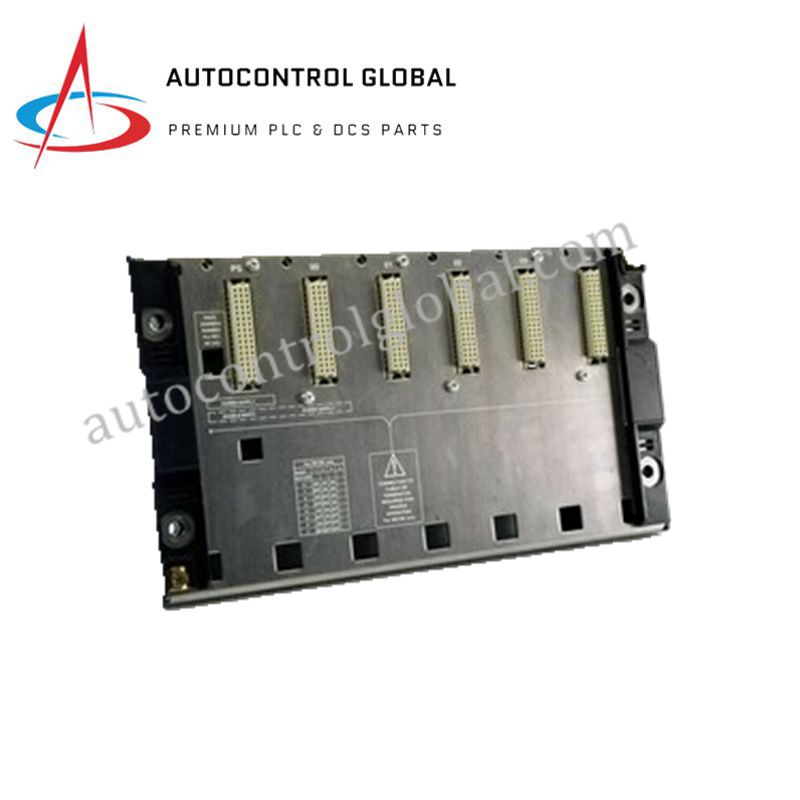

Schneider TSXRKY6 | Industrial Expansion Rack for PLC Systems

Product Description

Overview

The Schneider Electric TSXRKY6 is a 6-slot expansion rack designed for the Modicon Premium PLC system. It provides users with the flexibility to expand their automation system by adding more I/O, communication, and special function modules. This compact expansion solution ensures reliable communication between the main PLC rack and expansion racks, making it ideal for medium-sized to large-scale industrial control systems.

Technical Specifications

• Product Type: Expansion Rack

• System Compatibility: Modicon Premium PLC

• Number of Slots: 6

• Rack Type: Passive backplane with bus connection

• Connection Method: SUB-D 9 connectors

• Supported Modules: I/O modules, communication modules, special function modules

• Maximum Expansion: Up to 7 racks per system

• Dimensions: 360 × 200 × 60 mm

• Weight: 3.0 kg

• Mounting: Panel or cabinet mounting

• Operating Temperature: 0 °C to +50 °C

• Storage Temperature: –20 °C to +60 °C

• Humidity Range: 10–90% RH

• Certifications: CE, UL, CSA

FAQ

What is the function of the TSXRKY6?
The TSXRKY6 is a 6-slot expansion rack for Modicon Premium PLC systems, allowing users to add I/O, communication, and special function modules.

How many racks can be connected with the TSXRKY6?
The TSXRKY6 supports up to 7 expansion racks in a Modicon Premium PLC system, depending on the configuration.

How does the TSXRKY6 connect to the main PLC?
The TSXRKY6 connects to the main PLC via SUB-D 9 connectors and TSX SCA bus extension cables, ensuring stable communication between racks.

What is the maximum operating temperature for the TSXRKY6?
The TSXRKY6 operates in temperatures ranging from 0 °C to +50 °C.

Can the TSXRKY6 be used in harsh industrial environments?
Yes, the TSXRKY6 is designed to operate reliably in industrial environments with continuous use in harsh conditions.
