Schneider XBT G2110 | Industrial Touchscreen HMI | Modbus Support

Product Overview

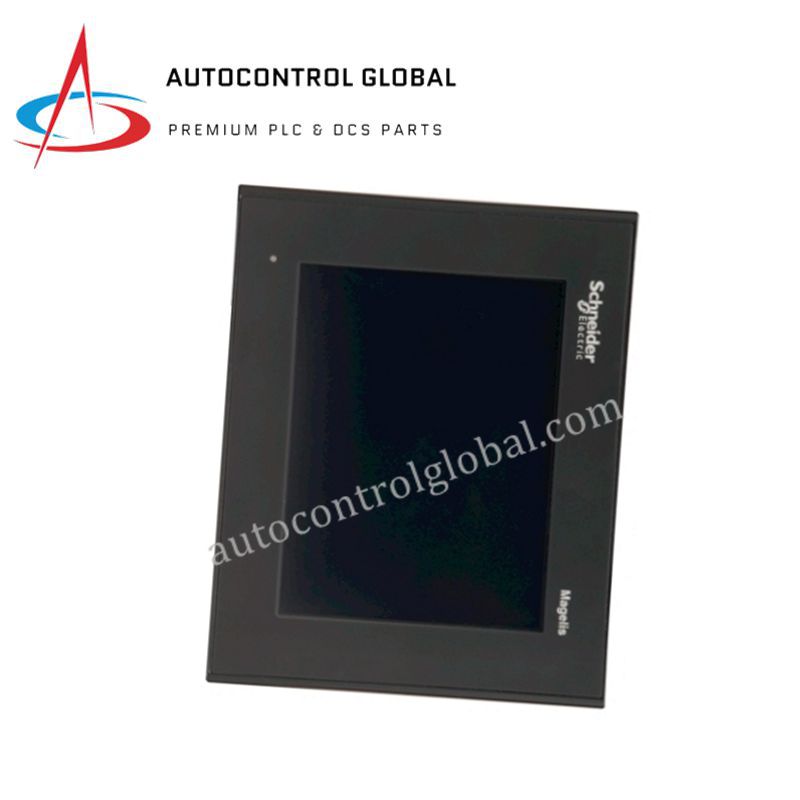

The Schneider Electric XBT G2110 is a compact HMI (Human-Machine Interface) terminal designed to offer a robust solution for controlling and monitoring industrial processes. As part of the Magelis XBT-G series, this operator panel features a 5.7-inch STN color display with intuitive touchscreen operation. With versatile communication options like Modbus, Modbus TCP/IP, and Uni-Telway, it integrates seamlessly into factory automation, machine control, and process industries.

Its compact size makes it ideal for environments with limited space, while its advanced functionalities ensure reliable performance in demanding industrial applications.

Technical Specifications

• Model: XBT G2110

• Brand: Schneider Electric

• Product Type: Compact HMI Touchscreen Terminal

• Display Size: 5.7-inch STN LCD

• Resolution: 320 × 240 pixels (QVGA)

• Colors: 256 colors

• Touchscreen Type: Analog resistive

• Backlight: CCFL (replaceable)

• Processor: 32-bit RISC

• Memory:

• 16 MB RAM

• 32 MB Flash

• Interfaces:

• 1 × COM port (RS232/RS485)

• 1 × Ethernet (10/100 Mbps)

• 1 × USB (Host/Device)

• Communication Protocols:

• Modbus

• Modbus TCP/IP

• Uni-Telway

• Power Supply: 24 V DC

• Power Consumption: Approx. 15 W

• Dimensions:

• Width: 204 mm

• Height: 159 mm

• Depth: 60 mm

• Weight: 1.1 kg

• Operating Temperature: 0°C to +50°C

• Storage Temperature: -20°C to +60°C

• Humidity Range: 10–90% RH

• Mounting: Panel mounting

• Certifications: CE, UL, CSA

FAQ

What is the display size of the Schneider XBT G2110?
The XBT G2110 has a 5.7-inch STN LCD display with a resolution of 320 × 240 pixels (QVGA).

What communication protocols does the XBT G2110 support?
It supports Modbus, Modbus TCP/IP, and Uni-Telway communication protocols.

Can the XBT G2110 integrate with Schneider PLCs?
Yes, it is designed to integrate seamlessly with Schneider Electric’s EcoStruxure™ architecture, making it compatible with Modicon PLCs.

What is the operating temperature range for the XBT G2110?
The XBT G2110 operates in temperatures ranging from 0°C to +50°C.

Is the XBT G2110 suitable for industrial environments?
Yes, the XBT G2110 is built for industrial applications, with certifications such as CE, UL, and CSA ensuring its durability and reliability.
