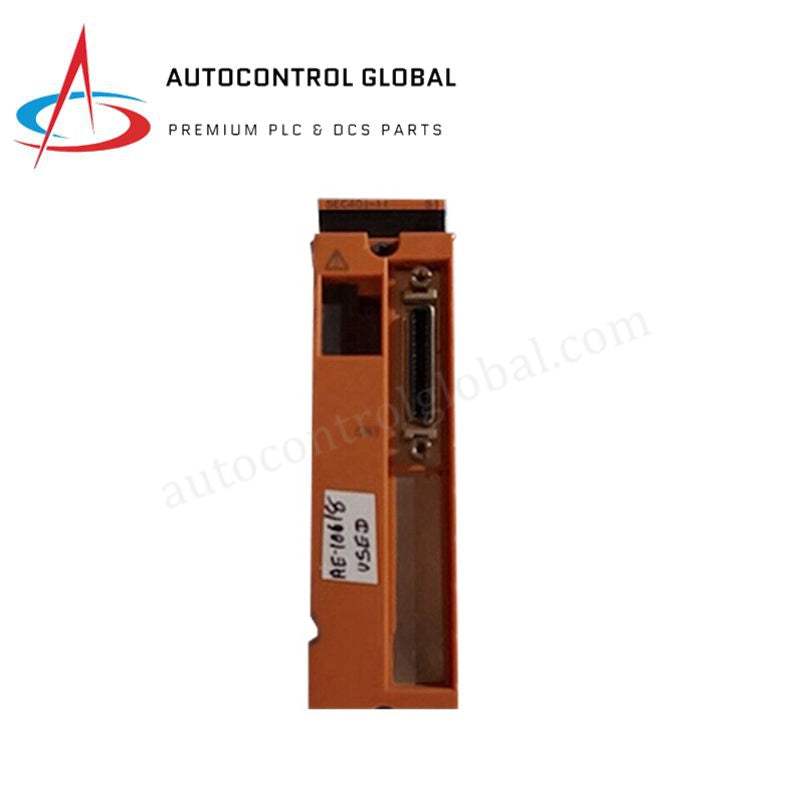

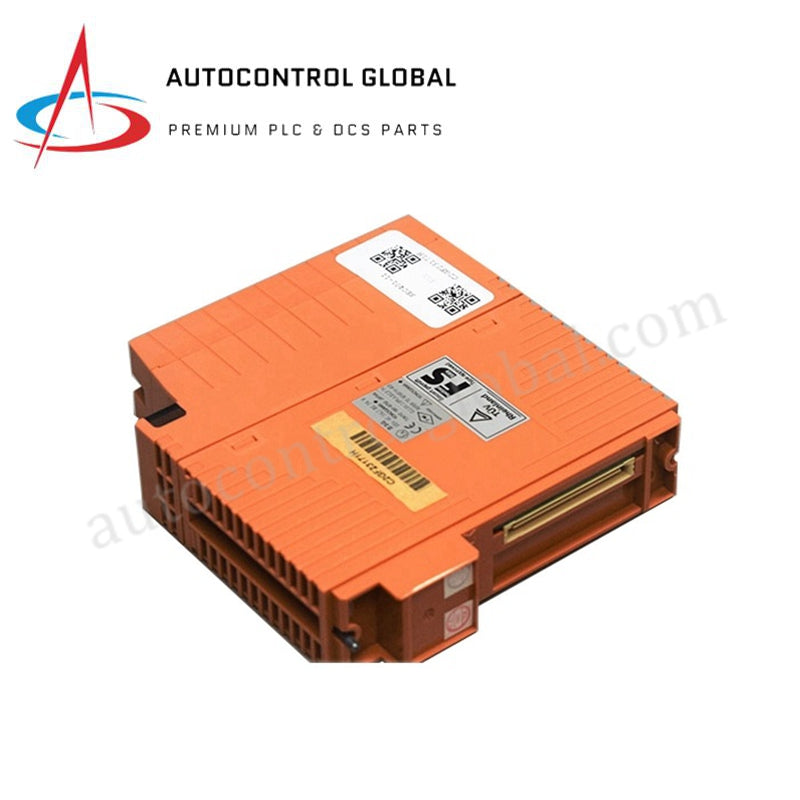

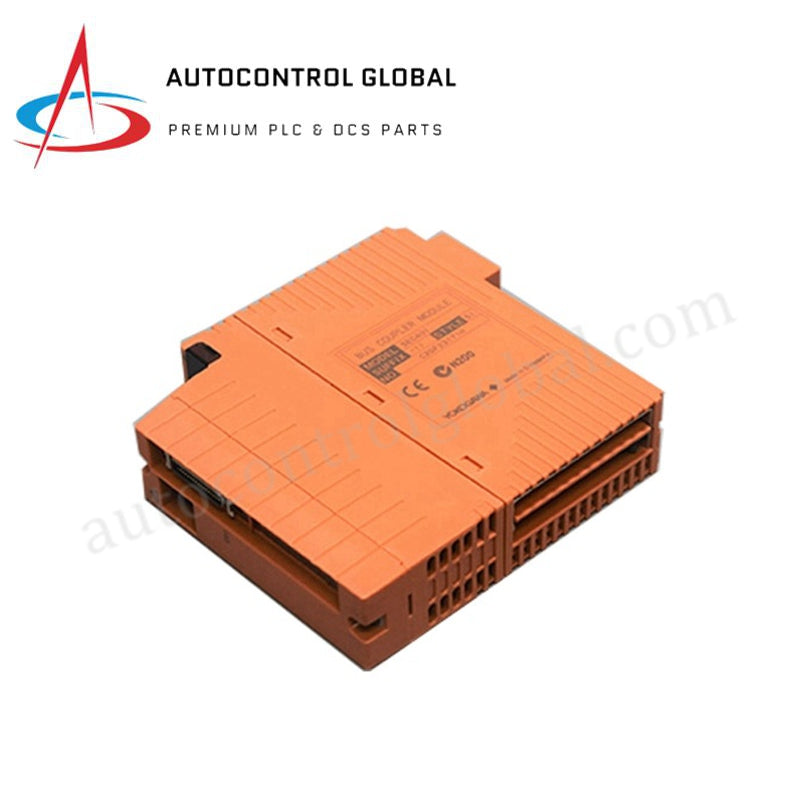

SCP451-51 S2 Yokogawa ProSafe-RS Safety Processor Module

Yokogawa SCP451-51 S2 ProSafe-RS Safety Processor Module

The Yokogawa SCP451-51 S2, also cataloged as the SCP451 Safety Processor Module, operates as a dedicated hardware component for real-time safety logic execution and process data coordination within ProSafe-RS Safety Instrumented System (SIS) platforms. The unit processes deterministic safety algorithms across backplane buses to manage active emergency shutdown (ESD) loops and process interlocks. Integrated memory buffers retain processor state data during system power interruptions, while channel-to-channel galvanic isolation prevents field electrical transients from affecting internal core microprocessors.

Suffix Breakdown & Model Matrix

The suffix structure of the SCP451 safety processor module designates mechanical specifications and environmental protective options applied during production:

• Base Model (SCP451): Standard ProSafe-RS high-reliability safety processor module platform.
• First Suffix (-51): Designates non-explosion-proof construction combined with factory-applied conformal coating specifications.
• Second Suffix (S2): Indicates the specific hardware revision level and firmware baseline compatibility.

Hardware Specifications

Process Control & DCS Instrumentation Features

The SCP451-51 S2 routes safety logic commands across redundant control buses to preserve process availability without single-point failure risks. Integrated channel-to-channel isolation circuits prevent ground loops and field voltage surges from degrading core processing performance. The module processes analog trip thresholds and cold junction compensation values received from remote I/O units, enforcing active safety interlocks within deterministic system scan times.

Frequently Asked Questions

Q: What precautions are necessary when hot-swapping an SCP451-51 S2 module in a redundant configuration?

A: Technicians must verify that the partner processor in the dual-redundant Safety Control Unit is fully online and displaying active diagnostic health LEDs before extracting the faulty module. Upon seating the replacement card, the backplane automatically synchronizes memory tables and aligns firmware execution states.

Q: How does the module handle power supply fluctuations within the control panel?

A: The module accepts a nominal input voltage of 24 VDC with a +/-10 percent tolerance window. Internal voltage regulation circuitry steps down field power to a regulated 5 VDC rail for internal logic circuits, filtering high-frequency noise and voltage sags.

Field Installation Guidelines

Insert the SCP451-51 S2 vertically into the designated Safety Control Unit rack slot, guiding the board along the chassis rails until the rear backplane connectors engage firmly. Secure the top and bottom retaining screws to a torque spec of 0.5 Nm to prevent connection looseness caused by industrial panel vibration. Ensure the main cabinet ground connects directly to the system earth bar with heavy copper wire, keeping path resistance under 1 Ohm to maintain effective shield grounding. Route RS-485 and safety network cables through separate wire ducts, maintaining a minimum physical separation of 200 mm from AC power conductors to suppress electromagnetic interference.
