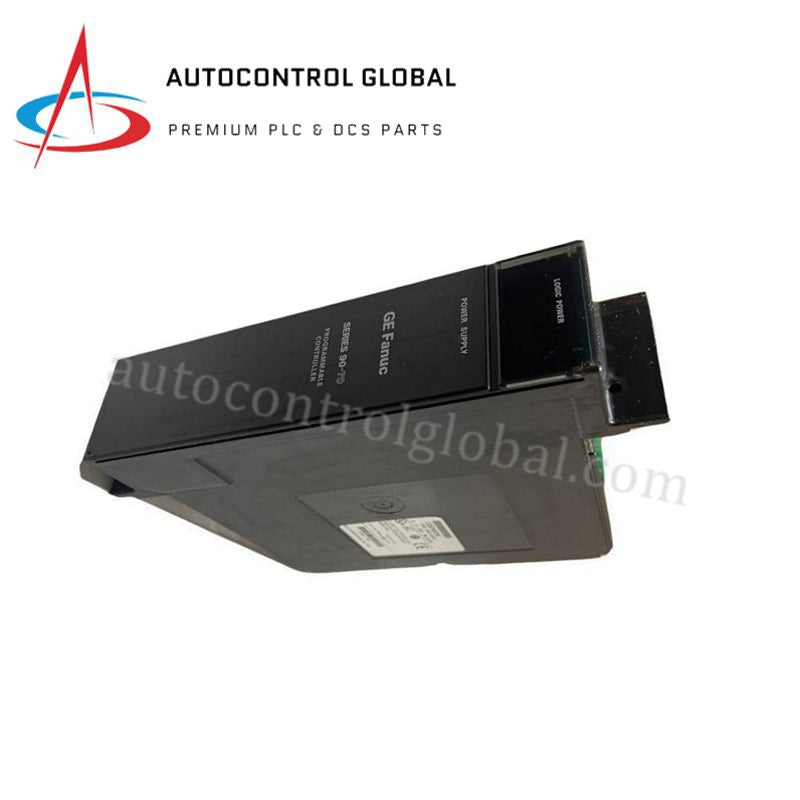

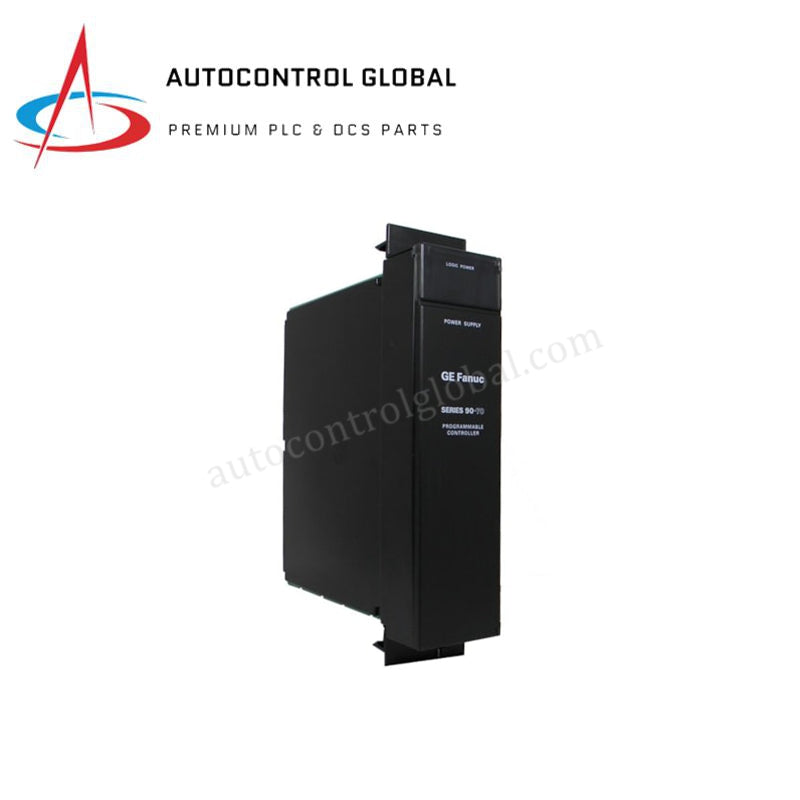

Series 90-70 120/240V 100W Power Supply | GE IC697PWR713

Product Description

The IC697PWR713 is a high-capacity 100-watt power supply module engineered for the GE Fanuc Series 90-70 PLC system. Designed to handle demanding industrial loads, this module converts a wide range of incoming AC or DC supply voltages into the regulated +5 VDC and +24 VDC rails required by the system's processors and I/O modules. It serves as the primary power distribution point, providing enough current to support high-density configurations across one or two rack segments.

Built for mission-critical automation, the IC697PWR713 utilizes advanced power conditioning to protect sensitive VME-based logic boards from fluctuations and noise in the main supply. Its dual-voltage output strategy ensures that both the logic processing core and auxiliary field-side circuits remain stable under continuous operation. Given its central role, this power supply is housed in a rugged enclosure with passive convection cooling, optimized for the vertical airflow characteristics of the Series 90-70 chassis.

Technical Specifications

• Model Number: IC697PWR713

• Manufacturer: GE Fanuc (Emerson Automation)

• Series Compatibility: Series 90-70 PLC Only

• Output Power: 100 Watts (Total)

• Output Voltages: +5 VDC (for logic), +24 VDC (for relay/aux), and +12 VDC (isolated)

• Nominal Input Voltage: 120/240 VAC or 125 VDC

• Input Voltage Range: 85 to 264 VAC (47–63 Hz) or 100 to 300 VDC

• Holdup Time: 20 milliseconds (minimum at full load)

• Rack Support: Capable of powering single or dual rack assemblies

• Dimensions: 206.4 mm x 49.8 mm x 158.5 mm

• Net Weight: 1.81 kg ( 4.0 lbs)

• Shipping Weight: 3.0 kg

• Operating Temperature: -20 °C to +60 °C (-4 °F to 140 °F)

• Storage Temperature: -40 °C to +85 °C

• Compliance: IEC 61326-1 EMC, Industrial Reliability Standards

Application & System Health

The IC697PWR713 is typically installed in the leftmost slot of the Series 90-70 rack. For systems exceeding the power capacity of a standard 50W supply, the 100W IC697PWR713 is the preferred upgrade. To maintain system uptime, engineers should regularly monitor the status LEDs and verify that the airflow vents remain unobstructed. Since this power supply is discontinued, maintaining a functional spare is critical for facilities relying on legacy 90-70 control architectures for turbine or process management.

Frequently Asked Questions

Can the IC697PWR713 operate on 125 VDC battery banks?Yes. The IC697PWR713 is designed for universal input, supporting a DC range of 100 to 300 VDC, making it ideal for power plant environments with battery-backed DC control buses.

Does this power supply support redundant configurations?While the IC697PWR713 provides robust power for a single or dual rack setup, the Series 90-70 architecture does not support direct parallel load-sharing between two power supplies in the same rack. Redundancy is typically managed at the system level with redundant CPUs and racks.
