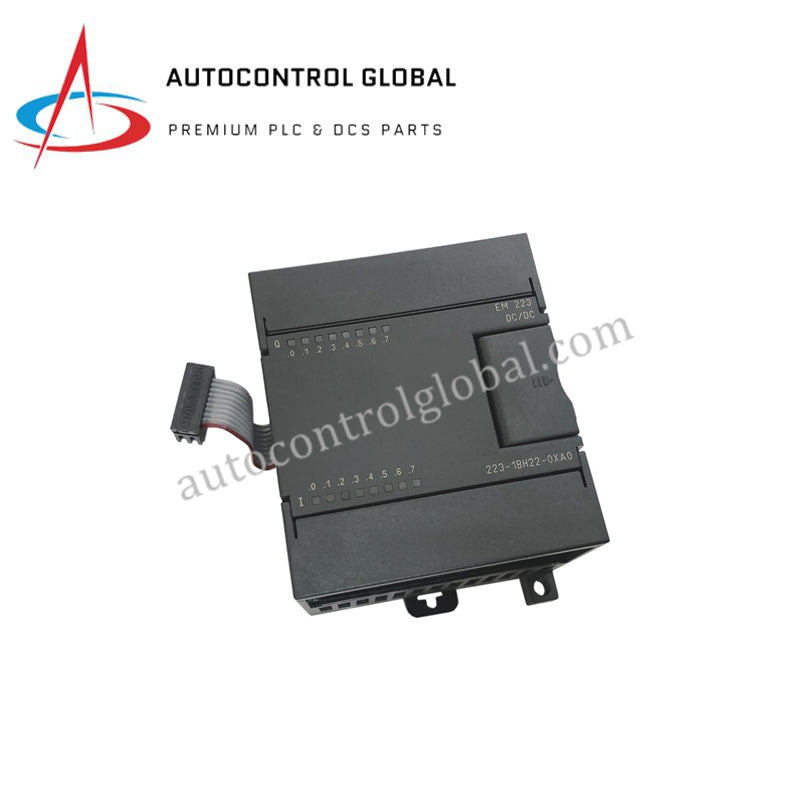

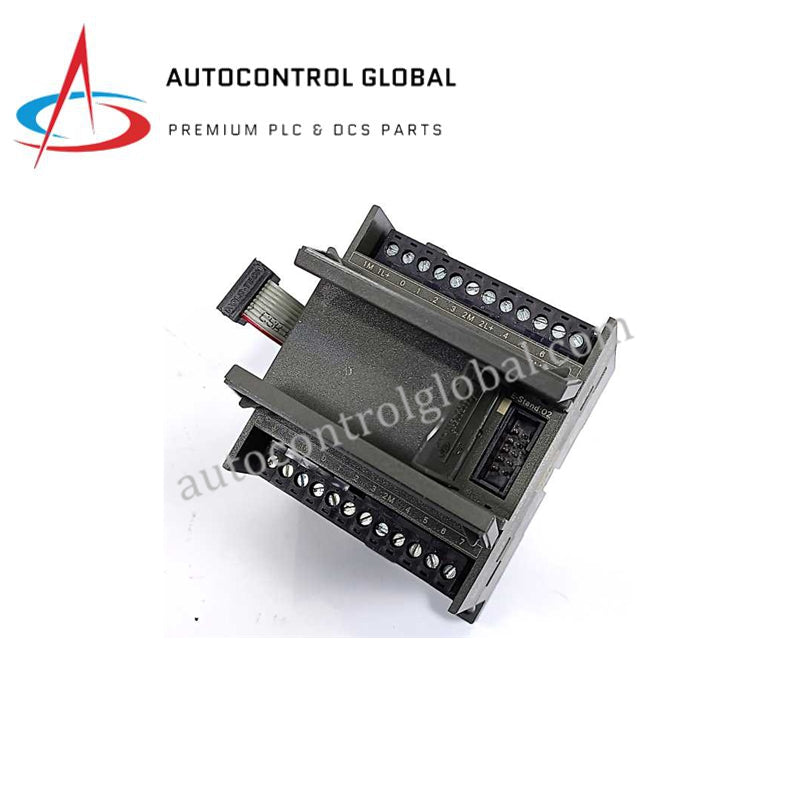

Siemens 6ES7223-1BH22-0XA0 S7-200 EM223 I/O Module 8DI/8DO
Manufacturer: Siemens
-
Part Number: 6ES7223-1BH22-0XA0
Condition：New with Original Package
Product Type: EM223 I/O Module 8DI/8DO
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The Siemens 6ES7223-1BH22-0XA0 is a digital I/O expansion module for SIMATIC S7‑200 CPUs (S7-22X series only). It provides 8 digital inputs (24 VDC, sink/source) and 8 relay outputs (AC/DC, up to 250 VAC/30 VDC, max 2 A per channel), delivering a total of 16 I/Os in a compact housing.
Designed for small to medium automation projects, 6ES7223-1BH22-0XA0 enables direct switching of DC and AC loads, making it suitable for machine control, packaging systems, conveyors, and building automation applications. DIN rail mounting ensures quick installation, while industrial-grade construction guarantees reliable performance in harsh environments.
This new spare part is ready for immediate deployment, providing flexible expansion for legacy S7‑200 systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Model / Part Number | 6ES7223-1BH22-0XA0 |
| Manufacturer | Siemens AG |
| Series | SIMATIC S7‑200 |
| Product Type | Digital I/O Expansion Module (EM223) |
| Inputs | 8 digital inputs (24 VDC, sink/source) |
| Outputs | 8 relay outputs (AC/DC, up to 250 VAC / 30 VDC, max 2 A/channel) |
| Total I/Os | 16 (8 DI + 8 DO) |
| Input Type | DC digital |
| Output Type | Relay (mechanical switching) |
| Dimensions (W × H × D) | 80 × 80 × 62 mm |
| Mounting | DIN rail |
| Operating Voltage | 24 VDC logic supply |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –40 °C to +70 °C |
| Humidity | 5–95% non-condensing |
| Certifications | CE, UL, CSA compliant |
| System Compatibility | S7‑200 CPUs (S7-22X series only) |
| Lifecycle | Legacy S7‑200; Siemens recommends S7‑1200 for new projects |
