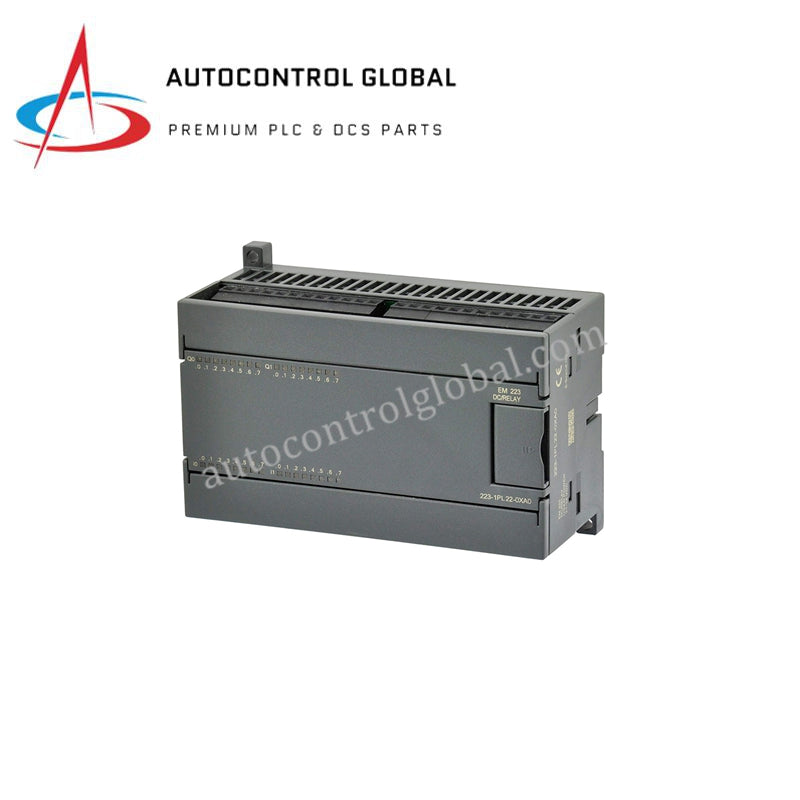

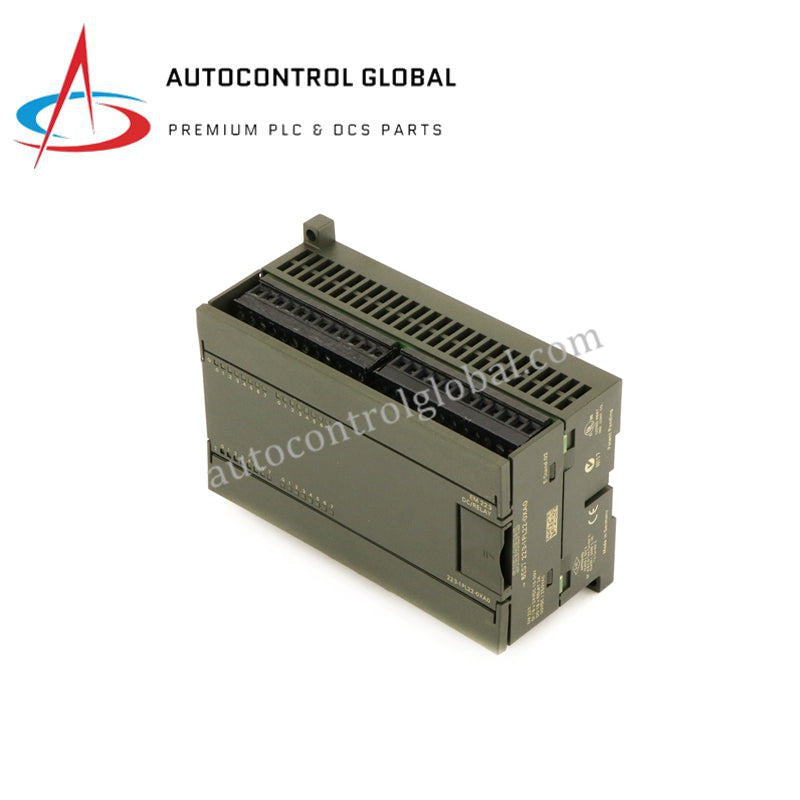

Siemens 6ES7223-1PL22-0XA0 S7-200 EM223 I/O Module 16DI/16DO
Manufacturer: Siemens
-
Part Number: 6ES7223-1PL22-0XA0
Condition：New with Original Package
Product Type: EM223 I/O Module 16DI/16DO
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The Siemens 6ES7223-1PL22-0XA0 is a digital I/O expansion module for SIMATIC S7‑200 CPUs (S7-22X series only). This compact module provides 16 digital inputs (24 VDC, sink/source) and 16 digital relay outputs (24 VDC/230 VAC, max 2 A per channel), delivering a total of 32 I/Os in a single unit.
Designed for fast switching DC applications, 6ES7223-1PL22-0XA0 is ideal for small to medium automation projects, including machine control, packaging, conveyor systems, and material handling. The module mounts easily on DIN rails, features robust industrial-grade construction, and complies with CE, UL, and CSA standards.
As a spare part in the S7‑200 series, it supports legacy systems and is available as new in box with Radwell warranty coverage.
Technical Specifications
| Parameter | Details |
|---|---|
| Model / Part Number | 6ES7223-1PL22-0XA0 |
| Manufacturer | Siemens AG |
| Series | SIMATIC S7‑200 |
| Product Type | Digital I/O Expansion Module (EM223) |
| Inputs | 16 digital inputs (24 VDC, sink/source) |
| Outputs | 16 digital relay outputs (24 VDC/230 VAC, 2 A/channel) |
| Total I/Os | 32 (16 DI + 16 DO) |
| Output Current | Max 2 A per channel |
| Input Type | DC digital |
| Output Type | Relay |
| Operating Voltage | 24 VDC (L+), 24–230 VAC for relay outputs |
| Power Loss | 6 W typical |
| Dimensions (H × W × D) | 80 × 137.5 × 62 mm |
| Weight | 0.4 kg |
| Mounting | DIN rail |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –40 °C to +70 °C |
| Humidity | 5–95% non-condensing |
| Certifications | CE, UL, CSA compliant |
| System Compatibility | S7‑200 CPUs (S7-22X series only) |
| Lifecycle | Legacy S7‑200; Siemens recommends S7‑1200 for new projects |
