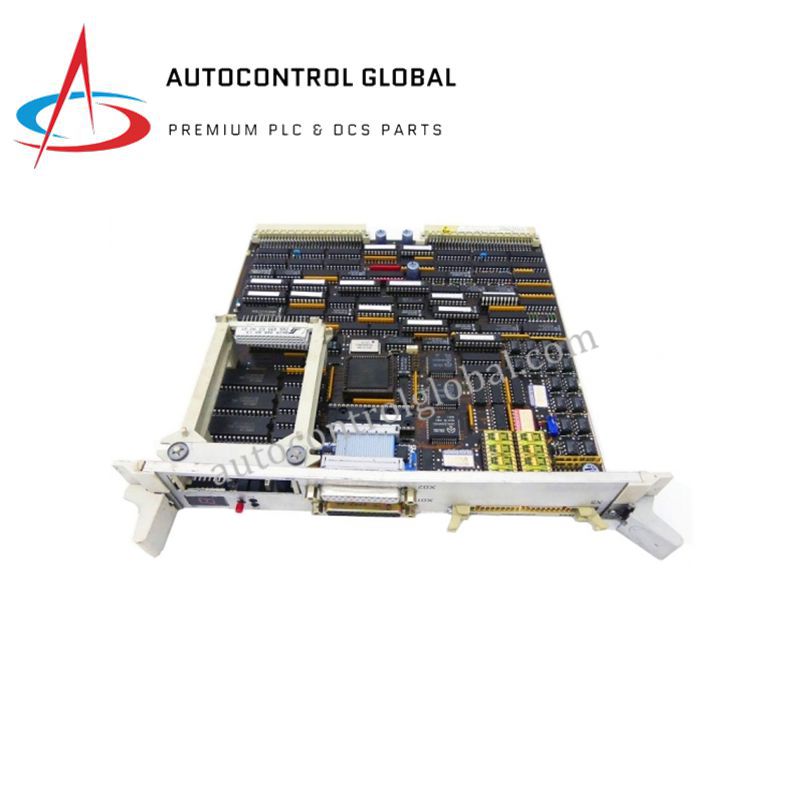

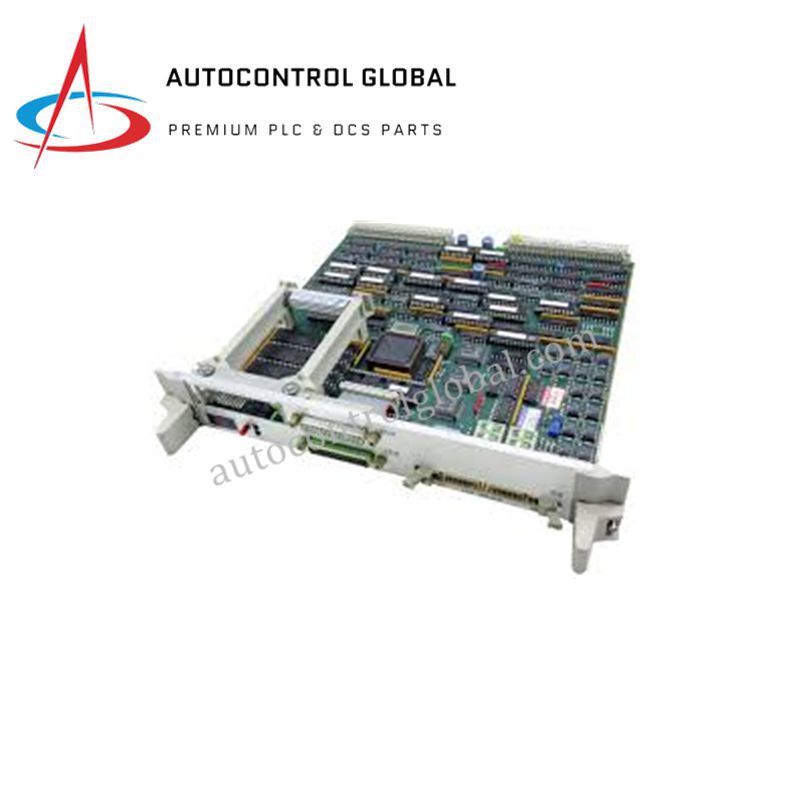

SIMADYN D PM16 6DD1600-0AF0 Siemens Industrial Processor

Product Description / Overview

The Siemens 6DD1600-0AF0 PM16 processor module is a core CPU for the SIMADYN D rack-based automation system.
It features an AMD 80C186 processor operating at 16 MHz, providing reliable computation for industrial control tasks.
This module supports deterministic closed-loop control, input/output processing, and communication between SIMADYN D modules.
Moreover, its modular design allows flexible configuration to meet diverse automation requirements in manufacturing and power systems.
With 128 KB of RAM, the module ensures sufficient memory for program execution and process data handling.

Technical Data / Specifications

Product Type: SIMADYN D Processor Module (PM16)
Model Number: 6DD1600-0AF0
Processor: AMD 80C186
Clock Speed: 16 MHz
Memory: 128 KB RAM
System Type: Rack-based modular control system
Functions Supported: Closed-loop control, I/O processing, communication
Bus System: L & C Bus (VME/VXI compatible)
Mounting: Rack-mounted in SIMADYN D chassis
Connectors: 2 × 94-pin
Module Dimensions: Standard SIMADYN D rack size
Weight: 1.28 lbs (0.58 kg)
Operating Environment: Industrial automation, embedded control
Compliance: Siemens SIMADYN D modular standards

FAQ

What processor does this module use?
It features an AMD 80C186 processor running at 16 MHz for deterministic processing.

How much memory does the module provide?
The PM16 module includes 128 KB RAM for program execution and process data.

Can this module handle closed-loop control tasks?
Yes, it supports closed-loop control, I/O handling, and communication in SIMADYN D racks.

Is it compatible with other SIMADYN D modules?
Yes, it integrates with I/O, communication, and control modules via the L & C Bus.

Is this module suitable for industrial environments?
Absolutely, it is designed for harsh industrial conditions and comes with a Radwell 2-year warranty.
