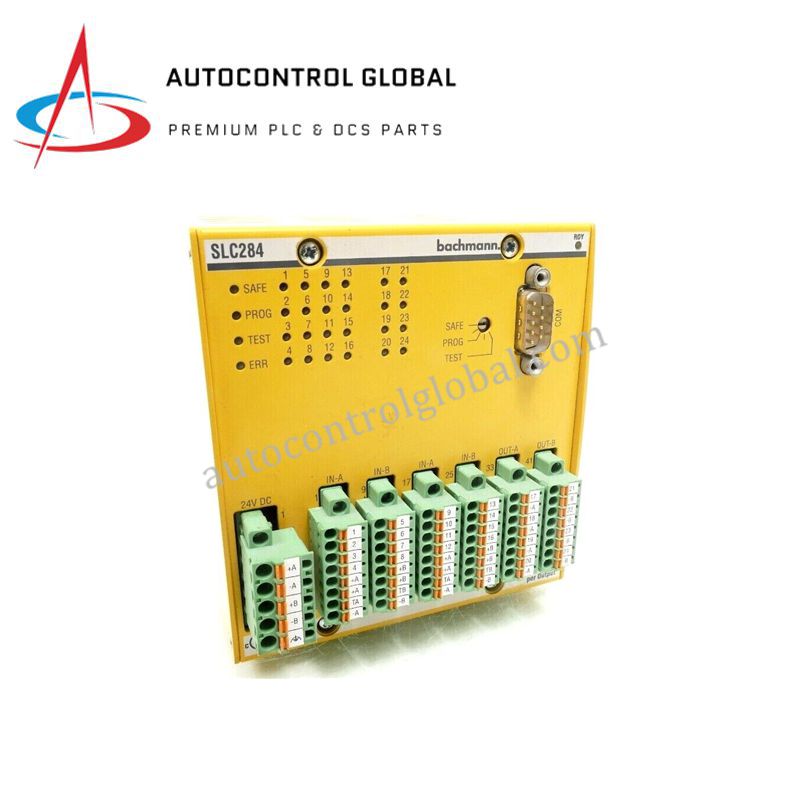

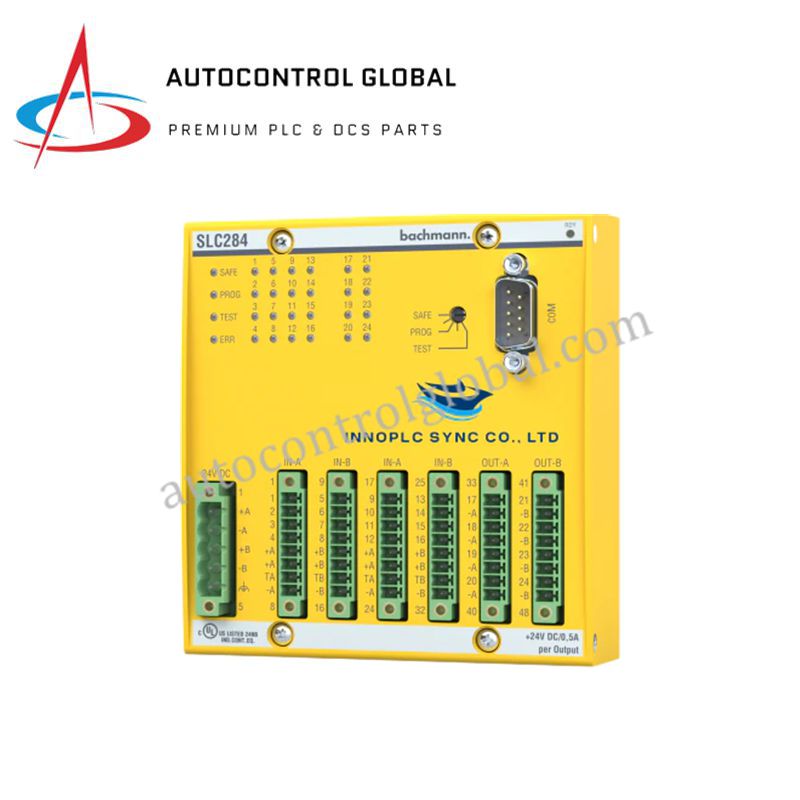

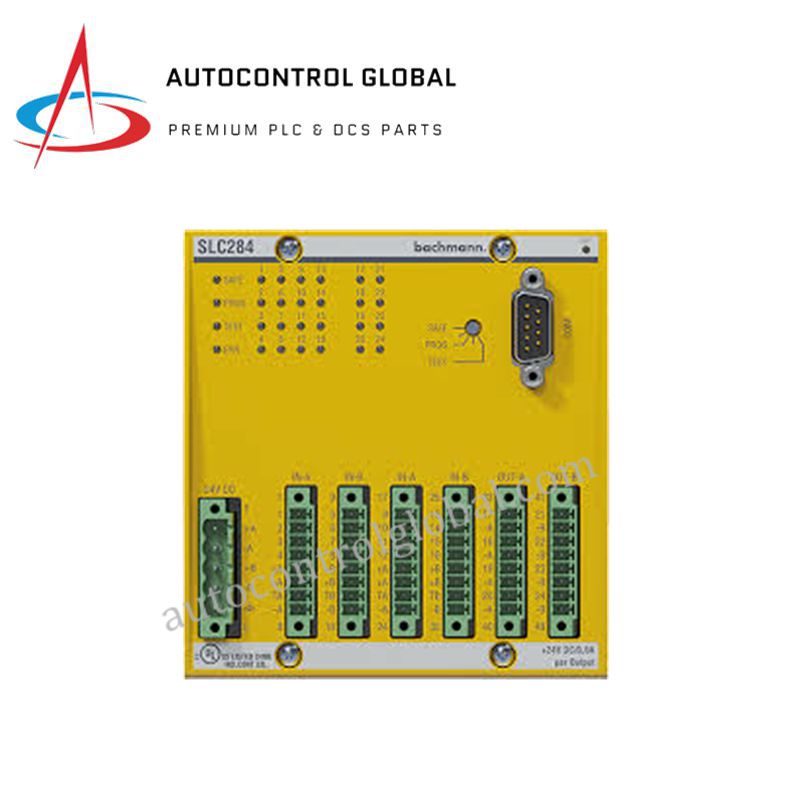

SLC284 00014273-00 Bachmann | SIL3 Certified Safety Controller
Manufacturer: Bachmann
-
Part Number: SLC284 00014273-00
Condition：New with Original Package
Product Type: SIL3 Certified Safety Controller
-
Country of Origin: Austria
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Bachmann SLC284 00014273-00 | Safety Processor Module
Product Description
The Bachmann SLC284 00014273-00 is a high-integrity safety processor module from the Bachmann M1/M200 series, developed for functional safety control in industrial automation. It supports IEC 61508 SIL3, PL e, and Category 4 certifications, making it ideal for critical systems in wind turbines, machine automation, and process control.
The SLC284 00014273-00 employs dual 32-bit microcontrollers that execute redundant operations, ensuring fault tolerance and maintaining continuous system reliability. With 16 digital inputs and 8 digital outputs, the module offers flexible I/O configuration and supports redundant pairing for enhanced safety.
This module connects directly to Bachmann SDI208 and SDO204 modules via FASTBUS, CAN, or bus expansion, eliminating the need for additional wiring. It is fully integrated into Bachmann’s SolutionCenter software, which enables PLCopen-compliant function blocks, simulation, and safety parameter configuration. Its compact DIN-rail design and rugged construction allow for stable performance in extreme environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | SLC284 00014273-00 |
| Manufacturer | Bachmann |
| Product Type | Safety Processor Module |
| Digital Inputs | 16 channels (supports redundant pairing) |
| Digital Outputs | 8 channels (configurable emergency delay) |
| Microcontrollers | Dual 32-bit processors |
| Cycle Time | Fastest program cycle: 5 ms |
| Safety Standards | IEC 61508 SIL3, PL e, Category 4 |
| Communication Interfaces | FASTBUS, CAN, bus expansion |
| Compatible Modules | SDI208, SDO204 |
| Programming Platform | SolutionCenter (PLCopen-compliant) |
| Mounting Type | DIN rail or panel mount |
| Dimensions (W × H × D) | 100 mm × 50 mm × 25 mm |
| Weight | 0.6 kg |
| Country of Origin | Austria |
FAQ
Q1: What safety certifications does the Bachmann SLC284 00014273-00 meet?
A1: It complies with IEC 61508 SIL3, PL e, and Category 4, ensuring high safety integrity for critical applications.
Q2: How does redundancy work in this module?
A2: The SLC284 00014273-00 uses dual 32-bit microcontrollers for redundant processing, maintaining reliable operation during component faults.
Q3: Which I/O modules are compatible with this unit?
A3: It directly interfaces with Bachmann SDI208 and SDO204 safety modules via FASTBUS without extra cabling.
Q4: How is the module configured and programmed?
A4: Configuration and programming are handled through Bachmann SolutionCenter, supporting PLCopen-compliant safety blocks and simulation.
Q5: What is the delivery and warranty policy?
A5: All Bachmann SLC284 00014273-00 modules are brand new and original. We have in-stock inventory, ship via DHL/FedEx within 3–14 days, and provide a 12-month warranty with 30-day returns for quality issues.
