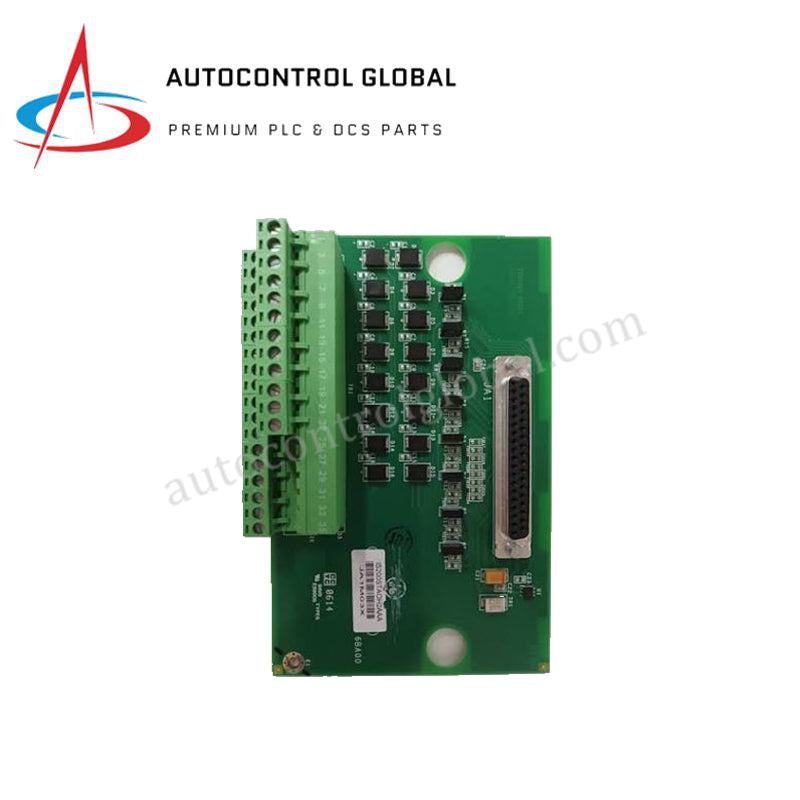

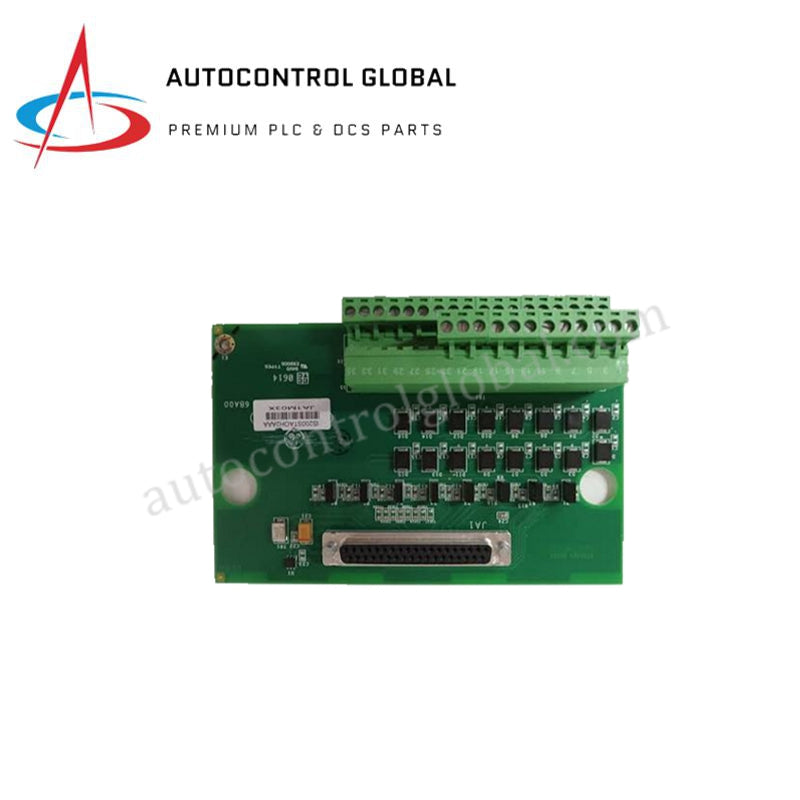

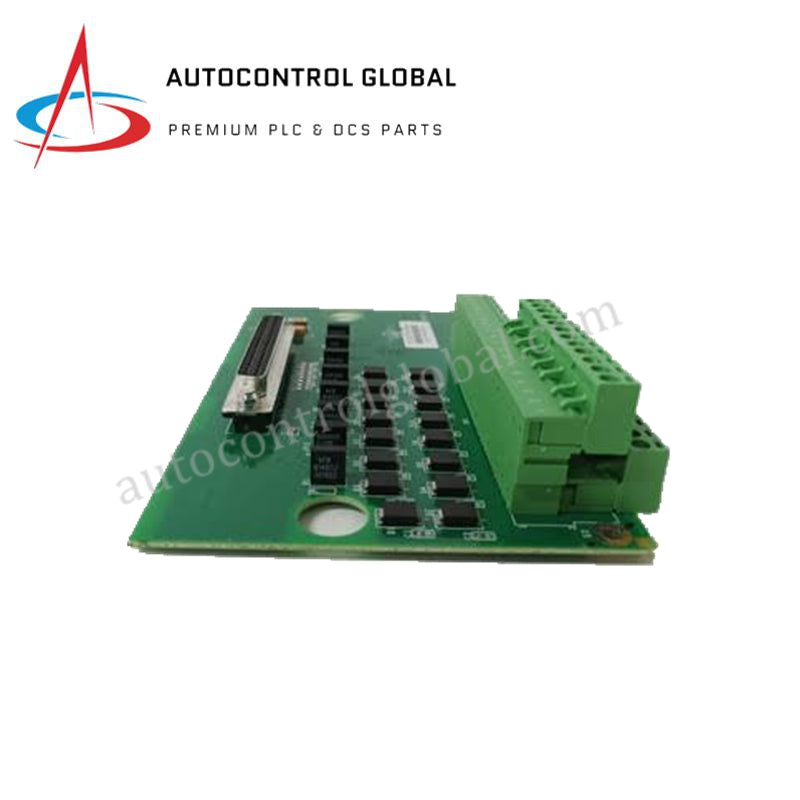

Speedtronic Simplex Terminal Board GE IS200STAIH2ABB Mark VIe
Manufacturer: GE Fanuc
-
Part Number: IS200STAIH2ABB
Condition：New with Original Package
Product Type: Analog Input Terminal Boards
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
GE IS200STAIH2ABB Mark VIe Simplex Analog Input Terminal Board
Configured for analog signal acquisition and transducer loop interface in Mark VIe control systems, the GE IS200STAIH2ABB (IS200STAI Simplex Analog Input Terminal Board) provides direct physical and electrical execution. The hardware accommodates two-wire, three-wire, four-wire, and externally powered transmitters, routing dynamic signal loops through active filtering circuits. Featuring 1500 VDC channel-to-bus galvanic isolation, the terminal card conditions field transmitter inputs and manages jumper-configurable analog output channels before transmitting digitized process data across the system backplane.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200STAIH2ABB |
| Brand | GE |
| Origin | USA |
| Weight | 0.9 kg |
| Dimensions | 233 mm x 167 mm (Standard 6U VME Form Factor) |
| Operating Temp | 0 deg C to +60 deg C |
| Power Consumption | +5 VDC via Backplane Bus |
| System Compatibility | GE Mark VI / Mark VIe Turbine Control System |
| Channel Configuration | 10 Analog Inputs / 2 Analog Outputs (Up to 24 Channel Capacity) |
| Supported Signal Inputs | Current (4-20 mA), Voltage (0-10 VDC), RTD Inputs |
| Output Configuration | Two Jumper-Configurable Outputs (0-20 mA, one up to 0-200 mA) |
| Isolation Rating | 1500 VDC Channel-to-Bus Galvanic Isolation |
| Diagnostics | Open-Circuit and Over-Range Line Detection |
| Termination Type | Screw Terminals with Wire Guards |
Backplane Bus Communication Velocity and Firmware Flash Compatibility
The GE IS200STAIH2ABB exchanges real-time process data with system I/O packs across the backplane bus, maintaining high communication velocity to prevent scan delays in closed-loop control routines. Internal firmware flash compatibility ensures seamless handshaking between onboard signal conditioning circuitry and central processing algorithms. The hardware handles high-density transmitter scaling without dropping scan frames, preserving deterministic data throughput and system timing across dynamic control cycles.
Frequently Asked Questions
Q: How does jumper selection alter the current limits on the analog output channels?
A: Engineers adjust onboard hardware jumpers to set output ranges between standard 0-20 mA limits or configure the designated high-current drive output up to 0-200 mA.
Q: What happens when an analog input transmitter experiences a wire break or open loop?
A: Integrated diagnostic circuits detect the open-circuit condition, flag the fault status to the controller via the backplane bus, and hold the channel in a safe predefined state.
Q: Can two-wire, three-wire, and four-wire field transmitters connect to the same terminal board?
A: Yes, terminal block power distribution nodes accommodate two-wire, three-wire, four-wire, and externally powered loop configurations simultaneously across individual channels.
Field Installation Guidelines
Execute the following steps during physical mounting and field wiring setup:
- Terminal Board Securing: Mount the 6U card assembly securely into the cabinet chassis rail, tightening frame hardware to establish a solid chassis ground reference.
- Signal Conductor Hookup: Strip field wire ends and insert them into the designated screw terminal points, ensuring wire guards prevent strand damage during tightening.
- Shield Cable Termination: Connect individual cable drain wires directly to the cabinet ground bar to maintain single-point earthing and suppress high-frequency interference.
- Jumper Configuration Check: Set output channel range jumpers to the required 0-20 mA or 0-200 mA operating modes prior to connecting actuator drive circuits.
- Backplane Connector Inspection: Inspect multi-pin ribbon interface cables for pin alignment before locking side latches to ensure reliable backplane bus connection.
