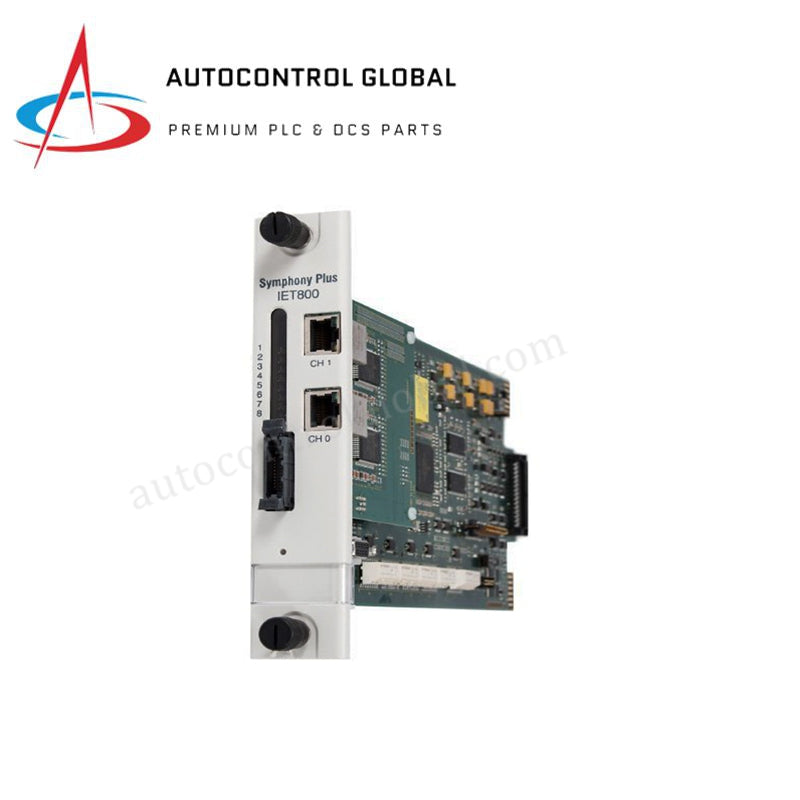

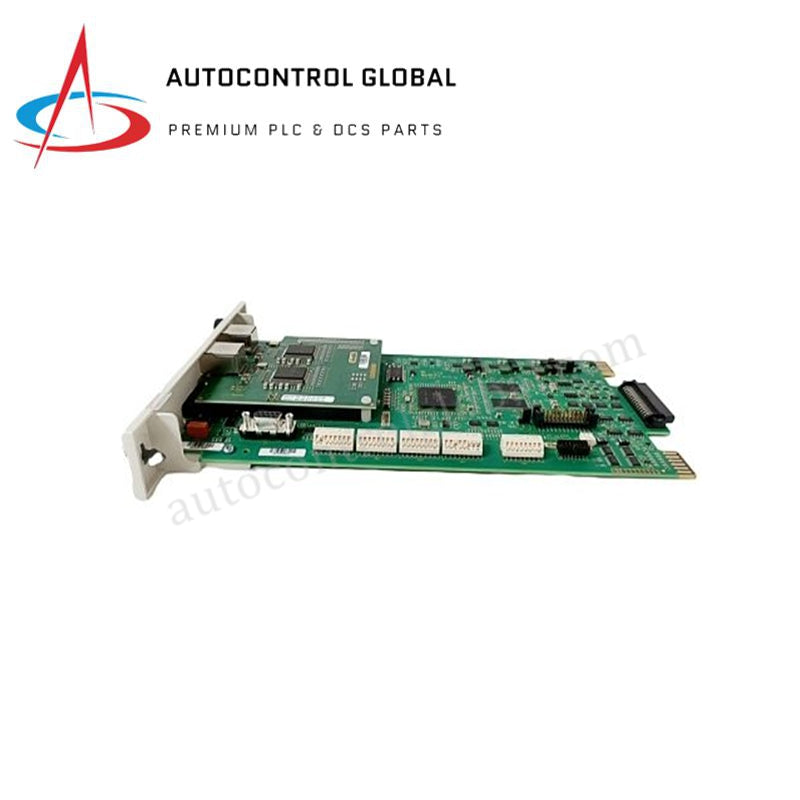

SPIET800 | ABB | Harmony Rack Ethernet Communication Unit

Product Description

High-Speed Ethernet Integration Overview

The SPIET800 (Part Number: SPIET800) is a high-performance Ethernet Communication Interface Unit (CIU) Transfer Module designed for the ABB Symphony Plus Harmony Rack (HR) architecture. This module acts as the primary data gateway, enabling high-speed TCP/IP communication between Harmony controllers and supervisory systems such as S+ Operations, HMI workstations, or enterprise-level historian databases. By utilizing modern Ethernet standards, the SPIET800 (Model: SPIET800) eliminates the bandwidth limitations of legacy serial interfaces, providing the throughput necessary for real-time trending, complex alarm management, and large-scale system synchronization in power generation and process industries.

Detailed Technical Specifications

The SPIET800 (SPIET800) is engineered for deterministic data transfer within the Symphony Plus ecosystem.

• Manufacturer: ABB

• Part Number: SPIET800

• Type Designation: Ethernet CIU Transfer Module

• System Family: Symphony Plus Harmony Rack (HR), INFI 90

• Protocol Support: Ethernet TCP/IP, UDP/IP

• Communication Interface: 10/100 Mbps Ethernet Base-T

• Power Requirements: +24 VDC (Typical via backplane)

• License Requirement: Hardware requires separate activation keys (SSBIET80000000 or SSBIET800A0000) for full functionality

• Diagnostics: Front-panel LED status indicators for Network Link, Activity, and Module Health

• Operating Temperature: 0 °C to +60 °C (32 °F to 140 °F)

• Storage Temperature: -40 °C to +85 °C (-40 °F to 185 °F)

• Mounting Method: Single-slot Harmony Rack Module Mounting Unit (MMU)

• Dimensions: 3.8 cm x 17.8 cm x 33.0 cm (1.5 in x 7.0 in x 13.0 in)

• Net Weight: 0.3 kg (0 lbs 10.7 oz)

• Country of Manufacture: India (Engineering standards by Sweden)

• Tariff Code: 8517620050
