Product Description

Product Overview

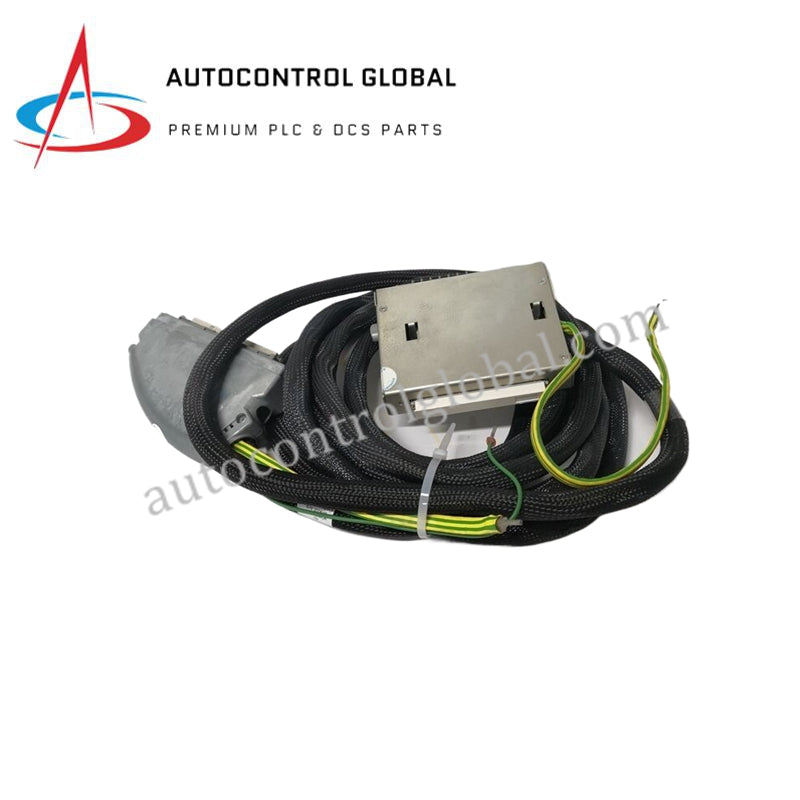

TC-501-02-4M5 is a SmartSlot communication cable designed for the ICS Triplex Trusted® TMR control platform. It is used to establish reliable inter-chassis links (ICL) and SmartSlot I/O connections within Triple Modular Redundant (TMR) systems.

This product is a dedicated system cable, not an electronic module. Its electrical, mechanical, and insulation characteristics are engineered specifically to meet the redundancy, synchronization, and safety requirements of Trusted TMR architectures.

Functional Description

The TC-501-02-4M5 cable supports critical communication paths within Trusted TMR systems, including:

• Inter-Chassis Link (ICL) connections between redundant controllers

• SmartSlot connections between controllers and I/O subsystems

• Synchronization of TMR processing channels

• Maintenance of communication integrity across redundant paths

The cable plays a direct role in system availability and fault tolerance.

Part Number Structure and Ordering Information

The part number TC-501-02-4M5 includes functional and material specifications:

• TC-501: Trusted SmartSlot cable series

• 02: Low Smoke Zero Halogen (LSZH) insulation

• 4M5: Cable length of 4.5 meters

Cable length is specified in 0.5 m increments and must be defined at the time of order.

Technical Specifications

• Model: TC-501-02-4M5

• Manufacturer: ICS Triplex

• System Compatibility: Trusted® TMR Controller Platform

• Product Type: SmartSlot / ICL Communication Cable

• Architecture Support: Triple Modular Redundant (TMR)

• Connector Type: Shielded industrial RJ45

• Cable Length: 4.5 m (custom lengths available)

• Insulation Material: LSZH, flame retardant to IEC 60332-3 Cat A

• EMI / RFI Protection: Shielded construction

• Operating Temperature: 0 °C to +60 °C

• Extended Cable Rating: –40 °C to +85 °C (ruggedized cable assemblies)

• Dimensions: 1.1 × 7.6 × 5.7 cm

• Weight: 1.2 kg

• Country of Origin: USA

• Compliance: CE, UL, RoHS
