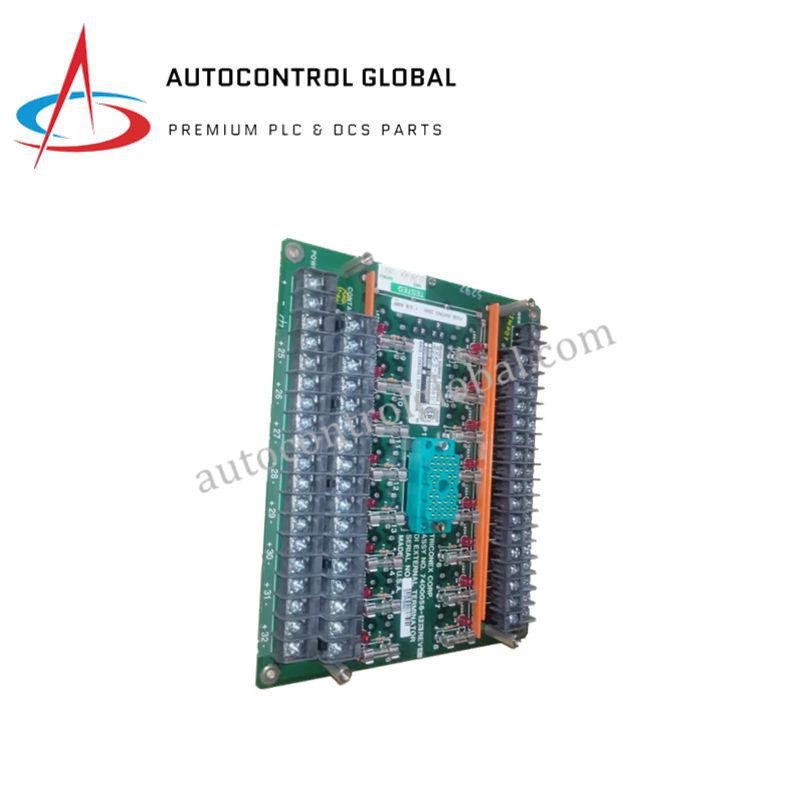

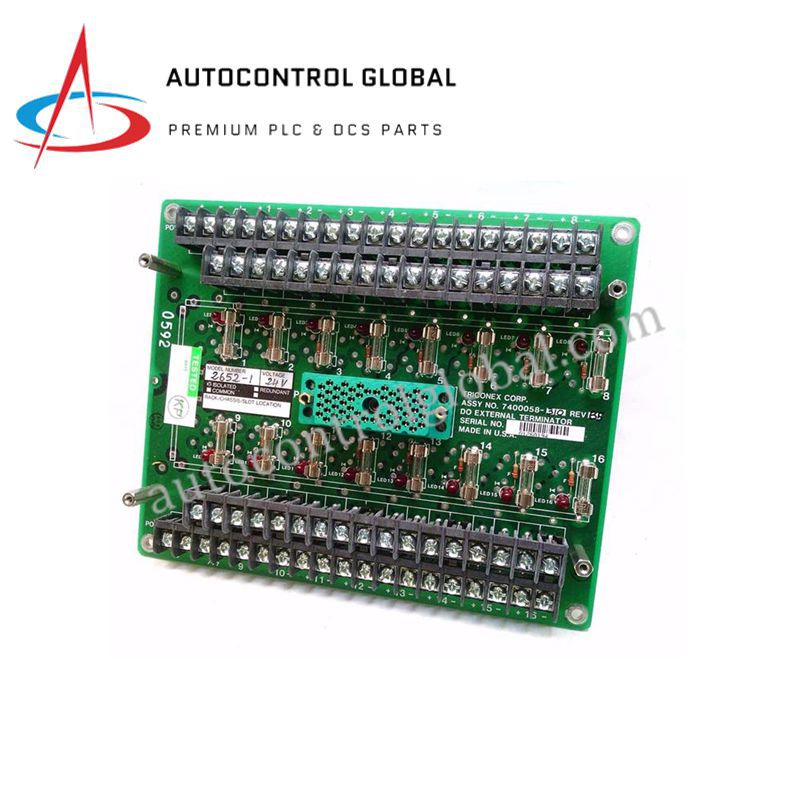

Triconex 7400058‑310 Module | 32-Channel Digital Output Board

Product Description

Overview

The Triconex 7400058‑310 is a robust digital output module engineered for industrial safety applications.
It drives discrete field devices such as solenoids, relays, lamps, and actuators with high reliability.
Moreover, its Triple Modular Redundancy (TMR) design ensures continuous operation even during hardware faults.
This module is SIL 3 certified, making it suitable for critical applications like ESD, F&G, BMS, and HIPPS systems.
Designed for harsh industrial environments, it maintains consistent performance under extreme conditions.

Technical Specifications

• Product Type: Digital Output Module

• Model Number: 7400058‑310

• Manufacturer: Schneider Electric (Triconex brand)

• System Compatibility: Triconex SIS (Tricon/Trident platforms)

• Architecture: Triple Modular Redundancy (TMR)

• Number of Channels: 32 isolated digital output channels

• Output Signal Types: 24 VDC logic outputs, relay drive

• Output Voltage Range: 18–32 VDC typical

• Output Current Capacity: Up to 0.5 A per channel (depending on load)

• Isolation: Channel-to-channel and channel-to-system

• Safety Integrity Level: SIL 3 compliant

• Certifications: UL, ATEX, IECEx, CE

• Diagnostics: Built-in self-diagnostics, fault detection, redundancy monitoring

• Operating Temperature: –20 °C to +60 °C

• Storage Temperature: –40 °C to +85 °C

• Humidity Range: 5–95% RH (non-condensing)

• Dimensions (H × W × D): 187 × 114 × 25 mm

• Weight: 2 kg

FAQ

Q1: How many output channels does the 7400058‑310 provide?
The module offers 32 isolated digital output channels for reliable signal control.

Q2: Which output types are supported?
It supports 24 VDC logic outputs and relay drive for versatile industrial applications.

Q3: Is the module suitable for safety-critical environments?
Yes, it is SIL 3 certified and fully compatible with Triconex SIS systems.

Q4: What is the operating temperature range?
The 7400058‑310 operates reliably between –20 °C and +60 °C.

Q5: Does it include diagnostic features?
Yes, it features real-time monitoring, fault detection, and redundancy supervision.
