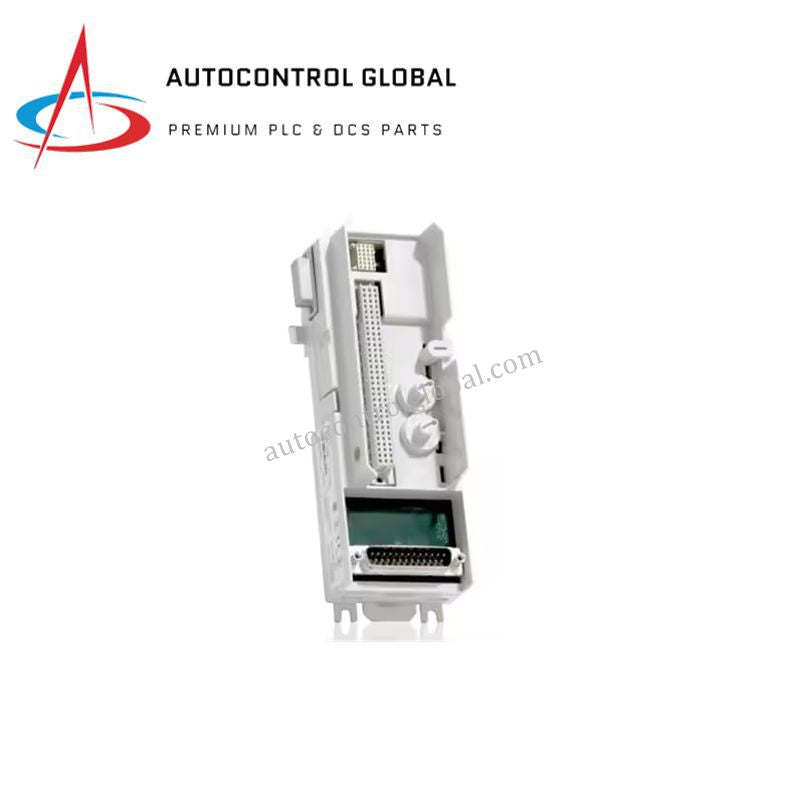

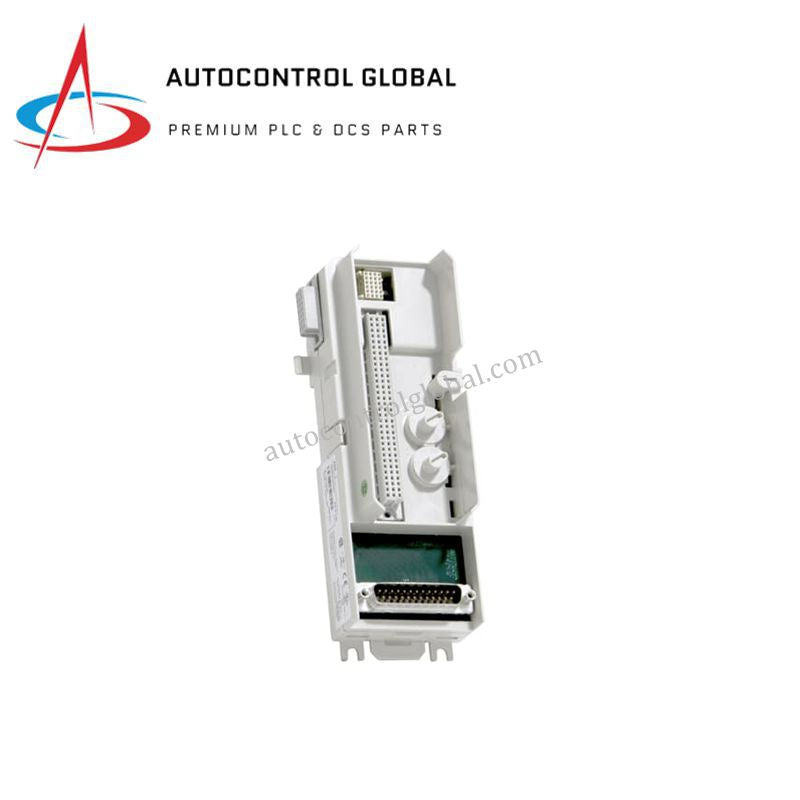

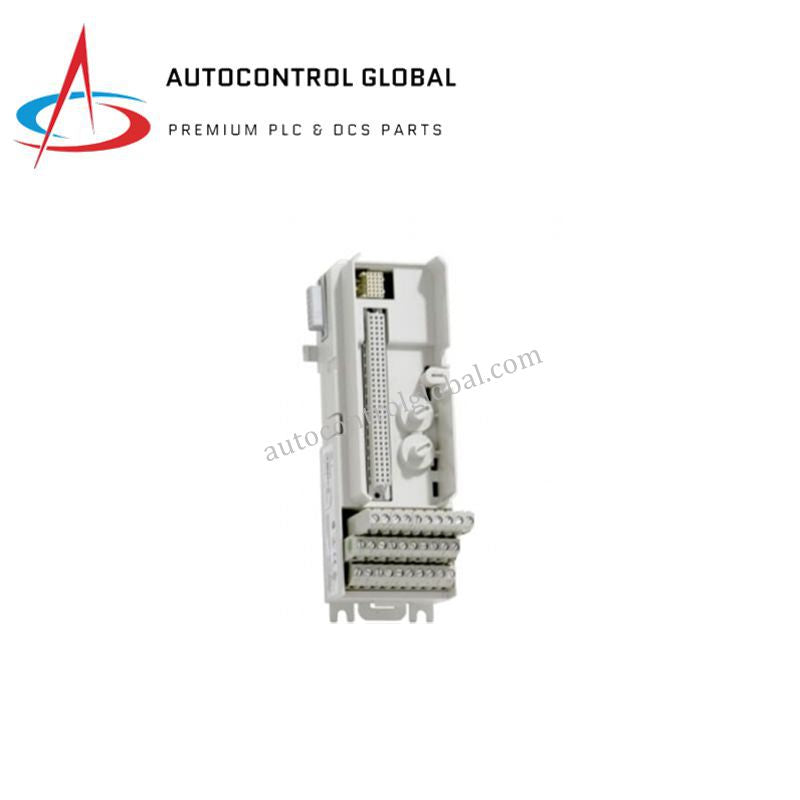

TU812V1 ABB | Compact 50V Module Termination Unit (MTU)

  • Manufacturer: ABB

  • Part Number: TU812V1

  • Condition:New with Original Package

  • Product Type: Compact 50V Module Termination Unit (MTU)

  • Country of Origin: Sweden

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

Product Description

The ABB TU812V1 (3BSE013232R1) is a compact Module Termination Unit (MTU) engineered for the ABB S800 I/O system, part of the System 800xA automation platform. It functions as a passive interface for connecting field wiring to I/O modules and distributing ModuleBus signals within the system.

The TU812V1 supports 16 signal connections through a 25-pin D-sub connector, allowing efficient and organized wiring in industrial environments. It includes mechanical keying to prevent incorrect module insertion, and it automatically shifts position signals to the next MTU, ensuring proper addressing of connected I/O modules.

Built with industrial reliability, the TU812V1 offers a rated insulation voltage of 50 V, 2 A per channel, and 5 A total process connection current. It is DIN-rail mountable, compact, and certified for use in hazardous areas, including ATEX Zone 2 and Class I, Division 2 environments, making it a trusted choice for process automation, power generation, and manufacturing systems.

Technical Specifications

Specification Details
Model Number TU812V1
Part Number 3BSE013232R1
Product Type Module Termination Unit (MTU)
System Compatibility ABB S800 I/O, System 800xA
Signal Connections 16 channels via 25-pin D-sub connector
Rated Insulation Voltage 50 V
Max Current per I/O Channel 2 A
Max Process Connection Current 5 A
Dielectric Test Voltage 500 V AC
Mounting Type DIN rail
Dimensions (W × H × D) 64 mm × 170 mm × 64 mm
Weight 0.17 kg
Protection Rating IP20
Mechanical Keying 2 keys × 6 positions = 36 configurations
Operating Temperature 0°C to +55°C (certified range +5°C to +55°C)
Storage Temperature –40°C to +70°C
Pollution Degree Class 2
Certifications CE, UL, ATEX Zone 2, C1 Div 2, ABS, BV, DNV-GL, LR

FAQ

Q1: What is the function of the ABB TU812V1?
A1: The TU812V1 serves as a passive interface that connects field wiring to I/O modules while distributing ModuleBus signals across the system.

Q2: How many signal connections does the TU812V1 support?
A2: It supports 16 individual signal connections through a 25-pin D-sub connector, allowing efficient and secure wiring.

Q3: Does the ABB TU812V1 provide electrical isolation?
A3: Yes. It features 50 V rated insulation and a dielectric strength of 500 V AC, ensuring safe and reliable operation.

Q4: Can TU812V1 be used in hazardous locations?
A4: Yes. The TU812V1 is certified for ATEX Zone 2 and Class I, Division 2 use, making it suitable for harsh industrial settings.

Q5: What is the mounting method for this module?
A5: The TU812V1 is designed for DIN rail mounting, ensuring easy installation and system expansion.
