TU818V1 ABB | Module Termination Unit for 800xA & Advant OCS
Manufacturer: ABB
-
Part Number: TU818V1 3BSE069209R1
Condition：New with Original Package
Product Type: Module Termination Unit for 800xA & Advant OCS
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

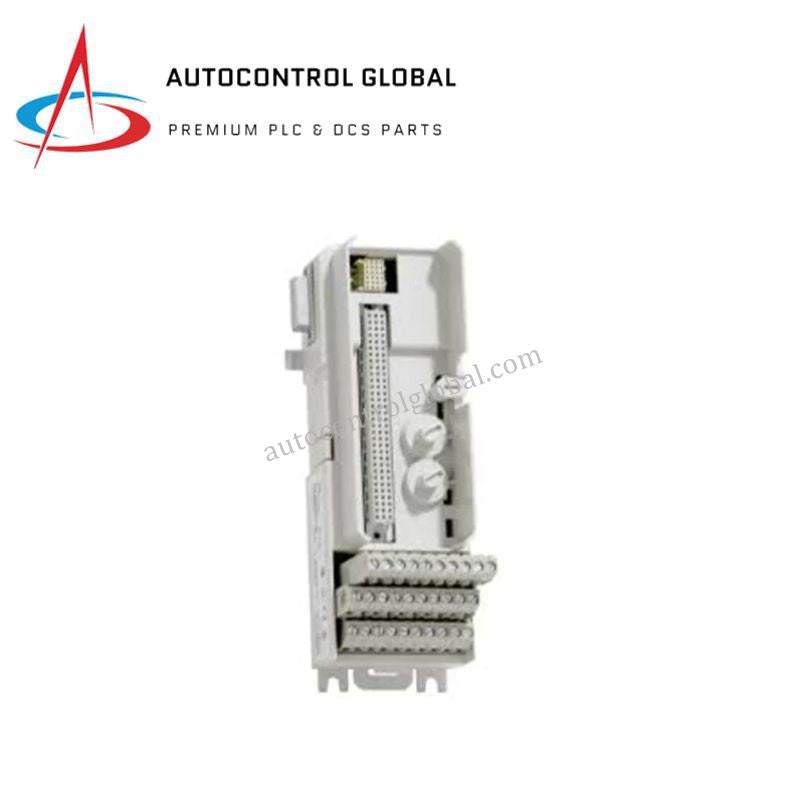

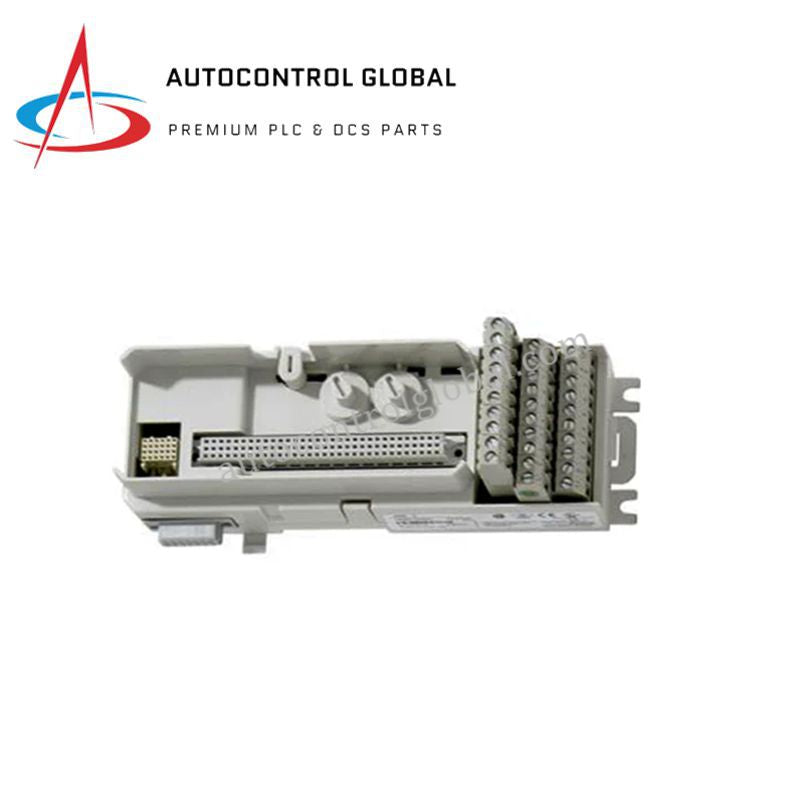

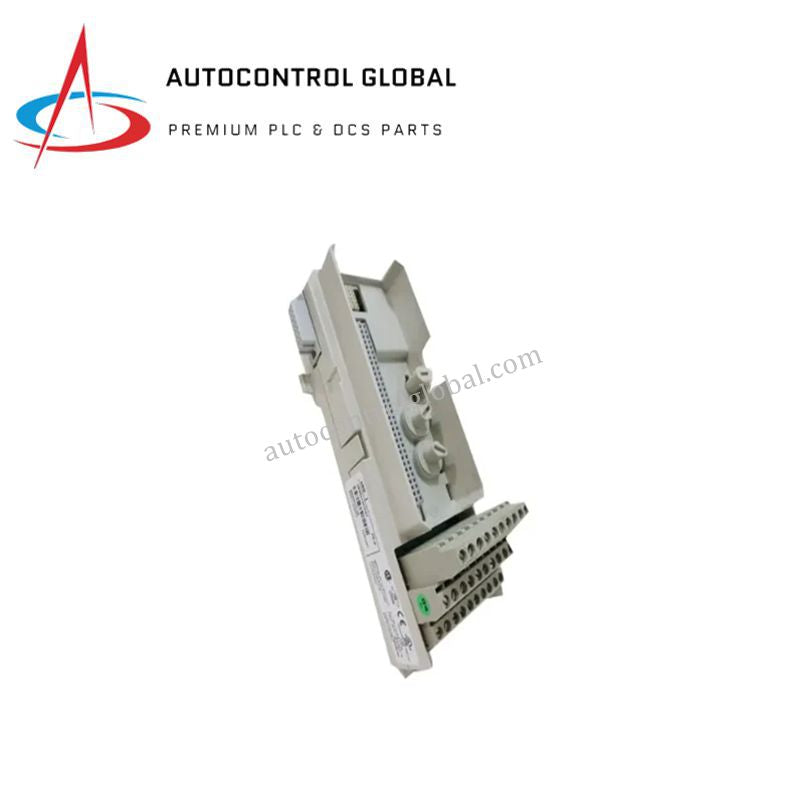

ABB TU818V1 Compact Module Termination Unit
Overview
The ABB TU818V1 is a compact Module Termination Unit (MTU) designed for ABB S800 I/O, 800xA, and Advant OCS platforms.
It provides a reliable mechanical and electrical interface between field wiring and I/O modules, ensuring efficient signal distribution.
The unit includes 1×32 and 2×16 signal terminals, offering versatile wiring options for both digital and analog signals.
Its compact DIN rail design is ideal for space-constrained control cabinets and allows hot-swapping of I/O modules for easy maintenance.
This MTU enhances system integration and simplifies panel wiring while maintaining high reliability in industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | TU818V1 |
| Part Number | 3BSE069209R1 |
| Product Type | Compact Module Termination Unit (MTU) |
| System Compatibility | ABB S800 I/O, 800xA, Advant OCS |
| Signal Terminals | 1×32 and 2×16 terminals |
| Mounting Type | DIN rail |
| Dimensions (W × H × D) | 64 mm × 170 mm × 58.5 mm |
| Weight | 0.26 kg |
| Country of Origin | Switzerland |
| HS Code | 853690 – Electrical apparatus for switching or protecting circuits |
FAQs
Q1: How many terminals does the ABB TU818V1 provide?
✅ It includes 1×32 and 2×16 signal terminals for flexible analog and digital wiring.
Q2: Is this MTU compatible with ABB 800xA and Advant OCS?
✅ Yes, the TU818V1 supports S800 I/O, 800xA, and Advant OCS platforms.
Q3: Can I mount this unit on a DIN rail?
✅ Yes, it features a compact DIN rail design for easy installation in control cabinets.
Q4: Does the unit support hot-swapping of I/O modules?
✅ Yes, you can replace I/O modules without shutting down the system, reducing downtime.
Q5: Where is the TU818V1 manufactured?
✅ This ABB TU818V1 MTU is made in Switzerland and comes with full factory warranty.
