TU833 ABB | Compact I/O MTU Module for 800xA Distributed Control
Manufacturer: ABB
-
Part Number: TU833
Condition：New with Original Package
Product Type: Compact I/O MTU Module for 800xA Distributed Control
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

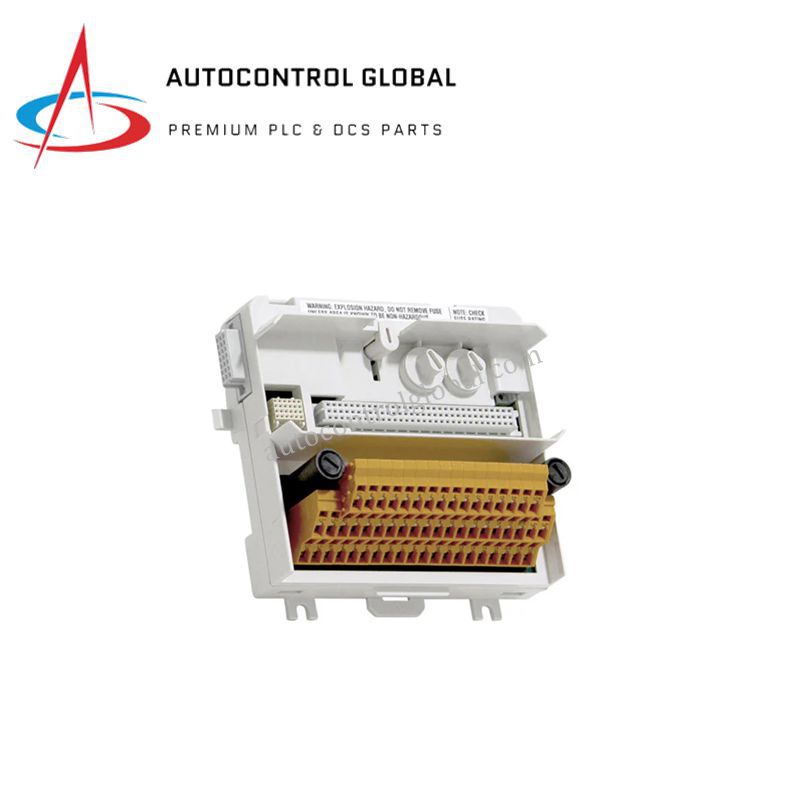

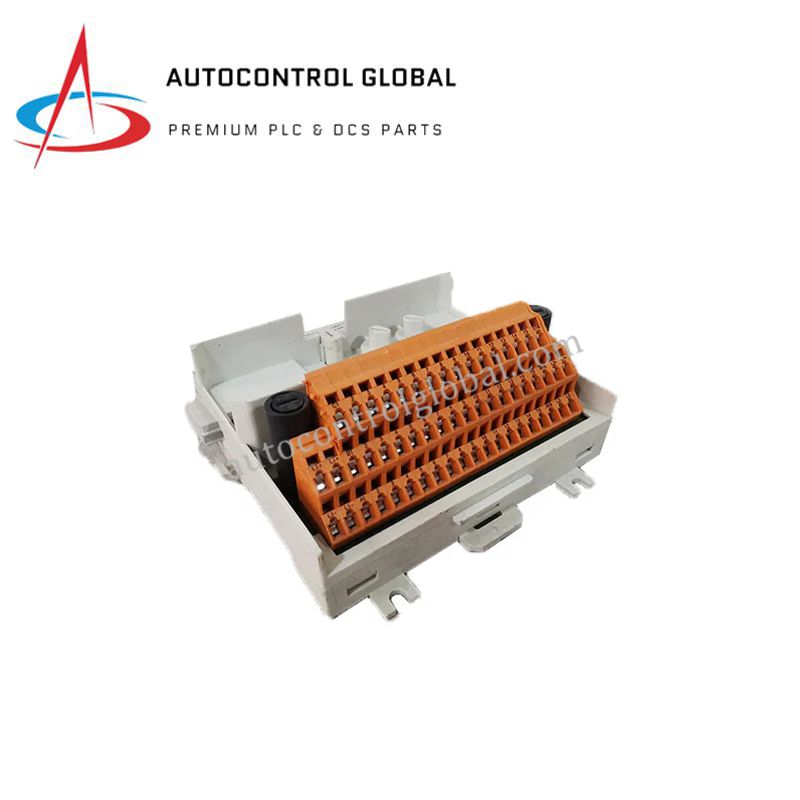

ABB TU833 Extended MTU I/O Module
Overview
The ABB TU833 is a versatile I/O Module Terminal Unit (MTU) designed for the S800 I/O system within ABB’s 800xA distributed control platform.
It supports up to 16 I/O channels, each equipped with two I/O connections and one ZP shield connection.
The module includes two isolated process voltage groups, each protected by a 6.3 A fuse, supporting up to 50 V and 2 A per channel.
The TU833 distributes the ModuleBus to the connected I/O module and passes it to the next MTU.
It also generates the correct address for each module by shifting outgoing position signals to the next MTU.
The MTU is DIN rail mountable and features a mechanical latch for secure installation.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | TU833 |
| Part Number | 3BSE038726R1 |
| Product Type | I/O Module Terminal Unit (MTU) |
| System Compatibility | ABB S800 I/O, 800xA DCS |
| I/O Channels | 16 channels (2 I/O + 1 ZP per channel) |
| Process Voltage Groups | 2 isolated groups, 6.3 A fuse each |
| Max Rated Voltage | 50 V |
| Max Rated Current | 2 A per channel |
| Dielectric Test Voltage | 500 V AC |
| Mounting Type | DIN rail with mechanical latch |
| Dimensions (W × H × D) | 64 × 170 × 58.5 mm |
| Weight | 0.21 kg |
| Features | ModuleBus distribution, address shifting, field power distribution |
| Application Areas | Industrial automation, process control, distributed I/O systems |
FAQs
Q1: How many I/O channels does ABB TU833 support?
✅ It supports 16 channels, each with two I/O connections and one ZP shield connection.
Q2: What is the maximum voltage and current per channel?
✅ Maximum 50 V and 2 A per channel, with two isolated process voltage groups.
Q3: How is the MTU mounted?
✅ The TU833 is DIN rail mountable with a mechanical latch for secure installation.
Q4: Does the module distribute ModuleBus?
✅ Yes, it distributes ModuleBus to the I/O module and forwards it to the next MTU.
Q5: What is the estimated delivery time?
✅ Standard lead time is 8–10 weeks, depending on order size and shipping method.
