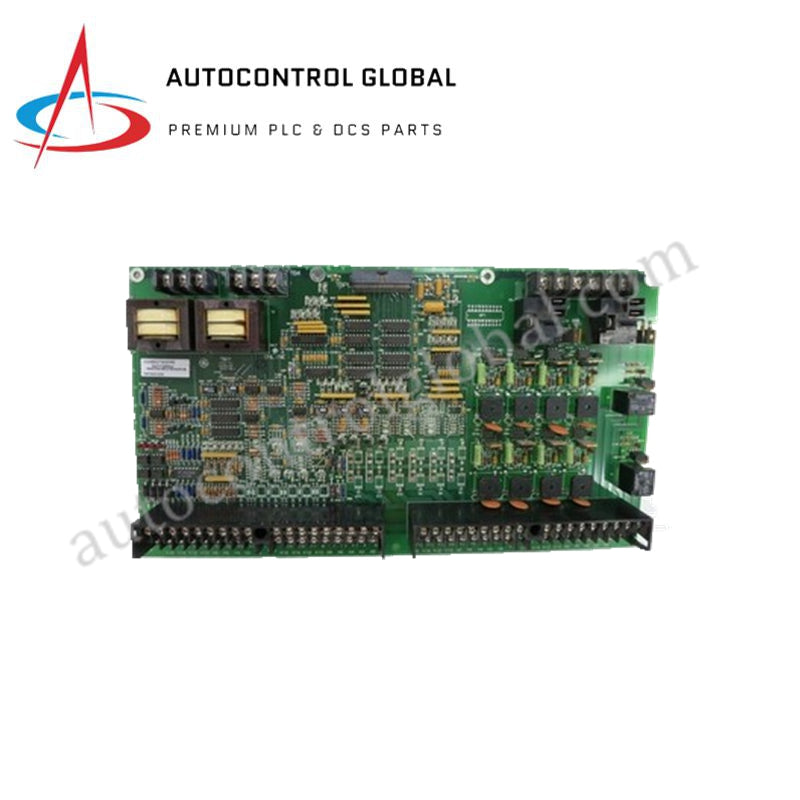

Turbine Control Termination Board | Brand New DS200DDTBG2A GE
Manufacturer: GE Fanuc
-
Part Number: DS200DDTBG2A
Condition:New with Original Package
Product Type: GE Mark V Components
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The GE DS200DDTBG2A (DDTB) functions as the primary Digital I/O Terminal Board within the Speedtronic™ Mark V turbine control and LCI (Load Commutated Inverter) systems. It provides the essential physical interface for routing discrete signals between field devices—such as limit switches, relays, and status indicators—and the core control processors. By centralizing digital signal termination, the DDTB board enables the Mark V system to monitor unit status and execute trip logic with high precision. This board ensures that electrical field transitions translate into deterministic logic states across the R, S, and T redundant cores.
Condition: 100% Brand New, New In Box (NIB).
Technical Specifications
The DS200DDTBG2A utilizes heavy-duty terminal blocks and filtered signal paths to maintain signal fidelity in high-voltage industrial environments.
| Parameter | Specification |
| Manufacturer | General Electric (GE Vernova) |
| Model Number | DS200DDTBG2A |
| System Platform | Speedtronic™ Mark V / LCI |
| Product Type | Digital I/O Terminal Board (DDTB) |
| Input Channels | Multiple isolated digital inputs (Status, Contact Closure) |
| Output Channels | Relay/Driver outputs for trips and alarms |
| Connectivity | High-density ribbon headers to TCEB/TCCB core boards |
| Power Supply | 28 V DC (Nominal) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 215 × 154 × 30 mm |
Engineering Advantages
-
Optimized Signal Routing: The DDTB board centralizes all auxiliary digital field wiring onto a single robust platform. This replaces messy point-to-point wiring with high-density ribbon cable connections to the internal core boards, reducing cabinet installation time and minimizing the risk of wiring errors during commissioning.
-
Superior EMI/RFI Suppression: Field cables often pick up significant electromagnetic interference. The DS200DDTBG2A incorporates onboard RC filters and surge suppression on every channel to neutralize noise spikes. This ensures the control system receives clean "high" or "low" states without contact bounce or false triggering.
-
Deterministic Fault Isolation: The board features clear galvanic isolation between the field-side terminals and the sensitive VME bus electronics. If an external field device shorts to ground, the DDTB protects the main control processors from damage, localizing the fault to the replaceable terminal board level.
-
TMR Redundancy Support: In Triple Modular Redundant (TMR) architectures, the DDTB facilitates the parallel routing of digital inputs to the R, S, and T cores. This allows the system to perform software-based 2-out-of-3 (2oo3) voting on critical turbine status signals, ensuring maximum unit availability.
-
Rugged Mechanical Interfacing: GE designed the G2A revision with high-retention terminal blocks that resist loosening under the continuous vibration found in turbine halls. The layout provides ample space for large-gauge field wires, facilitating easy access for maintenance and testing.
FAQs
Q: Does the DS200DDTBG2A require external power to operate?
A: The board derives its primary 28V DC logic power from the Mark V backplane via the ribbon cable connections. However, the contact wetting voltage for your field switches may require a separate supply depending on your specific cabinet power distribution configuration.
Q: How does this board differ from the DS200TCQCG1A?
A: The DDTB (DS200DDTBG2A) focuses exclusively on digital (on/off) signals and termination. The TCQC is an analog core board designed for continuous variable signals like LVDT feedback or thermocouple millivolts. They work in tandem but handle completely different signal types.
Q: Can I swap a G1A version for this G2A board?
A: The G2A revision typically includes updated circuitry for better noise immunity and component longevity. While often backward compatible, you must verify the ribbon cable pinout in your original Mark V elementary drawings to ensure the auxiliary I/O mapping remains identical for your unit.
Q: What indicates a failure on the DDTB board?
A: If multiple field devices on the same board report "Diagnostic Alarms" or if contact statuses appear "frozen" in the HMI despite physical switch transitions, the DDTB may have a blown surge suppressor or a damaged ribbon header. Use a multimeter to verify the signal transition at the terminal block before replacing the board.
