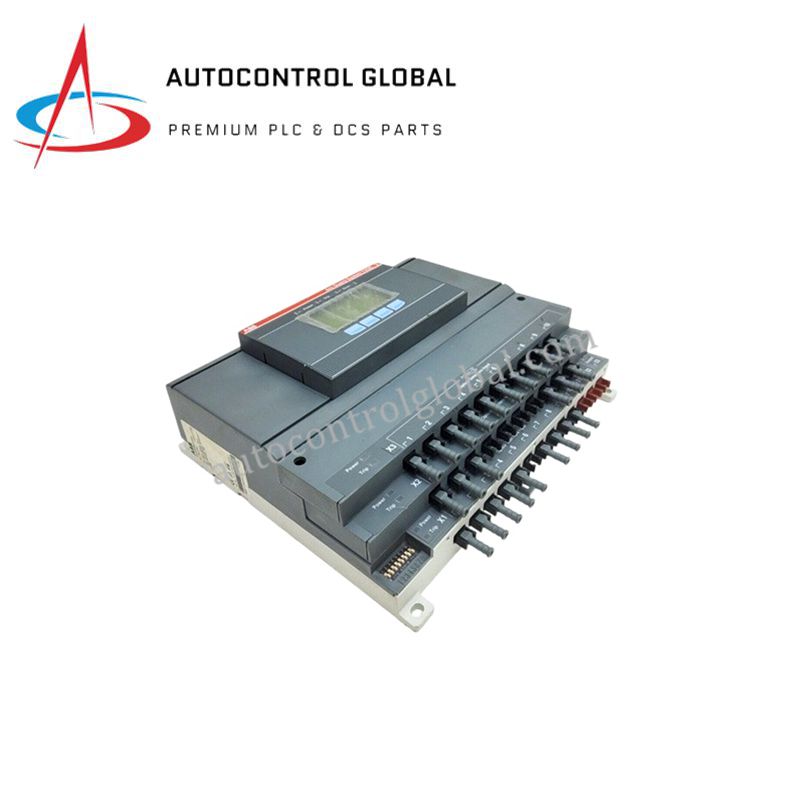

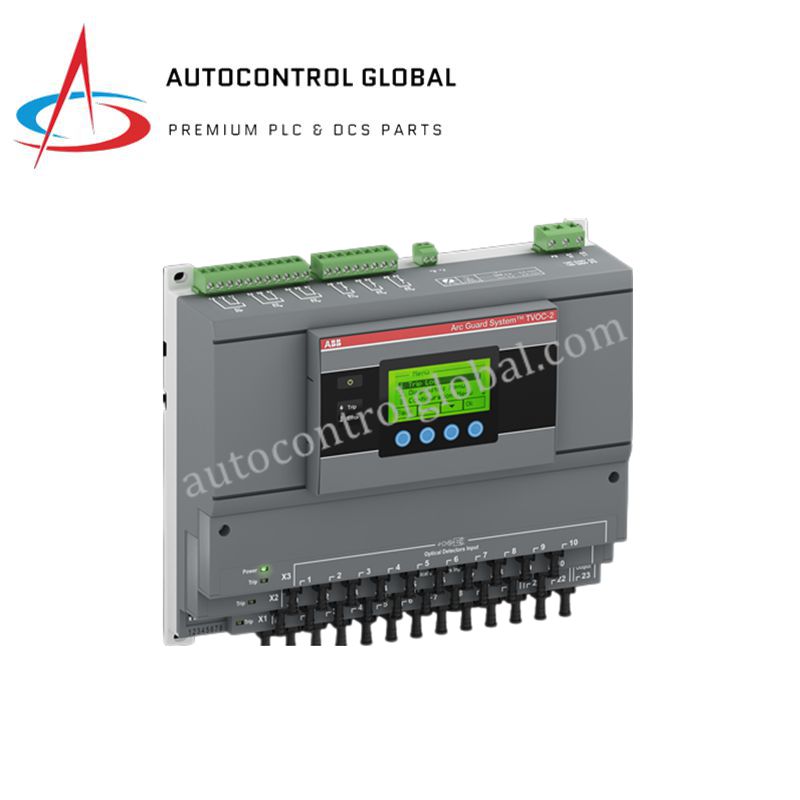

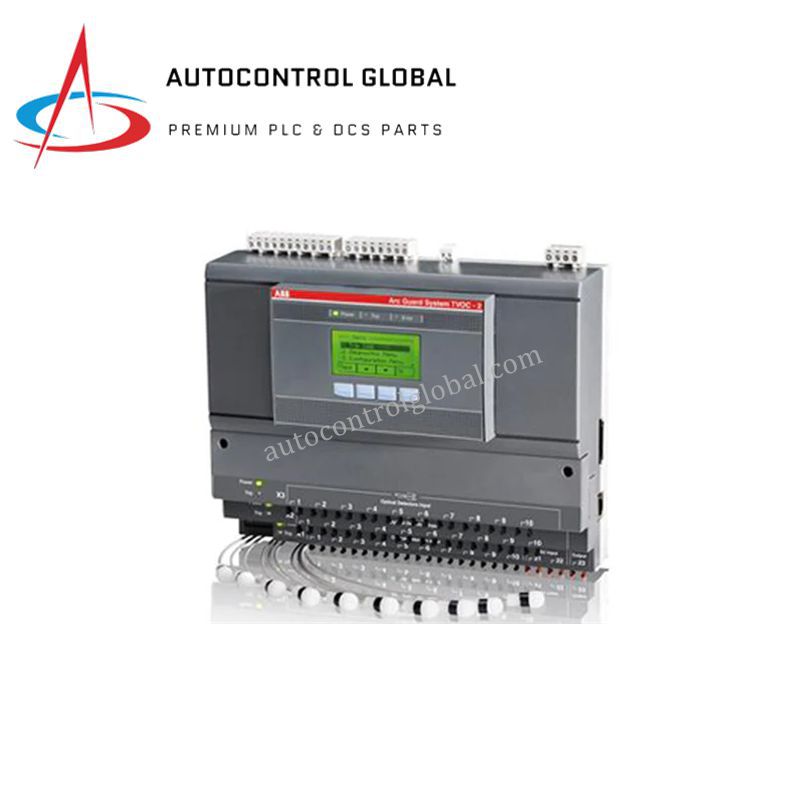

TVOC-2-240 ABB | Arc Flash Detection Module for Safety Systems
Manufacturer: ABB
-
Part Number: 1SFA664001R1001 TVOC-2-240
Condition：New with Original Package
Product Type: Arc Flash Detection Module for Safety Systems
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The ABB TVOC-2-240 (1SFA664001R1001) is the intelligent Arc Monitor Unit within the ABB Arc Guard System™, designed to detect arc flash light emissions and initiate rapid power disconnection in less than one millisecond. By combining optical detection with high-speed tripping signals, it significantly enhances operator safety and minimizes equipment damage during electrical faults.
This main unit supports up to ten light sensors and three breaker outputs, offering true zone-selective protection. Moreover, it can be expanded with two extension modules, supporting up to thirty detectors in total—making it ideal for complex power distribution networks. The TVOC-2-240 features a user-friendly HMI for external door mounting and communicates seamlessly via Modbus RTU or BACnet MS/TP, allowing easy integration with modern automation and building management systems.
Technical Specifications
| Attribute | Specification |
|---|---|
| Product ID | 1SFA664001R1001 |
| Model | TVOC-2-240 |
| System Type | Arc Guard System™ Arc Monitor Unit |
| Supply Voltage | 100–240 V AC / 100–250 V DC, 50/60 Hz |
| Detector Inputs | 10 (expandable to 30 with extension units) |
| Breaker Outputs | Up to 3 trip outputs with zone selectivity |
| Response Time | < 1 millisecond |
| Communication Protocols | Modbus RTU, BACnet MS/TP |
| Output Signals | Relay and digital outputs |
| Operating Temperature | -25°C to +70°C |
| Power Loss | 1.5 W |
| Mounting Options | Wall-mounted or DIN rail |
| Auxiliary Contacts | 3 NO + 3 CO (SPDT) |
| Terminal Type | Screw terminals |
| Dimensions (L × W × H) | 80 × 210 × 230 mm |
| Weight | 1.2 kg |
| Customs Tariff Code | 85389099 |
| Country of Origin | United States / China |
| Minimum Order Quantity | 1 piece |
| Package Gross Weight | 1.27 kg |
FAQ
Q1: What does the ABB TVOC-2-240 do?
A1: It monitors for arc flash light emissions and triggers power disconnection to prevent damage or injury.
Q2: How many detectors can be connected?
A2: The main unit supports 10 detectors and can be expanded up to 30 using two extension modules.
Q3: What communication protocols are supported?
A3: The unit supports Modbus RTU and BACnet MS/TP for integration with control and monitoring systems.
Q4: Can it be wall-mounted?
A4: Yes, the unit can be installed on a wall or mounted on a DIN rail, offering installation flexibility.
Q5: How fast does it respond to an arc flash?
A5: The TVOC-2-240 detects and reacts to arc flashes in less than one millisecond.
