TY801 3BSE028112R1 ABB | Control System Accessory
Manufacturer: ABB
-
Part Number: TY801 3BSE028112R1
Condition：New with Original Package
Product Type: Control System Accessory
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description

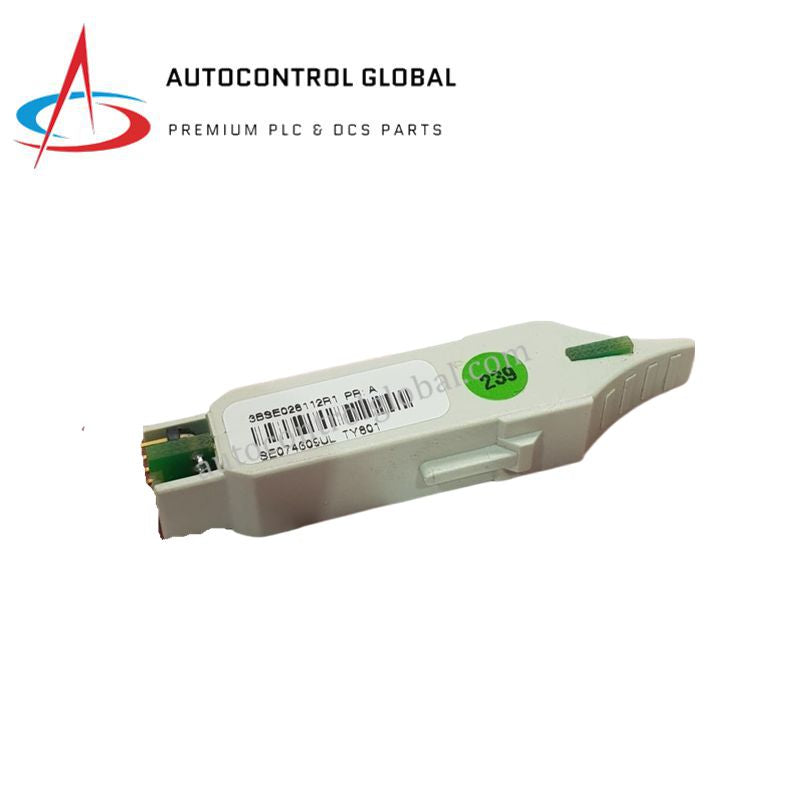

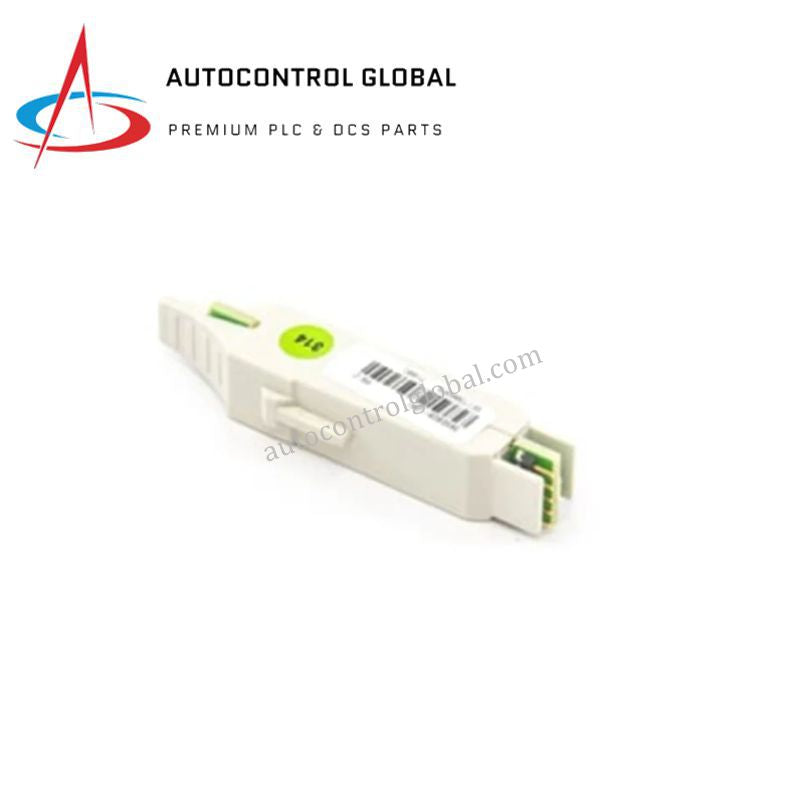

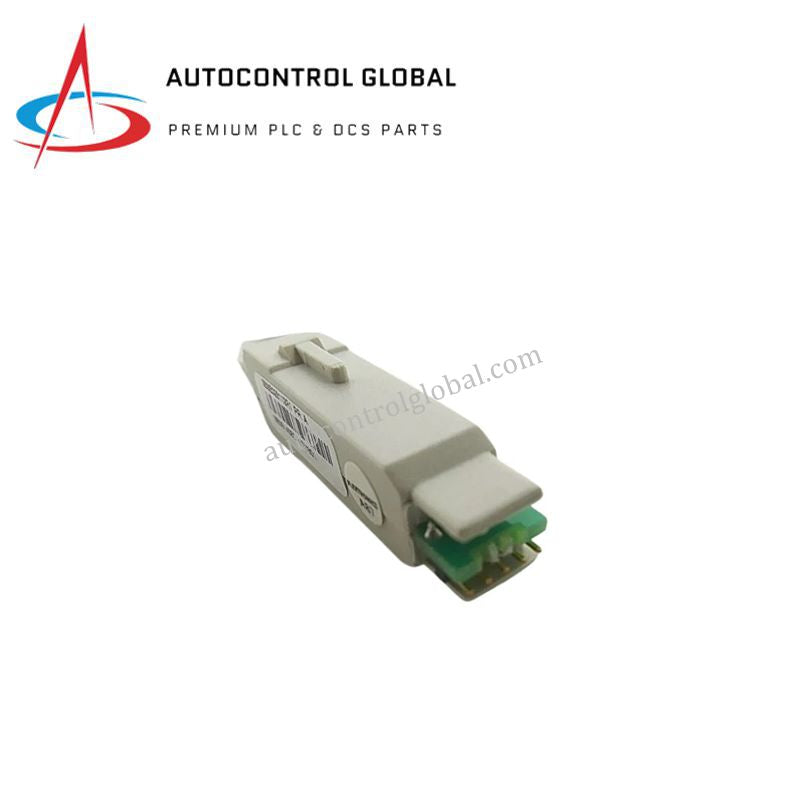

The ABB TY801, part number 3BSE028112R1, is a compact shunt board designed for ABB’s S800 I/O system. It provides precise current measurement using dual 125-ohm shunt resistors, ensuring accurate signal conversion for analog input modules such as AI845 and AI880.
The TY801 mounts seamlessly on TU844 or TU845 termination units, enabling reliable integration into distributed control systems. Its small footprint and robust performance make it ideal for industrial automation applications requiring high-accuracy analog input processing.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | TY801 |
| Part Number | 3BSE028112R1 |
| Product Type | Shunt Board / Control System Accessory |
| Shunt Resistance | 125 + 125 Ω |
| Compatible Modules | AI845, AI880 |
| Compatible Termination Units | TU844, TU845 |
| Dimensions (L × W × H) | 62 mm × 15.5 mm × 11 mm |
| Weight | 0.06 kg |
| RoHS Compliance | Yes, per EU Directive 2011/65/EU |
| WEEE Category | Category 5 – Small Equipment |
| Country of Origin | Sweden |
| Customs Tariff Number | 8533210000 |
| Package Quantity | 1 piece (minimum order) |
FAQ
Q1: What is the purpose of the ABB TY801?
A1: It functions as a shunt board for precise current measurement in S800 I/O analog input modules.
Q2: Which analog input modules are compatible?
A2: The TY801 works with AI845 and AI880 analog input modules.
Q3: Can it be mounted on all termination units?
A3: It is compatible specifically with TU844 and TU845 termination units.
Q4: Is this product brand new?
A4: Yes, the ABB TY801 is original, new, and ready to ship via DHL or FedEx.
Q5: What is the minimum order quantity?
A5: The minimum order quantity is 1 piece, but 16-piece lots are available.
Q6: Is this product RoHS compliant?
A6: Yes, it complies with EU Directive 2011/65/EU.
