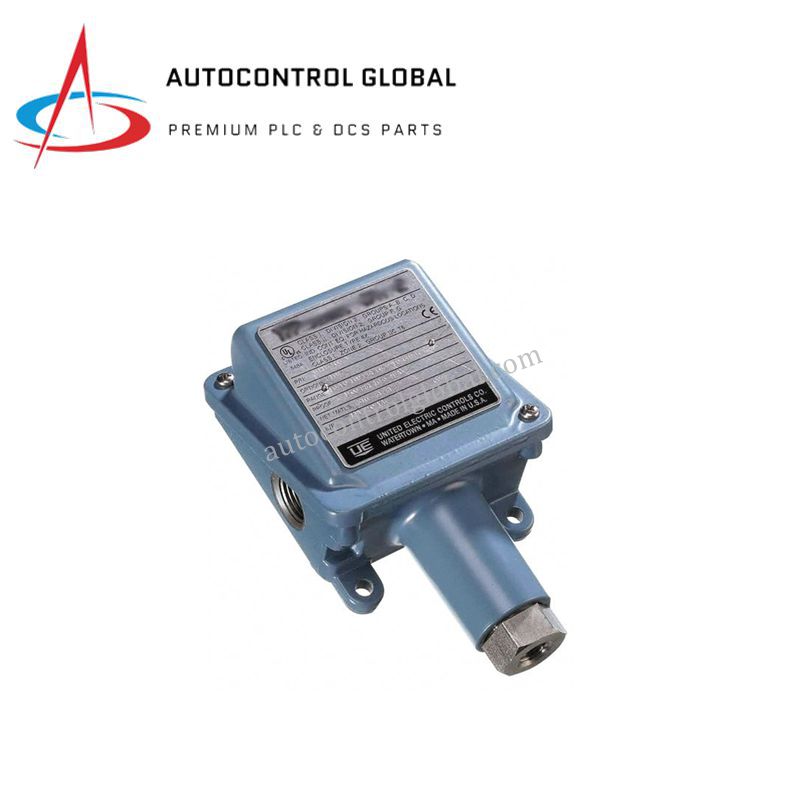

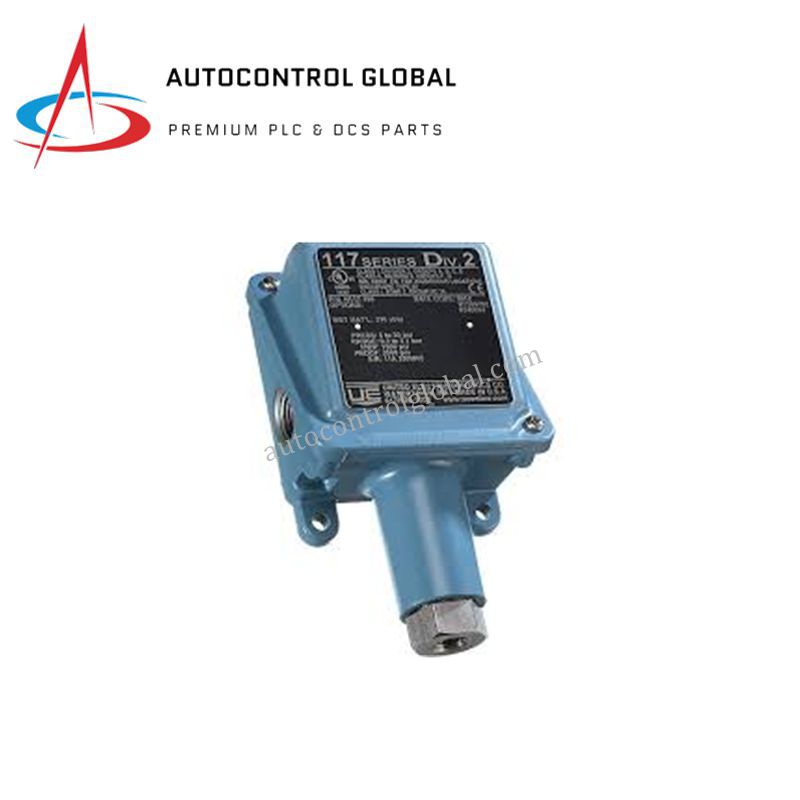

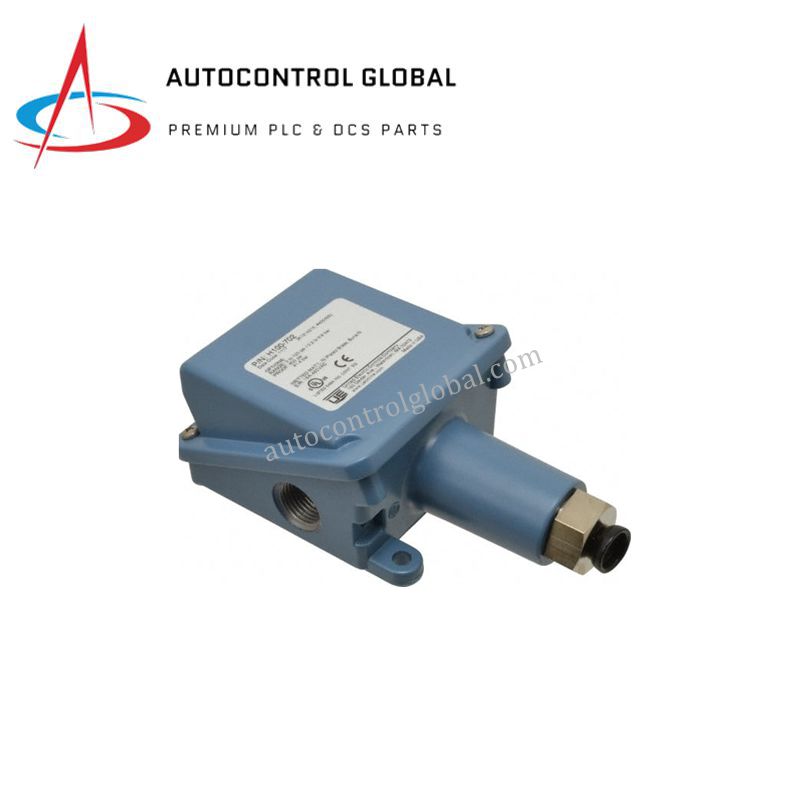

United Electric H100-193 | Adjustable Pressure Switch
Manufacturer: ABB
-
Part Number: H100-193
Condition：New with Original Package
Product Type: Adjustable Pressure Switch
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
United Electric H100-193 | Adjustable Pressure Switch
Product Overview
The H100-193 from United Electric (UE) is a high-performance adjustable pressure switch designed for industrial applications requiring precise and reliable pressure control. It features a wide pressure range of 20–500 psi, a welded 316 stainless steel diaphragm, and a tamper-resistant set point lock. Its epoxy-coated aluminum housing ensures durability in harsh environments, making it suitable for pumps, compressors, fire protection, and fluid power systems.
This switch offers SPDT contacts with a high contact rating, ensuring dependable operation even under heavy-duty conditions. Its NEMA 4X enclosure provides protection against dust, water, and corrosion, extending service life in challenging industrial settings.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | H100-193 |
| Manufacturer | United Electric (UE) |
| Type | Adjustable Pressure Switch |
| Pressure Range | 20 to 500 psi |
| Deadband | 4 to 30 psi |
| Contact Type | SPDT (Single-Pole Double-Throw) |
| Contact Rating | 15 A @ 125/250/480 VAC |
| Accuracy | ±1.5% of full scale |
| Diaphragm Material | Welded 316 stainless steel |
| Process Connection | 1/2" FNPT |
| Housing Material | Epoxy-coated cast aluminum |
| Enclosure Rating | NEMA 4X |
| Direction | Uni-directional pressure measurement |
| Applications | Pumps, compressors, fire protection, fluid power systems |
FAQ
Q1: What is the pressure range of the H100-193?
A1: It supports 20 to 500 psi, suitable for a wide range of industrial applications.
Q2: What type of contact does this switch use?
A2: The H100-193 uses SPDT (Single-Pole Double-Throw) contacts.
Q3: What materials are used for the diaphragm and housing?
A3: It features a welded 316 stainless steel diaphragm and epoxy-coated aluminum housing.
Q4: Can this switch be used in outdoor or harsh environments?
A4: Yes, its NEMA 4X enclosure protects against dust, water, and corrosion.
Q5: What industries commonly use the H100-193?
A5: It is ideal for pumps, compressors, fire protection systems, and fluid power systems.
