VE4001S2T2B1 | Emerson DeltaV™ 24VDC Discrete Input Card

Product Description

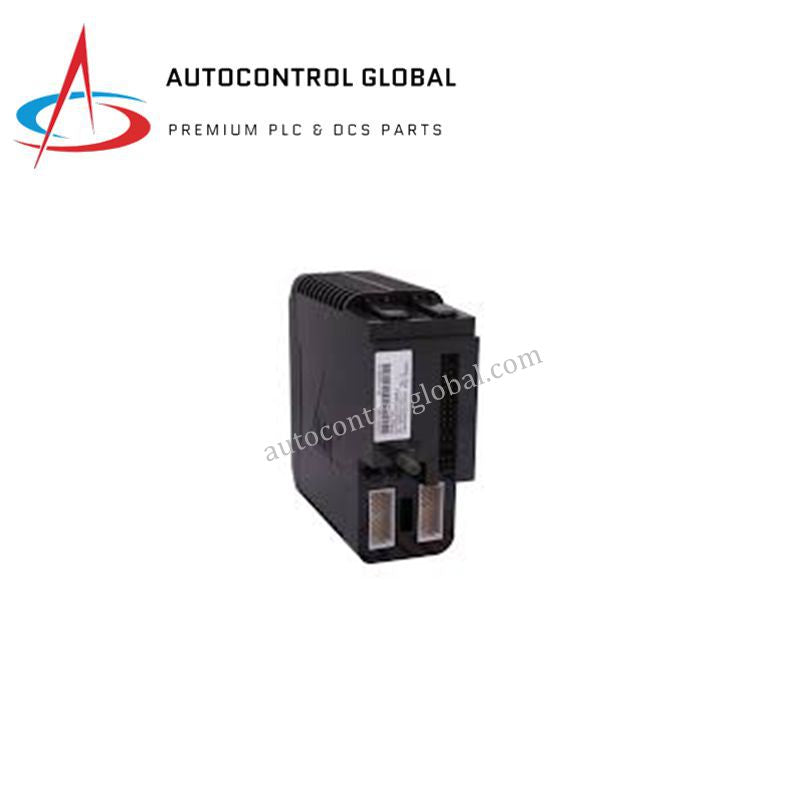

The Emerson VE4001S2T2B1 is a Discrete Input (DI) module from the DeltaV™ Series 2 I/O family. It features 8 dry contact input channels, each operating at 24 VDC, and is designed to detect the open or closed status of field devices such as push buttons, limit switches, and relay contacts. This module is ideal for standard industrial control applications, offering reliability and ease of integration into DeltaV™ distributed control systems.

The VE4001S2T2B1 is part of a complete I/O system when paired with the KJ3201X1-BA1 logic board and the KJ4001X1-CA1 termination block. With its hot-swapping capability, it can be replaced without shutting down the system, providing continuous operation in demanding environments. The module is engineered to withstand harsh field conditions, including extreme temperatures and airborne contaminants, making it perfect for industries such as chemical processing, oil & gas, and power generation.

Technical Specifications

• Model Number: VE4001S2T2B1

• Product Type: Discrete Input Card

• System Compatibility: Emerson DeltaV™ Series 2 I/O

• Input Channels: 8 dry contact inputs

• Input Voltage: 24 VDC

• Logic Board: KJ3201X1-BA1

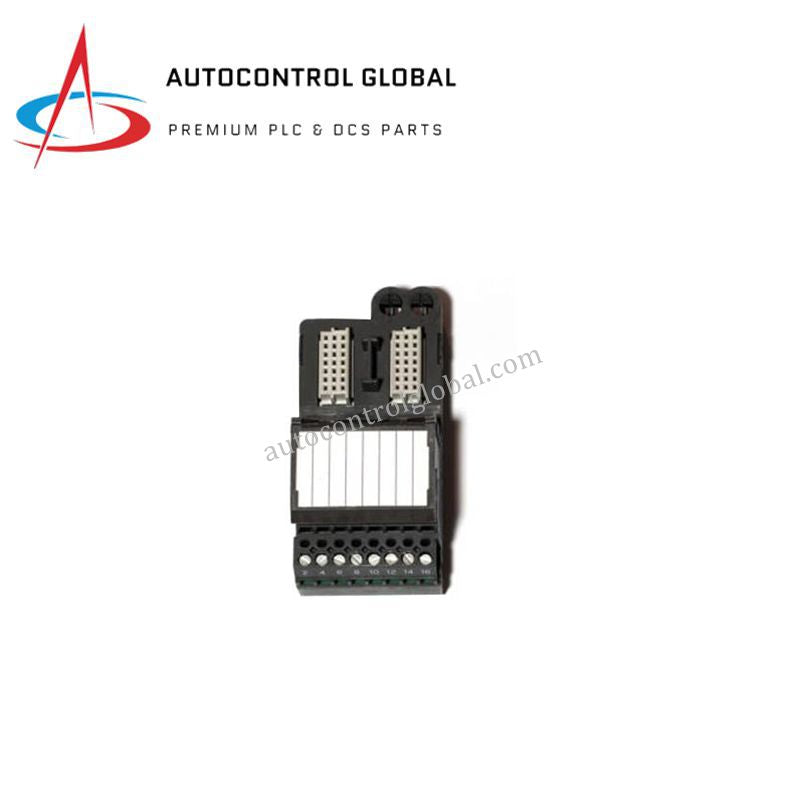

• Termination Block: KJ4001X1-CA1

• Mounting: DIN rail or panel mount

• Environmental Rating: Suitable for extreme field conditions

• Certifications: CE, RoHS

• Warranty: Standard Emerson warranty

• Country of Origin: USA

FAQ

Q1: What type of inputs does the VE4001S2T2B1 module support?
A1: The VE4001S2T2B1 supports 8 dry contact inputs, ideal for detecting the open or closed status of field devices.

Q2: Can the VE4001S2T2B1 module be replaced without shutting down the system?
A2: Yes, it supports hot-swapping, allowing replacement without the need for system shutdown.

Q3: What is the input voltage for the VE4001S2T2B1 module?
A3: The VE4001S2T2B1 module operates at 24 VDC input voltage.

Q4: What industries is the VE4001S2T2B1 module suitable for?
A4: It is suitable for industries such as chemical processing, oil & gas, and power generation.

Q5: What is the warranty for the VE4001S2T2B1 module?
A5: The module comes with a standard Emerson warranty, with an additional 2-year warranty from Radwell.
