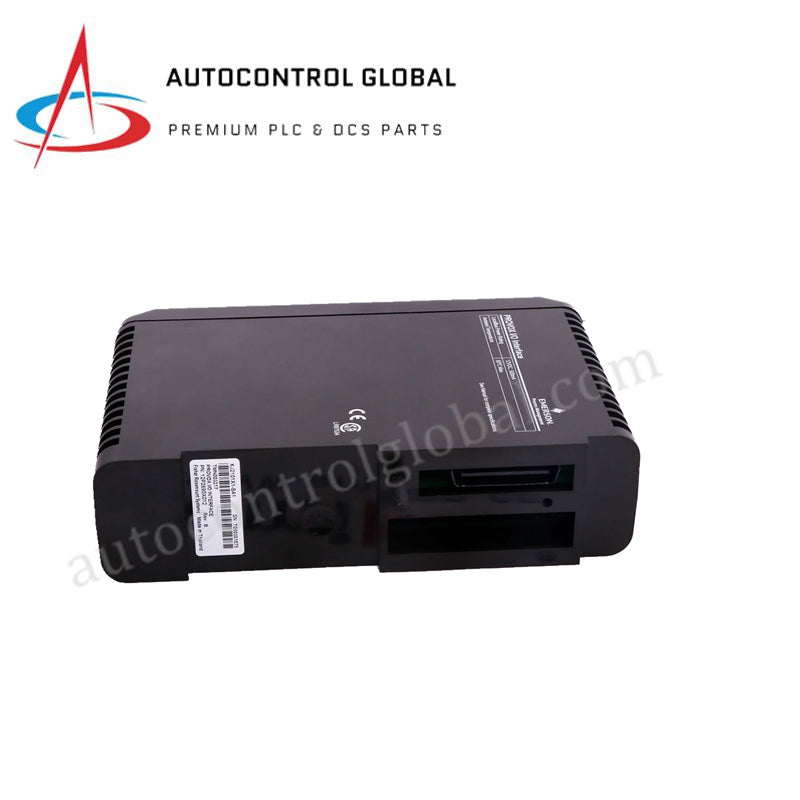

VE4005S2B1 Emerson Analog Output Card | New & Original Stock
Manufacturer: GE Fanuc
-
Part Number: VE4005S2B1
Condition：New with Original Package
Product Type: Analog Output Modules
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Emerson VE4005S2B1 DeltaV S-Series Module
The Emerson VE4005S2B1 serves as the primary VE4005S2B1 Analog Output Card utilized to execute current loop signaling tasks across DeltaV Distributed Control System platforms.
Hardware Specifications
| Parameter | Specification |
| Model | VE4005S2B1 |
| Brand | Emerson (DeltaV) |
| Origin | USA |
| Weight | 0.10 kg (Net module); 2.0 kg (Shipping standard) |
| Dimensions | 125 x 41 x 105 mm |
| Operating Temp | -40 to +70 deg C |
| Power Consumption | Handled via DeltaV backplane interface (Field power distribution: 35 VDC @ 1 A maximum) |
| Number of Channels | 8 channels |
| Output Signal Range | 4 to 20 mA nominal span |
| Communication Protocol | HART digital modulation on analog lines |
| Voltage Range | 18 to 30 VDC (24 VDC nominal) |
| Isolation Type | Field-side to system-side galvanic isolation |
| Mounting Base | DeltaV S-Series I/O carrier interface |
| Termination Type | Screw-clamp terminal array |
| Wire Size Spectrum | 12 to 24 AWG |
| Relative Humidity | 5 to 95% RH, non-condensing |
| Airborne Contaminants | ISA-S71.04 Class G3 compliance |
| Mechanical Shock | 10 g, 11 ms half-sine wave impulse |
| Vibration Limits | 1 mm displacement (2 to 13.2 Hz); 0.7 g acceleration (13.2 to 150 Hz) |
4-20 mA HART Loop Protocol and Channel-to-Channel Isolation
The module hardware provides direct physical termination for 8 analog output loops operating on the 4-20 mA HART loop protocol. Digital bi-directional FSK commands modulate directly onto the standard analog current signals to interface with field actuators and positioners without disrupting the primary analog variables. Galvanic isolation barriers separate the field wiring networks from the sensitive internal backplane logic processing nodes. Depending on the targeted S-Series I/O card pairing, channel-to-channel isolation parameters prevent ground loop currents and cross-talk from degrading neighboring current loops when operating near high-induction industrial machinery.
Frequently Asked Questions
Q: What are the mandatory physical safety restrictions for hot-swapping this terminal block assembly?
A: Hot-swapping of the VE4005S2B1 block is strictly permitted only under the conditions that the corresponding S-Series I/O module is completely extracted from the front faceplate and all active field wiring circuits are fully disconnected from the screw-clamp terminal array.
Q: How does the mechanical configuration safeguard the module against incorrect card insertions?
A: The hardware incorporates an adjustable rotary keying system on the chassis base. This keying dial must be aligned to match the mechanical interlock configuration profile of the assigned analog output card type, preventing physical damage caused by inserting mismatched I/O hardware.
Field Installation Guidelines
- Mount the assembly directly onto the matching S-Series I/O carrier structure, validating that the locking pins engage fully with the track rail.
- Strip 12 to 24 AWG field wires to the prescribed mechanical length and terminate them into the screw-clamp blocks at the designated torque specification.
- Maintain physical isolation between the 4-20 mA HART loop output paths and any AC power distribution or motor control wiring lines within the marshalling panel.
- Connect all cable shields to the designated single-point instrumentation ground bus bar inside the local control cabinet enclosure.
- Confirm that the local operational environment remains within the certified Class I, Division 2, Groups A-D boundary criteria before energizing the 24 VDC loop distribution circuits.
