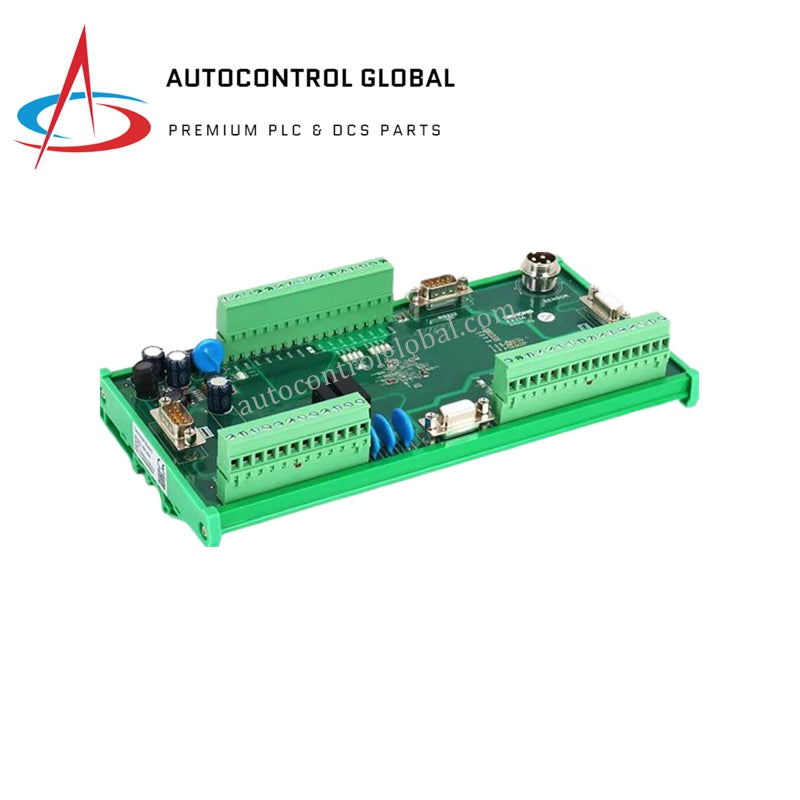

WEIHONG EX22A3 Terminal Board In Stock

Overview

The Weihong EX22A3 Terminal Board is a non-smart device specifically designed to provide reliable control for various CNC (Computer Numerical Control) applications. As an upgraded version of the EX22A2, it offers enhanced performance while maintaining compatibility with the same ports. This terminal board is built to withstand the harsh conditions typical of CNC machining environments, ensuring durability and reliability. Its simple wiring and configuration facilitate quick setup and seamless operation.

Technical Specifications

Input Ports:

• Universal Input Port: Supports diverse signal inputs.
• Input Port Effective Level Configuration Port: Allows for customization of input signal levels.

Output Ports:

• Universal Output Port: Provides versatile signal outputs.
• Analog Voltage Output Interface: For precise control of analog devices.

Interfaces:

• Extension Port: Expands connectivity options.
• Handwheel Interface: Facilitates manual control adjustments.
• Ground Interface: Ensures stable grounding for electrical safety and signal integrity.

Power:

• Power Connector: Provides power supply connections necessary for operation.

Connectivity:

• Versatile Connectivity Options: Supports a wide range of signal inputs and outputs, enhancing its adaptability to different CNC systems.

Durability:

• Built for Harsh Conditions: Designed to endure the demanding environment of CNC machining operations, ensuring long-lasting performance.

Ease of Use:

• Simple Wiring and Configuration: Streamlined setup process for quick and easy installation, promoting seamless integration into existing CNC setups.

Key Features

• Enhanced Performance: Upgraded from the EX22A2, offering improved functionality and reliability.
• Compatibility: Maintains port compatibility with its predecessor, simplifying upgrades.
• Durability: Constructed to withstand the rigors of CNC machining environments, including exposure to dust, vibrations, and temperature fluctuations.
• User-Friendly: Easy-to-install design with straightforward wiring and configuration, reducing setup time and complexity.
• Versatile Applications: Suitable for a wide range of CNC applications, providing reliable control for machinery and processes.
