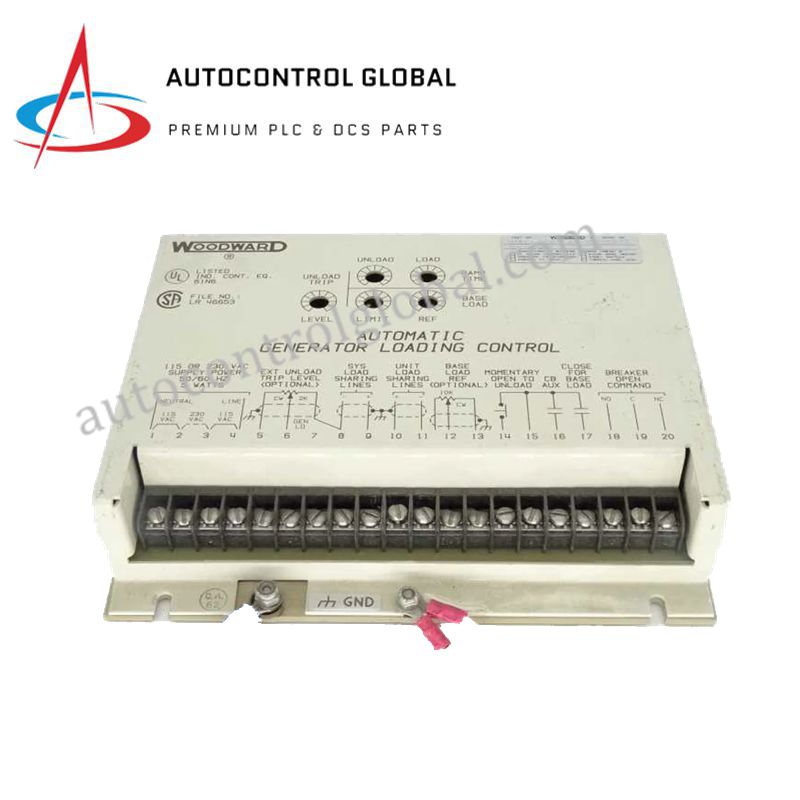

Woodward 9905-096 | Generator Load Sharing & Voltage Regulator
Manufacturer: Woodward
-
Part Number: 9905-096
Condition：New with Original Package
Product Type: Generator Load Sharing & Voltage Regulator
-
Country of Origin: GERMANY
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The Woodward 9905-096 Automatic Generator Loading Control (AGLC) delivers precise voltage regulation and load management for industrial and utility power systems. Designed for demanding environments, it ensures automatic load sharing between multiple generators and the power grid, improving overall system efficiency. Moreover, its rugged metal chassis provides exceptional shock resistance, making it suitable for marine, industrial, and backup power applications.
This module maintains generator stability under varying loads while coordinating with Woodward governors and other control systems. In addition, its wide operating range allows reliable performance in extreme temperatures, ensuring consistent output even in challenging conditions.
Technical Specifications – Woodward 9905-096
| Parameter | Details |
|---|---|
| Model | 9905-096 |
| Manufacturer | Woodward |
| Series | AGLC (Automatic Generator Loading Control) |
| Input Voltage | 170–264 VAC, 50/60 Hz |
| Power Consumption | 5 VA |
| Operating Temperature | –40 °C to +85 °C (–40 °F to +185 °F) |
| Chassis | Metal, rugged construction |
| Dimensions | 8.5 in (W) × 7.5 in (H) × 2 in (D) |
| Weight | 1.7 kg (2.35 lbs) |
| Shock Resistance | Up to 60 Gs |
| Control Functions | Automatic load sharing, voltage regulation, generator synchronization |
| Certifications | UL and CSA listed |
FAQ
Q: What is the primary function of the Woodward 9905-096?
A: It automatically manages generator load sharing and voltage regulation to ensure stable system performance.
Q: Can the 9905-096 operate under extreme temperatures?
A: Yes, it functions reliably from –40 °C to +85 °C (–40 °F to +185 °F).
Q: Is it suitable for industrial or marine environments?
A: Yes, its rugged metal chassis and 60 G shock resistance make it ideal for demanding applications.
Q: What certifications does the module have?
A: UL and CSA listed for compliance with international safety standards.
Q: Does Radwell offer a warranty?
A: Yes, a 2-year Radwell warranty is included even though the manufacturer warranty may not apply.
