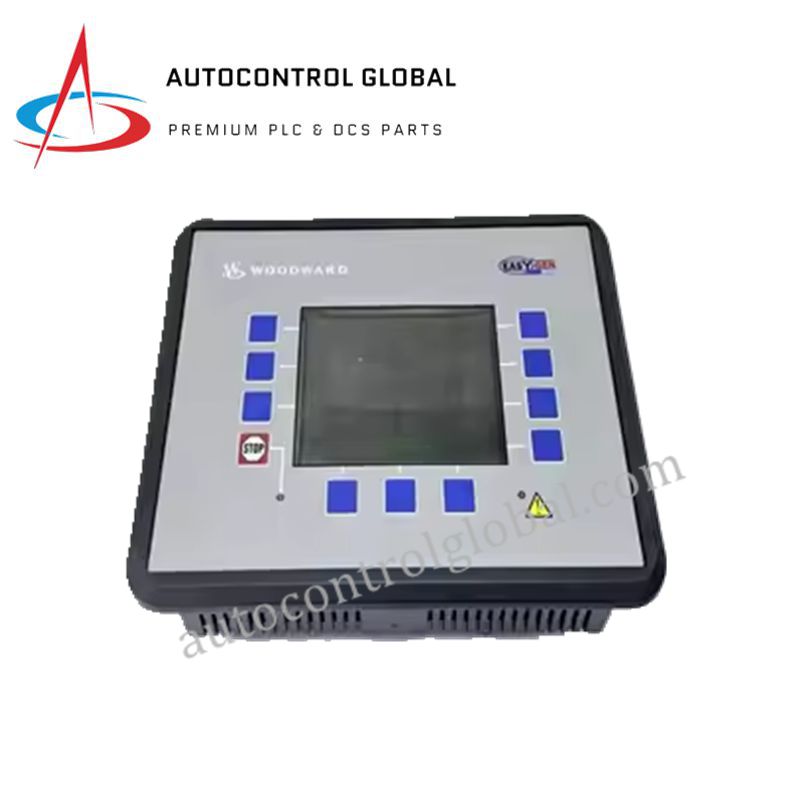

Woodward easYgen-1500 8440-1750 Genset Controller Digital
Manufacturer: Woodward
-
Part Number: EASYGEN 1500
Condition：New with Original Package
Product Type: Digital Genset Controller
-
Country of Origin: GERMANY
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Woodward easYgen‑1500 / 8440-1750 is a digital genset controller from the EasyGen-1000 Series designed for single-unit generator operation. It provides start/stop control, breaker management, generator protection, and measurement functions for reliable genset monitoring.
Engineered for stand-alone generators, emergency backup power systems, and industrial/commercial facilities, the easYgen‑1500 ensures robust, precise control while supporting flexible configuration via FlexApp™ and custom logic sequences using LogicsManager™.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Woodward, USA |
| Model Number | easYgen‑1500 |
| Part Number | 8440-1750 |
| Series | EasyGen-1000 Series |
| Product Type | Digital Genset Controller |
| Power Supply | 8–35 VDC nominal (12/24 VDC) |
| Discrete Input Range | 12/24 VDC |
| Power Consumption | <0.15 W |
| Display | DynamicsLCD™ 128×64 pixel graphical LCD with soft keys |
| Voltage Measurement | True RMS, 3-phase up to 480 VAC (max 600 VAC) |
| Frequency Measurement | 45–65 Hz |
| Current Measurement | Up to 5 A via CT inputs |
| Breaker Control Modes | 0-CB, 1o, 1oc, 2oc |
| Inputs | Configurable digital inputs for status and alarms |
| Outputs | Relay outputs for breaker control and alarms |
| Communication | RS‑485 Modbus RTU Slave, CANopen |
| Protection Functions | Over/under voltage (59/27), over/under frequency (81O/U), overload (50/51), phase sequence (47), synchronism check (25) |
| Operating Temperature | –25 °C to +70 °C |
| Storage Temperature | –25 °C to +70 °C |
| Humidity | Up to 95%, non-condensing |
| Protection Rating | IP54 front panel, IP20 rear terminals (IP65 optional) |
| Marine Approvals | GL, LR |
