Network Integration Serial Device Servers | Honeywell XSDRIN-03
Manufacturer: HONEYWELL
-
Part Number: XSDRIN-03
Condition：New with Original Package
Product Type: Serial Device Servers
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

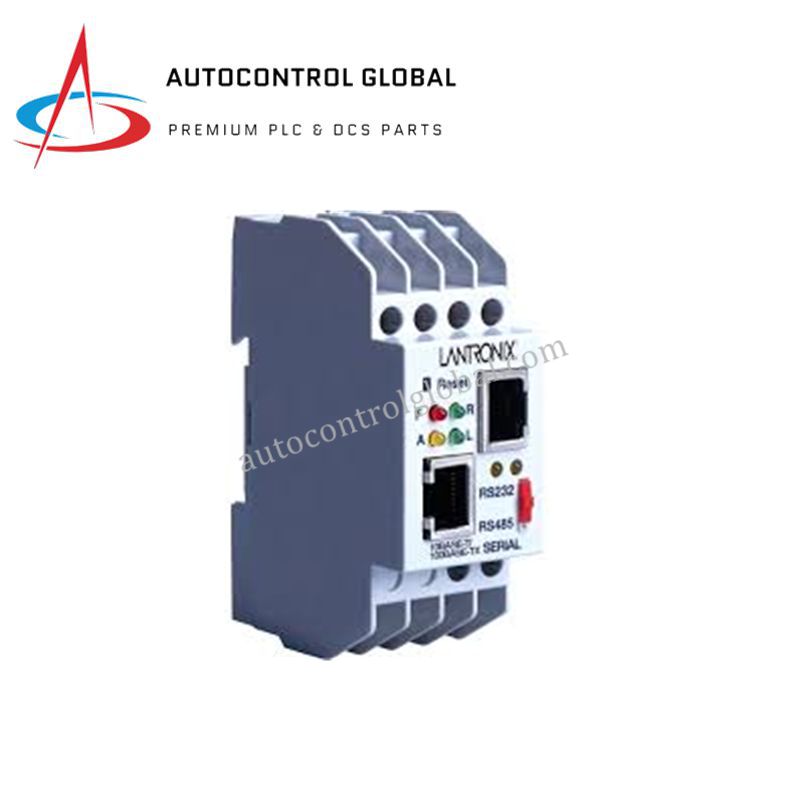

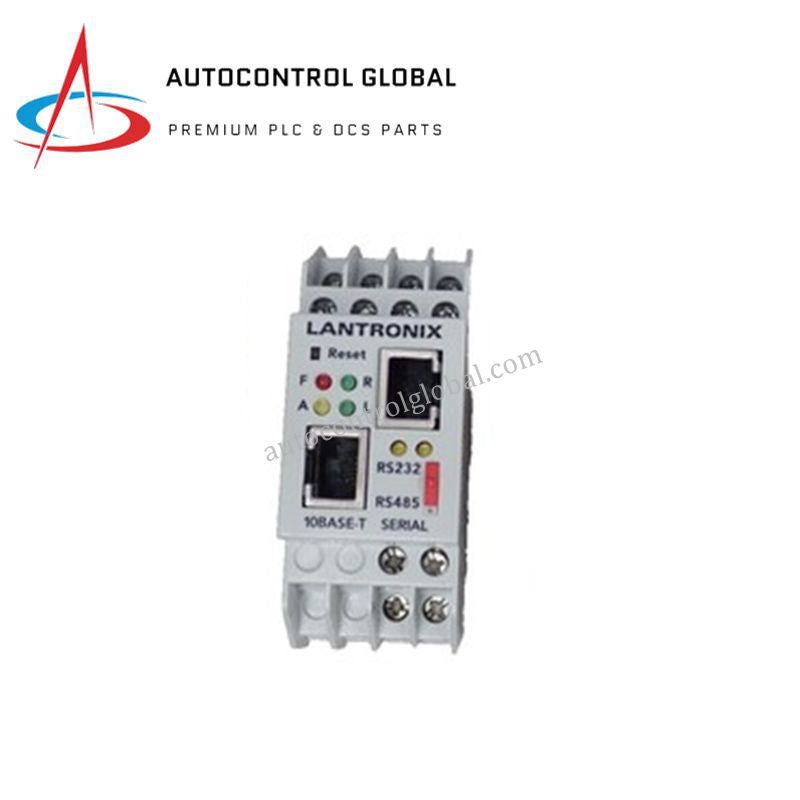

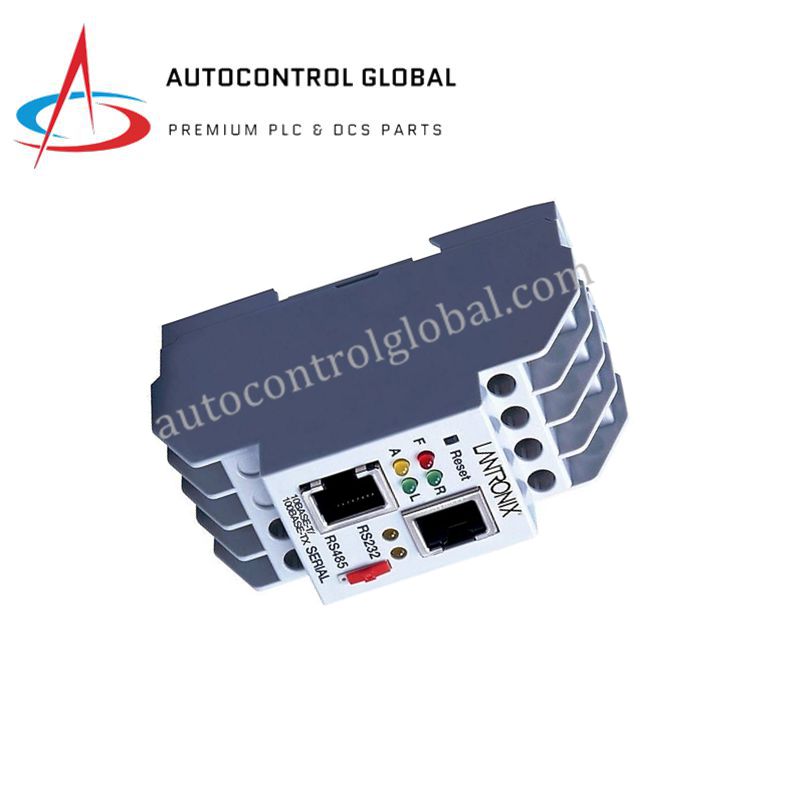

Honeywell XSDRIN-03 Serial Device Server
The Honeywell XSDRIN-03, also cataloged as the XSDRIN-03 Serial Device Server, operates as a dedicated hardware component for converting serial field signals to Ethernet data frames within Honeywell network integration platforms. Configured for field data bridging, the device establishes bi-directional transmission paths between legacy physical layers and modern deterministic automation networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | XSDRIN-03 |
| Brand | Honeywell (powered by Lantronix) |
| Origin | USA |
| Weight | 0.385 kg |
| Dimensions | 60 x 36 x 90 mm |
| Operating Temp | 0 to +60 deg C |
| Power Consumption | Operational range of 9-30 VDC |
| Serial Interfaces | RS-232, RS-422, RS-485 |
| Ethernet Support | 10Base-T / 100Base-TX |
| Serial Data Rates | Up to 115.2 kbps |
| Ethernet Data Rates | 10 Mbps / 100 Mbps |
| Port Count | 2 serial ports |
| Processor | DSTni-EX embedded processor |
| Mounting | DIN-rail |
| Certifications | CE, UL508, CSA, TUV |
Network Integration & Channel Isolation
The communication architecture provides integrated channel-to-channel isolation parameters across the RS-232, RS-422, and RS-485 physical pins, neutralizing common-mode voltage spikes before they propagate to the core processing unit. A dedicated DSTni-EX embedded processor coordinates data serialization, maintaining predictable protocol conversion latencies when pushing data onto 10Base-T or 100Base-TX Ethernet networks. This design configuration allows legacy industrial protocols to operate safely alongside standard 4-20 mA HART loop protocol architectures within the same field termination assembly enclosure without inducing electromagnetic signal degradation.
Frequently Asked Questions
Q: How does the unit manage concurrent communication tasks across different serial protocols?
A: The embedded processor directs incoming traffic from the 2 discrete serial ports independently, executing standard physical layer isolation to prevent electrical interference when mixing RS-232 and RS-485 interfaces on the same module chassis.
Q: What are the backplane or input power supply voltage boundaries for stable operation?
A: The hardware operates on an external power input span ranging from 9 VDC to 30 VDC, allowing direct field deployment via standard industrial power rails.
Q: Does this device require active firmware configuration changes when migrating between RS-422 and RS-485 networks?
A: Transitioning between differential communication standards requires checking physical pin connections and verifying software configuration settings to align data rates with the 115.2 kbps hardware limit.
Field Installation Guidelines
- Disconnect all input power sources from the marshaling terminal blocks before snapping the module onto the DIN rail to prevent component exposure to electrical arcs.
- Ground the DIN-rail mounting bracket directly to the main cabinet instrumentation ground bar using low-impedance copper conductors to ensure proper surge redirection.
- Route all serial communication lines (RS-232/422/485) through separate shielded conduits, ensuring physical segregation from high-voltage AC cables.
- Verify that terminal block connections are locked tightly and that the ambient operating temperature within the cabinet remains between 0 and +60 deg C.
