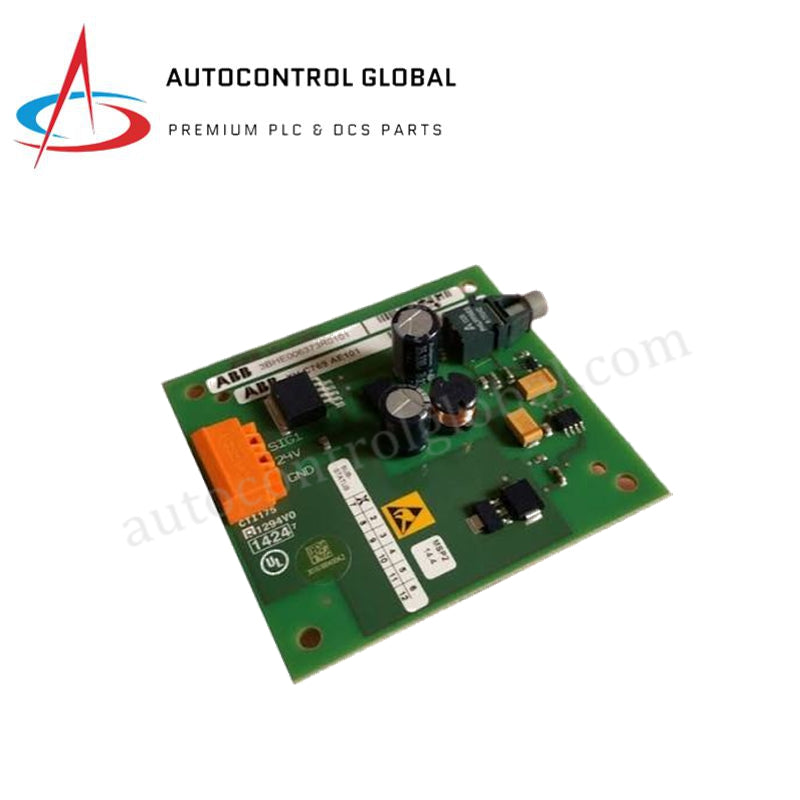

XVC769AE101 3BHE006373R0101 ABB OEI Control Board Drive Module
Manufacturer: ABB
-
Part Number: XVC769AE101 3BHE006373R0101
Condition：New with Original Package
Product Type: Drive Control Boards
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB XVC769AE101 OEI Control Board
The ABB XVC769AE101 (Part Number: 3BHE006373R0101) is a coated Open Edge Interface (OEI) control and communication board designed for ABB drive and automation systems. It provides real-time signal processing and precise control coordination to enable data exchange across distributed industrial networks. Featuring a ruggedized build with an IP67 protection rating, the unit is constructed to withstand mechanical vibration, physical shock, and high-humidity operational environments.
Power Requirements and Environmental Tolerances
The module operates from a standard 24 VDC power supply and draws 2 W of typical power. Its conformal coating and IP67 enclosure integrity allow operation in ambient temperatures ranging from -20 deg C to +60 deg C and non-condensing relative humidity levels between 0% and 95% RH. The mechanical structure withstands continuous vibration up to 0.5 g RMS (10 Hz - 500 Hz) and transient operational shocks up to 5 g over an 11 ms duration.
| Parameter | Specification |
|---|---|
| Model | XVC769AE101 |
| Brand | ABB |
| Part Number | 3BHE006373R0101 |
| Product Type | OEI Control Board |
| System Compatibility | ABB Drive and Automation Platforms |
| Power Supply Voltage | 24 VDC |
| Power Consumption | 2 W |
| Operating Temperature | -20 deg C to +60 deg C |
| Storage Temperature | -40 deg C to +80 deg C |
| Relative Humidity | 0% to 95% RH (non-condensing) |
| Vibration Resistance | 0.5 g RMS (10 Hz - 500 Hz) |
| Shock Resistance | 5 g, 11 ms |
| Protection Class | IP67 |
| Design Features | Coated OEI board |
Frequently Asked Questions
Q: What power input is required to operate the ABB XVC769AE101? A: The board operates on a 24 VDC power supply with a power consumption rating of 2 W.
Q: What environmental protection rating does the XVC769AE101 carry? A: The board features an IP67 protection rating along with a coated board design to resist dust, moisture, and humidity.
