XVC772A102 ABB | High-Accuracy Voltage Divider Board for Monitoring
Manufacturer: ABB
-
Part Number: 3BHE032285R0102 XVC772A102
Condition：New with Original Package
Product Type: Accuracy Voltage Divider Board for Monitoring
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview

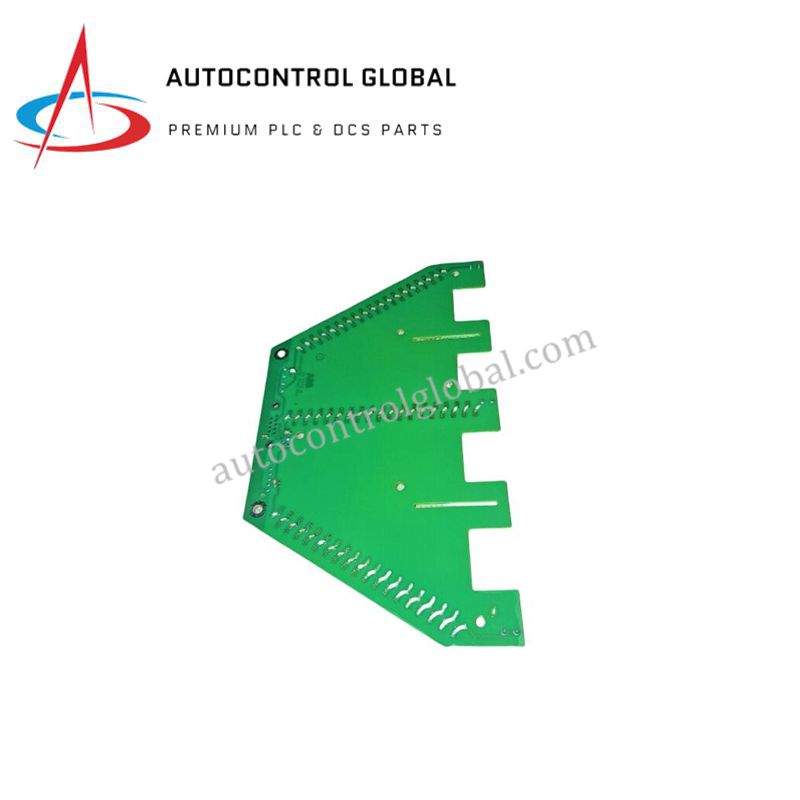

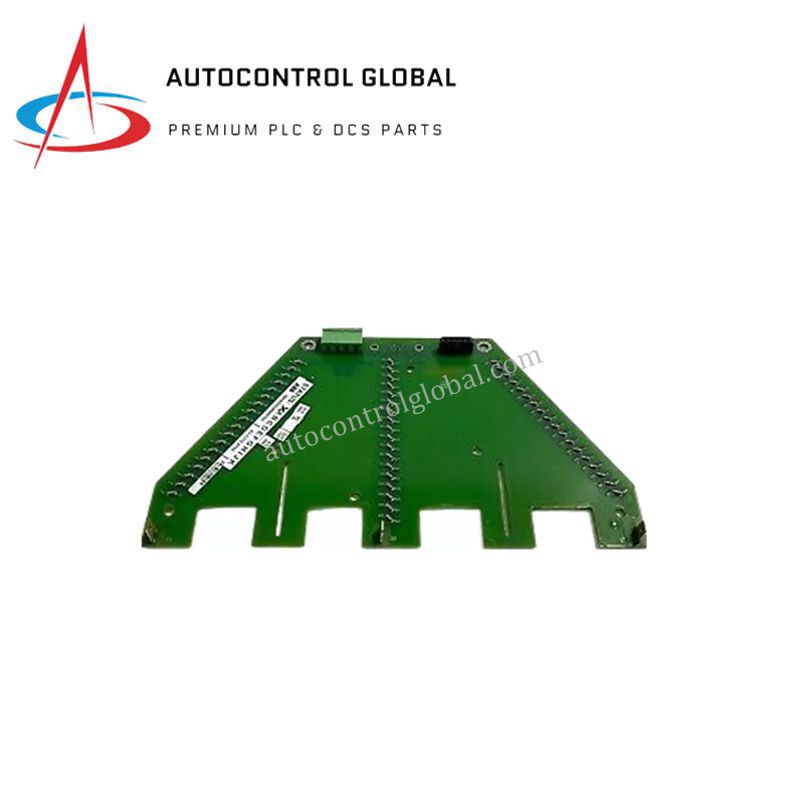

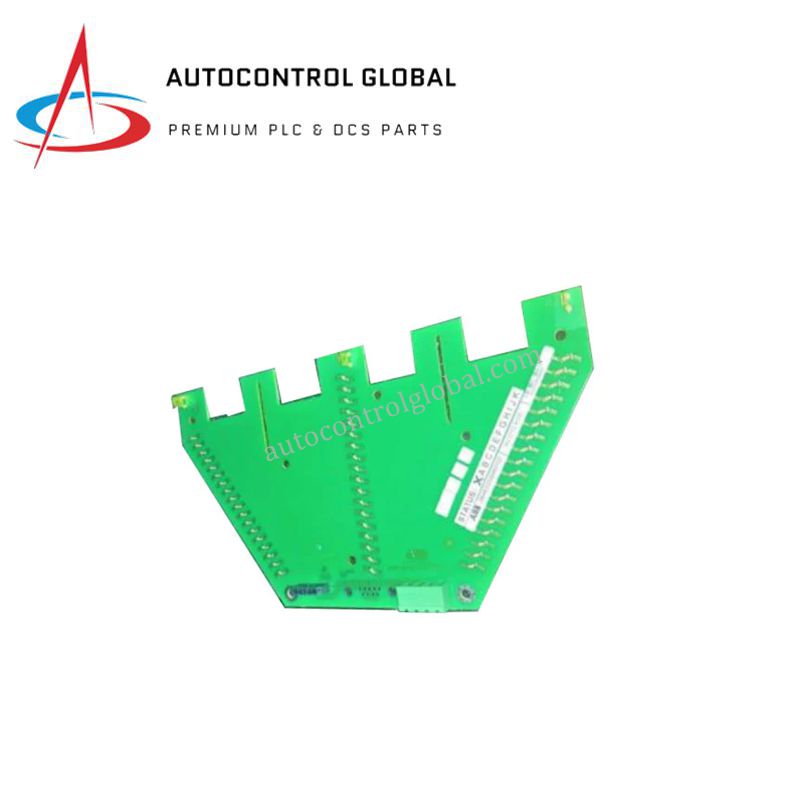

The ABB XVC772A102 (Part No. 3BHE032285R0102) is a high-performance High Voltage Divider (HVD) circuit board engineered for industrial automation and power control systems. It accurately divides and monitors high-voltage signals, ensuring safe and stable performance in critical applications.
This ABB board integrates robust insulation, varnished coating, and precision resistive components to maintain measurement accuracy even under harsh environmental conditions such as dust and moisture. It is optimized for continuous operation in high-voltage monitoring and protection circuits.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Model | XVC772A102 |
| Part Number | 3BHE032285R0102 |
| Product Type | High Voltage Divider (HVD) Board |
| Function | Voltage division and measurement in HV systems |
| Protective Coating | Varnished for resistance to dust and moisture |
| Dimensions (L × W × H) | 130 × 228 × 14 mm |
| Weight | 0.25 kg |
| Material Composition | High-grade FR4 substrate, coated copper traces |
| Insulation Strength | Designed for >10 kV measurement applications |
| Operating Temperature Range | –20°C to +70°C |
| Country of Origin | Sweden |
FAQs
Q1: What is the main function of ABB XVC772A102?
A1: The XVC772A102 divides and measures high-voltage signals, ensuring accurate monitoring in industrial power systems.
Q2: Is the ABB 3BHE032285R0102 suitable for harsh environments?
A2: Yes, it features a varnished protective coating that resists moisture, dust, and corrosion.
Q3: What is the size and weight of this HVD board?
A3: It measures 130 × 228 × 14 mm and weighs approximately 0.25 kg.
Q4: Is this ABB module brand new?
A4: Yes, it is 100% new and original, directly sourced from ABB-certified supply channels.
Q5: How long does shipping take and what is the warranty?
A5: In stock, ships within 3 days to 2 weeks depending on order size via DHL, UPS, or FedEx, and includes a 12-month warranty with 30-day return support for quality issues.
