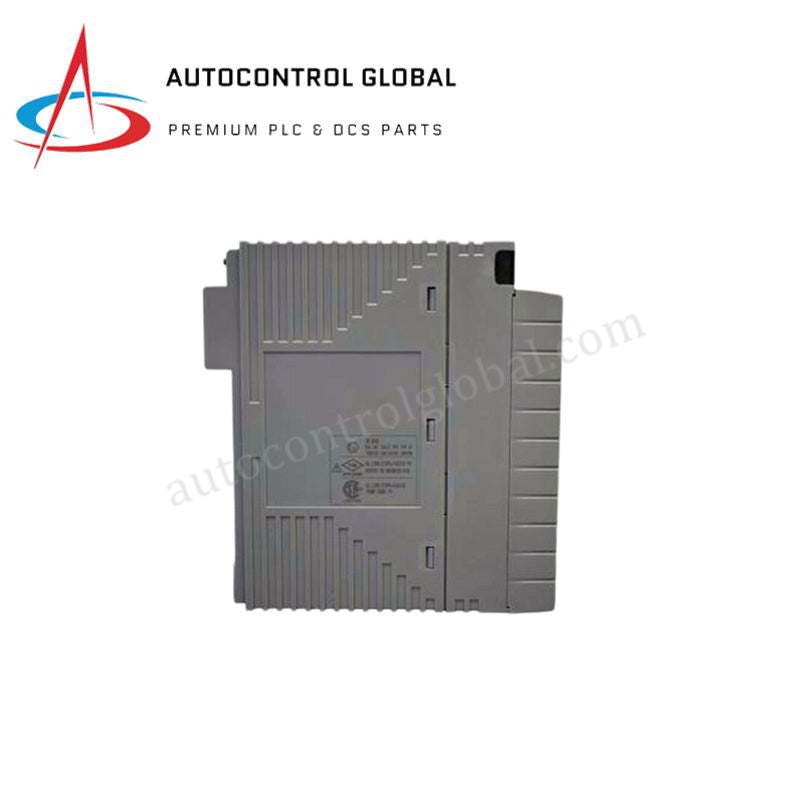

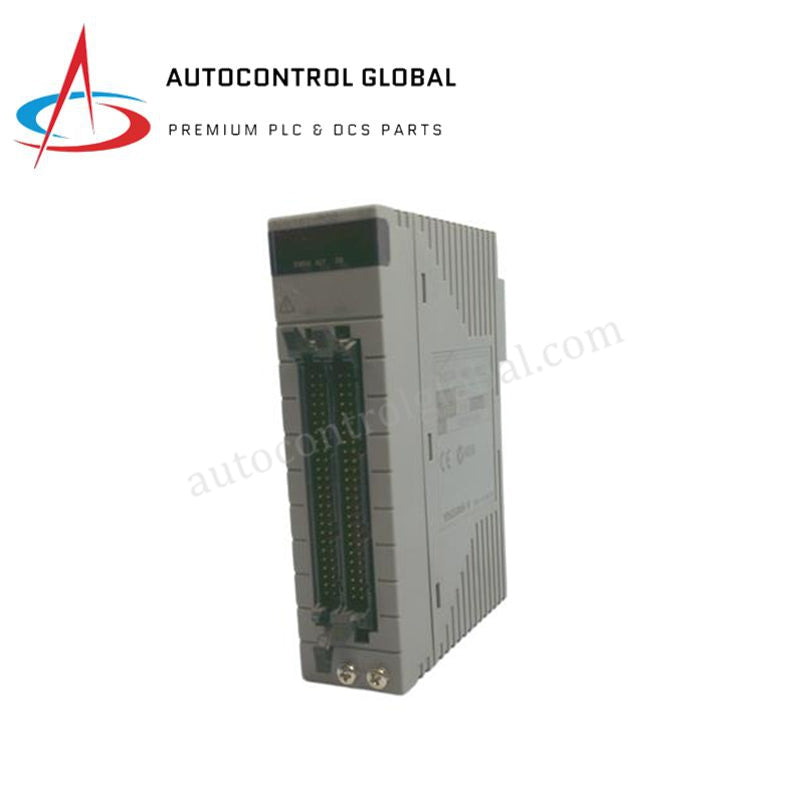

Yokogawa AAI143-S53 S1 Analog Input Module
Yokogawa AAI143-S53 S1 Analog Input Module
Yokogawa AAI143-S53 S1 Analog Input Module
/ 3

Yokogawa AAI143-S53 S1 Analog Input Module

  • Manufacturer: Yokogawa

  • Part Number: AAI143-S53 S1

  • Condition:New with Original Package

  • Product Type: Analog Input Modules

  • Country of Origin: Japan

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

Yokogawa AAI143-S53 S1 Analog Input Module

Configured for 4-20 mA DC signal acquisition in Yokogawa CENTUM VP/FIO architectures, the Yokogawa AAI143-S53 S1 (AAI143 Analog Input Module) provides direct physical/electrical execution across 16 isolated channels. The module captures process current loops with a 10 ms data update period and routes digitized measurements across the system backplane bus. Additionally, each channel accepts both 2-wire transmitter power configurations and self-powered 4-wire instrument loops.

Suffix Breakdown & Model Matrix

The model codification for the AAI143-S53 S1 outlines specific environmental ratings and hardware revisions:

  • AAI143: Base 16-channel isolated 4-20 mA DC analog input module architecture.
  • -S: Standard type analog input module without embedded HART communication protocol pass-through.
  • 5: Standard switch-over response in redundant configurations without explosion protection.
  • 3: ISA Standard G3 conformal coating option with an extended operating temperature rating (-20 to 70 deg C).
  • S1: Specific hardware design revision code.

Hardware Specifications

Parameter Specification
Model AAI143-S53 S1
Brand Yokogawa Electric Corporation
Origin USA
Weight 0.24 to 0.3 kg
Dimensions 2.2 cm x 12.4 cm x 12.6 cm
Operating Temp -20 to 70 deg C
Power Consumption Approx. 230 mA at 5 VDC; 540 mA at 24 VDC
Input Channels 16 isolated current channels
Input Signal Range 4-20 mA DC
Allowable Input Current 24 mA
Accuracy +/-16 uA
Data Update Period 10 ms
Temperature Drift +/-16 uA per 10 deg C
Environmental Option ISA Standard G3 conformal coating
Input Resistance (Power ON) 270 ohm at 20 mA; 350 ohm at 4 mA
Input Resistance (Power OFF) 500 kohm or higher
Isolation Withstand Voltage 1500 VAC for 1 minute (input-to-system)
Transmitter Power Supply >=19.0 V at 20 mA; <=25.5 V at 0 mA
Power Supply Current Limit 25 mA per channel
Field Wiring Connections Pressure-clamp terminal, MIL connector cable, or dedicated KS1 cable

Process Control & DCS Instrument Integration

The AAI143-S53 S1 module delivers channel-to-system galvanic isolation up to 1500 VAC to prevent ground loops and common-mode noise from corrupting field measurement loops. Internal transmitter power supplies provide direct loop power (>=19.0 V at 20 mA) to field instruments, eliminating external power distribution hardware. Channel input impedance automatically shifts from <=350 ohm under normal operation to >=500 kohm when de-energized, preventing unintended loop loading during module shutdown. Built to meet ISA Standard G3 harsh environmental criteria, the module withstands corrosive atmospheric contaminants while operating reliably down to -20 deg C. Dual-redundant module pairs can also be installed in dedicated baseplate slots to maintain unbroken process sampling.

Frequently Asked Questions

Q: Does the AAI143-S53 S1 support digital HART protocol pass-through?

A: No, the "-S" model suffix designates a standard analog input module without HART communication pass-through capabilities. Digital HART pass-through requires the "-H" variant (such as AAI143-H53).

Q: How does the module handle short circuits on 2-wire transmitter field wiring?

A: The onboard transmitter power supply incorporates an active current limitation circuit capped at 25 mA per channel. A field wiring short circuit trips this limit to protect the internal power supply without affecting adjacent channels.

Q: Can 2-wire and 4-wire field transmitters be wired to the same module simultaneously?

A: Yes, wiring topology and transmitter selection are configured independently on a channel-by-channel basis, allowing both 2-wire loop-powered devices and self-powered 4-wire transmitters on one 16-channel module.

Field Installation Guidelines

  • Switch off FIO slot power or observe system-approved live extraction procedures before inserting or removing the module from the baseplate slot.
  • Align the module with the slot rail guide tracks and slide inward until the rear connectors and securing latches fully lock into the backplane.
  • Route 4-20 mA signal wiring in dedicated grounded metal conduits separated from high-voltage motor control lines and VFD output cabling.
  • Connect cable shields to the dedicated system earth grounding bar at a single termination point to optimize electromagnetic interference suppression.
  • Verify pressure-clamp terminal connections or MIL connector latches are tightly secured to withstand continuous mechanical vibration.
