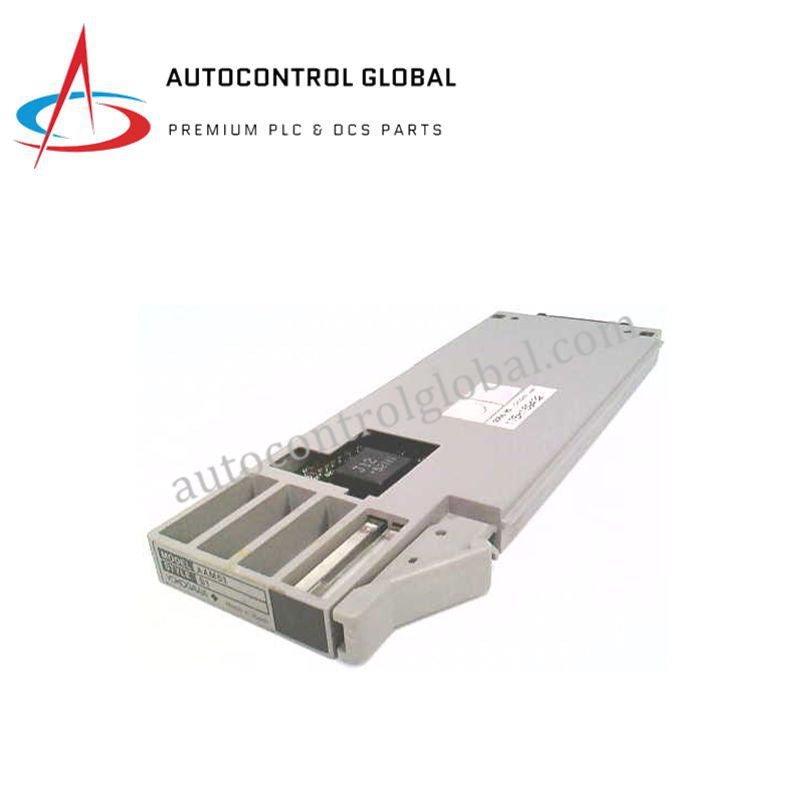

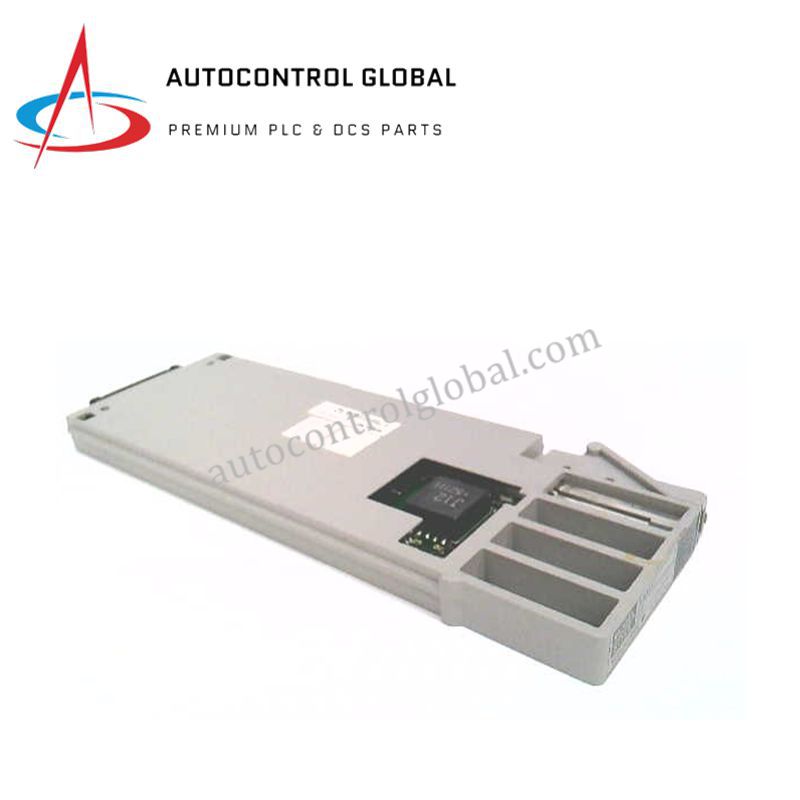

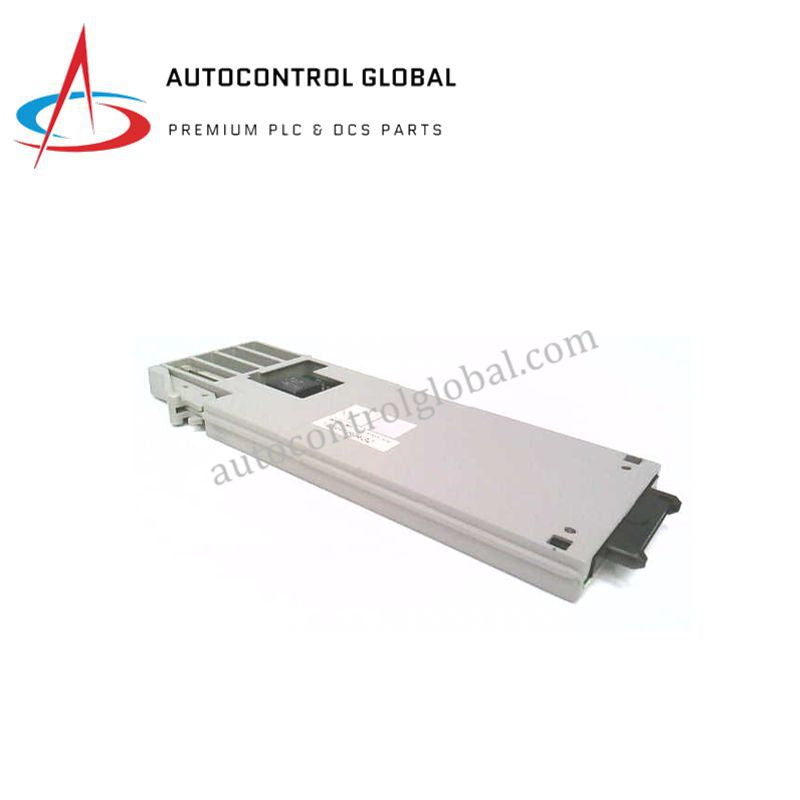

YOKOGAWA AAM51 S1 Module | CENTUM VP/CS 3000 Compatible
Manufacturer: Yokogawa
-
Part Number: AAM51 S1
Condition：New with Original Package
Product Type: CENTUM VP/CS 3000 Compatible
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The YOKOGAWA AAM51 S1 is a Current/Voltage Output Module designed for CENTUM VP and CS 3000 Distributed Control Systems (DCS). It delivers precise analog signals to field devices, including control valves, actuators, and signal converters. This module supports both 4–20 mA current and configurable voltage output (0–10 V), with eight isolated channels, providing versatile control in process automation, machine systems, and robotics. Its robust design ensures reliable operation under industrial conditions with EMI, vibration, and temperature tolerance.
Technical Specifications
| Feature | Specification |
|---|---|
| Module Type | Analog Output Module (Current/Voltage) |
| System Compatibility | CENTUM VP / CS 3000 |
| Output Channels | 8 isolated channels |
| Signal Types | 4–20 mA DC or configurable voltage output (0–10 V) |
| Resolution | 12-bit |
| Step Response Time | ~22 ms (typical) |
| Channel Isolation | Galvanic isolation between channels and system bus |
| Power Supply | 24 V DC system: ≤38 mA; 5 V DC internal: ≤10 mA |
| Withstand Voltage | 1500 V AC for 1 minute (field to system) |
| Operating Voltage Range | Up to 42 V DC |
| Mounting Format | Rack-mounted |
| Environmental Suitability | Designed for industrial conditions (EMI, vibration, temperature) |
| Weight | 0.20 lbs |
