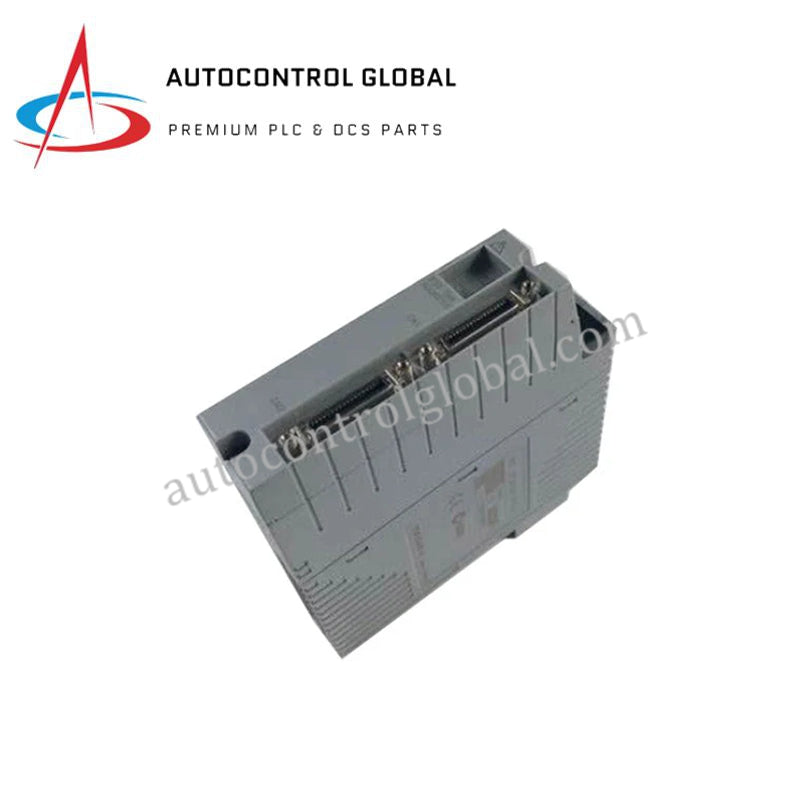

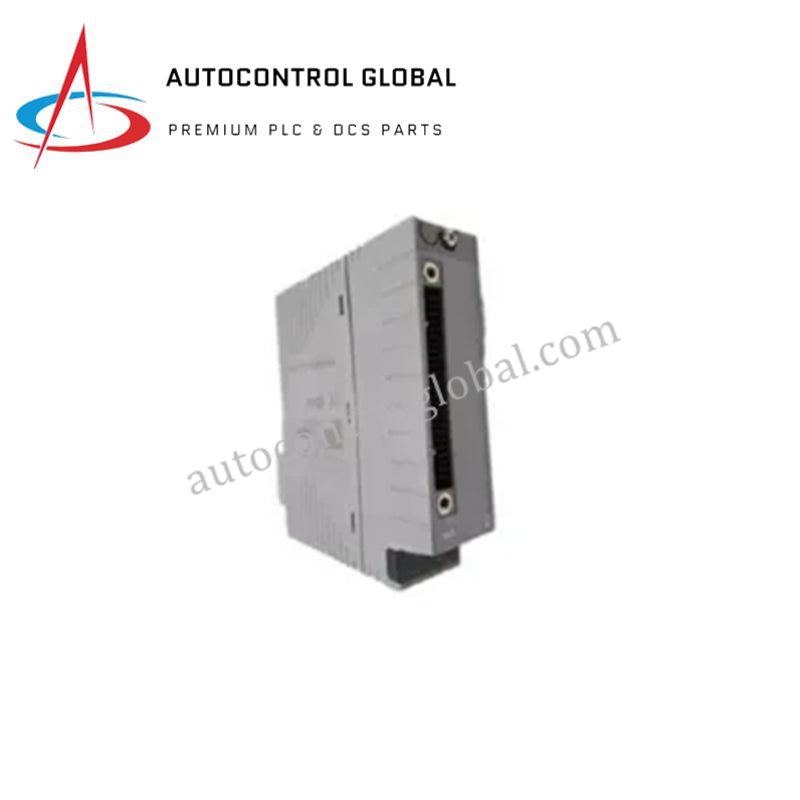

Yokogawa AAP135-S50 Pulse Module w/ KS Adapter

Product Overview

The AAP135-S50/KSA00 (Model: AAP135) is a high-precision pulse input module designed for Yokogawa’s CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). Functioning within the FIO (Field Interface I/O) architecture, this module is specifically engineered to interface with field devices that generate pulse signals, such as positive displacement flowmeters, turbine flowmeters, and speed sensors. The AAP135-S50/KSA00 (Part Number: AAP135-S50/KSA00) supports 8 isolated channels, ensuring that high-frequency pulse counts (up to 10 kHz) are captured with absolute accuracy while protecting the system logic from field-side electrical noise.

Equipped with the /KSA00 option, this module includes a factory-installed ATK4A-00 KS Cable Interface Adapter. This configuration allows for streamlined integration with terminal boards via standard KS cables, significantly reducing wiring complexity and improving maintenance accessibility. Whether used for flow totalization or rotation speed monitoring, the AAP135-S50 (Model: AAP135) provides the deterministic data acquisition required for safety-critical and high-performance process automation.

Detailed Technical Specifications

The AAP135-S50/KSA00 is optimized for high-speed pulse processing and robust signal conditioning.

• Manufacturer: Yokogawa Electric Corporation

• Model Code: AAP135-S50/KSA00

• Product Type: Pulse Input Module (Isolated Channels)

• System Compatibility: CENTUM VP, CENTUM CS 3000 (FIO Architecture)

• Number of Channels: 8 isolated channels

• Input Signal Type: Contact/Voltage pulse (Dry contact, transistor, or voltage pulse)

• Frequency Range: 0 to 10 kHz

• Pulse Counting: 32-bit internal counter

• Accuracy: Pulse count error is zero; frequency measurement accuracy within ±0.1%

• Isolation: Channel-to-channel and channel-to-system isolation (500 V AC)

• Interface Option: Includes KS Cable Interface Adapter (ATK4A-00)

• Power Supply: 24 V DC (+20% / -10%) via backplane

• Power Consumption: 5 V DC at 450 mA; 24 V DC at 250 mA

• Operating Temperature: 0 °C to +55 °C

• Storage Temperature: –20 °C to +70 °C

• Weight: 0.5 kg (Shipping weight)

• Country of Origin: Indonesia
