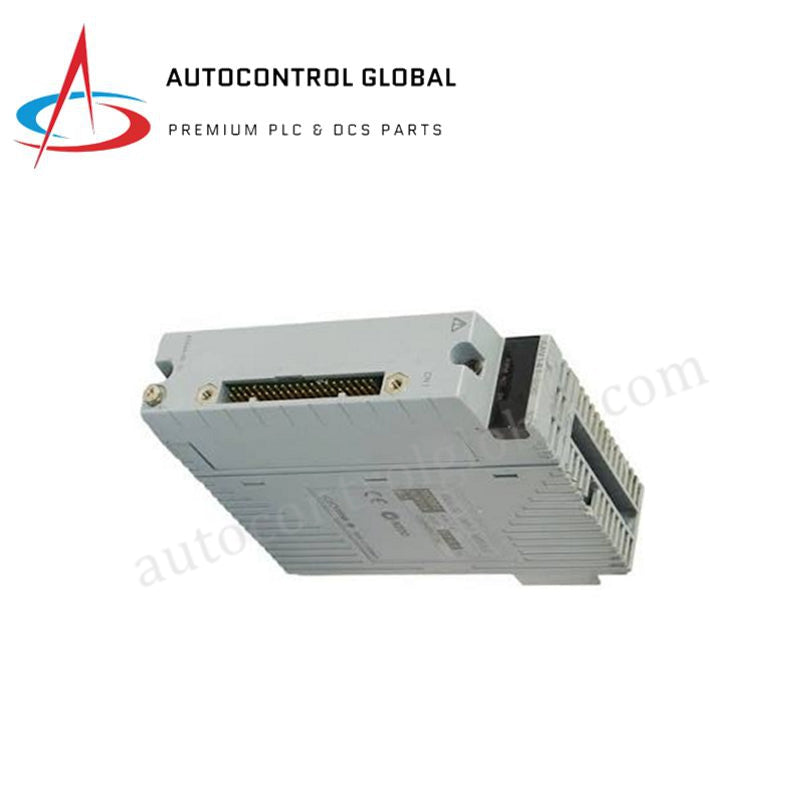

Yokogawa AAV141-S00-S2 Analog Voltage Input Module
Manufacturer: Yokogawa
-
Part Number: AAV141-S00
Condition：New with Original Package
Product Type: Analog Input Modules
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Yokogawa AAV141-S00-S2 Analog Input Module
The AAV141-S00-S2 is a 16-channel analog voltage input module engineered for Yokogawa CENTUM VP and compatible Field Control I/O (FIO) systems. It receives standardized 1 to 5 VDC analog voltage signals from field transmitters and instruments, converting process variables into digital data for system execution.
Signal Conversion & Input Circuitry
The module features non-isolated differential inputs across 16 channels, maintaining high input resistance of at least 1 Mohm during energized operation and 340 kohm when powered off. With a data update period of 10 ms and a step response time of 100 ms, it processes analog inputs with an accuracy of +/-4 mV.
Configuration & Redundancy
The -S00 suffix designates the standard module type without embedded specialized features, while the -S2 suffix specifies the standard option rating (basic specification without conformal coating or withstand voltage options). Dual-redundant module pairs are supported within compatible FIO node configuration bases to ensure high system availability.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAV141-S00-S2 |
| Brand | Yokogawa Electric Corporation |
| Product Family | CENTUM VP / FIO System |
| Product Type | Analog Voltage Input Module |
| Number of Input Channels | 16 |
| Input Signal Range | 1 to 5 VDC |
| Input Configuration | Non-isolated differential |
| Input Accuracy | +/-4 mV |
| Data Update Period | 10 ms |
| Step Response Time | 100 ms |
| Temperature Drift | +/-4 mV per 10 deg C |
| Maximum Allowable Input Voltage | +/-7.5 V |
| Allowable Common-Mode Voltage | +/-1 V or less |
| Current Consumption | 350 mA at 5 VDC |
| Power Consumption | 1.75 W |
| Weight | 0.2 kg |
Frequently Asked Questions
Q: What field signal type does the Yokogawa AAV141-S00-S2 accept? A: The module is designed specifically for 1 to 5 VDC analog voltage input signals across all 16 channels.
Q: What does the -S2 suffix signify in the model number AAV141-S00-S2? A: The -S2 option suffix indicates a standard specification module variant within Yokogawa FIO ordering nomenclature.
Q: Can the AAV141-S00-S2 be deployed in redundant configurations? A: Yes, two modules can be configured as a dual-redundant pair when installed in compatible CENTUM VP FIO redundant chassis slots.
