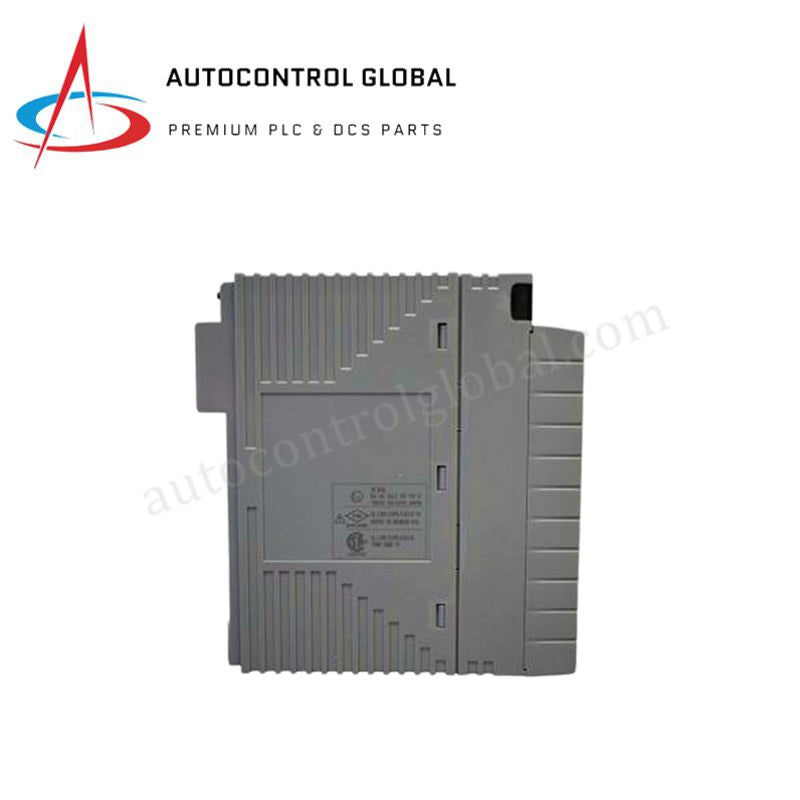

Yokogawa ADV144-S13 CENTUM FIO 16-Channel Digital Input Module
Manufacturer: Yokogawa
-
Part Number: ADV144-S13
Condition：New with Original Package
Product Type: Digital Input Modules
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Yokogawa ADV144-S13 Digital Input Module
The Yokogawa ADV144-S13, also cataloged as the ADV144 Digital Input Module, operates as a dedicated hardware component for high-voltage discrete signal acquisition within Yokogawa CENTUM VP FIO architectures.
Suffix Breakdown & Model Matrix
The suffix alphanumeric sequence dictates the electrical operating range, field common arrangement, and structural hardware revision:
- ADV144: Base model designation specifying a 16-channel isolated DC digital input module.
- -S: Standard hardware type configured for industrial process control and monitoring loops.
- 1: High-voltage input range specification supporting 24 to 250 VDC signal levels.
- 3: Basic type execution featuring 8-channel group commons and standard system firmware integration.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADV144-S13 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 0.285 kg (0.63 lbs) |
| Dimensions | Standard FIO card slot footprint |
| Operating Temp | 0-60 deg C |
| Power Consumption | 500 mA at 5 VDC |
| Input Channels | 16 channels (isolated) |
| Rated Input Voltage | 24 to 250 VDC |
| Input ON Voltage | 11.0 to 250 VDC |
| Input OFF Voltage | 0 to 10.0 VDC |
| Typical Input Current | 4.7 mA per channel at 120 VDC (7.0 mA maximum) |
| Response Time | 160 ms or less (status mode) |
| System Isolation | 2 kV AC for 1 minute (input signal to system) |
| Common Isolation | 1.35 kV AC for 1 minute (between 8-channel common groups) |
| Grouping | Minus-side common for every 8 channels |
| Redundancy | Supports dual-redundant pair configuration |
Process Control Signal Processing
This module delivers galvanic optical isolation rated at 2 kV AC between high-voltage field lines and sensitive system backplane electronics. Designed to monitor wide-range DC field contact points from 24 VDC up to 250 VDC, internal filtering networks condition input states across two distinct 8-channel common groups. The module executes continuous edge-detection routines with a minimum ON pulse width of 200 ms and maximum 2.5 Hz switching frequency when configured for pushbutton edge-counting modes. Internal noise filtering suppresses high-voltage contact bounce, ensuring smooth signal integration with wider 4-20 mA HART loop protocol plant control strategies.
Frequently Asked Questions
Q: How are common connections arranged across the 16 channels on the ADV144-S13 card? A: The module splits channels into two 8-channel banks, utilizing a shared minus-side common terminal for each group with 1.35 kV AC isolation between common circuits.
Q: What is the benefit of the wide 24 to 250 VDC input threshold on this digital input card? A: The high-voltage input circuitry allows direct connection of 110 VDC or 220 VDC station battery contacts and power interlock switches without requiring interposing relays.
Field Installation Guidelines
Align the card with the baseplate guide slots within the CENTUM VP node unit, sliding it inward until the top and bottom ejection levers lock into place. Connect the field interface cable assembly, verifying that all retaining fasteners are tightened to maintain electrical contact stability under industrial vibration. Maintain physical separation between high-voltage 250 VDC signal cables and low-level analog or communication wiring within the cabinet tray system. Connect shield grounding conductors directly to a single-point copper ground bar located at the cabinet entry baseplate. Ensure cabinet cooling fans maintain adequate air circulation to keep surrounding ambient temperatures within the standard 0 to 60 deg C operating window.
