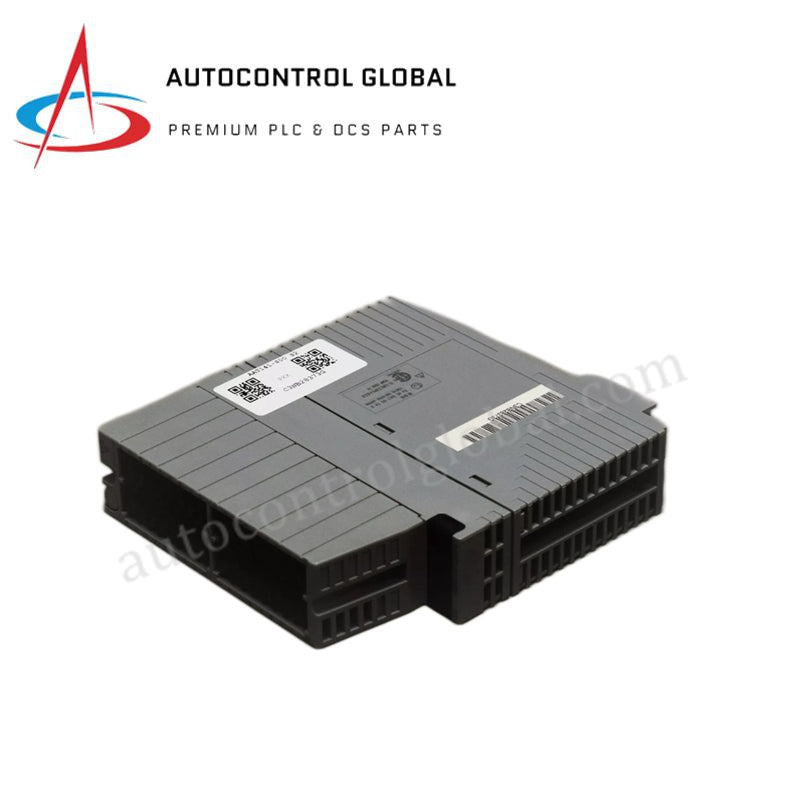

YOKOGAWA ADV151-P10/B5S10 CENTUM Digital Input Module
Manufacturer: Yokogawa
-
Part Number: ADV151-P10/B5S10
Condition：New with Original Package
Product Type: Digital Input Modules
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
YOKOGAWA ADV151-P10/B5S10 Digital Input Module
Configured for discrete signal acquisition in CENTUM VP, CS 3000, and CS 1000 system architectures, the YOKOGAWA ADV151-P10/B5S10 (ADV151-P10 Digital Input Module) provides direct physical/electrical execution to monitor ON/OFF field states across process plant control networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADV151-P10/B5S10 |
| Brand | YOKOGAWA |
| Origin | Japan |
| Weight | 0.30 kg (0.65 lbs) |
| Dimensions | 81 x 103 x 146 mm |
| Operating Temp | -20 to +70 deg C |
| Power Consumption | 290 mA max (at 5 VDC), 140 mA max (at 24 VDC) |
| Channel Count | 32 channels |
| Input Signal Type | No-voltage dry contact |
| ON State Condition | Less than or equal to 1 kOhm |
| OFF State Condition | Greater than or equal to 100 kOhm |
| Input Current | 6 mA +/- 20 percent (at 24 VDC, 0 Ohm) |
| Isolation Voltage | 2 kV AC between input signal and system logic (1 min) |
| Response Time | Less than or equal to 40 ms |
| Terminal Type | Pressure clamp terminal block with surge absorber (/B5S10) |
| Hot Swap Capability | Supported |
Channel-to-Channel Isolation & Cold Junction Compensation
Field instruments tied to the 32-channel digital input board route through integrated galvanic isolation barriers designed to block high common-mode voltage spikes and suppress cross-talk across adjacent signal paths. With a withstand rating of 2 kV AC between input circuits and internal system logic, the module preserves signal integrity in heavy industrial noise environments. While CJC applies to analog temperature loops, this discrete module leverages channel-grouped noise filtering and internal 24 VDC loop conditioning to prevent spurious switching and ground loop currents.
Frequently Asked Questions
Q: Does replacing the module while the system is powered down disrupt adjacent I/O cards on the rack?
A: No. The card supports full online hot-swapping under live rack backplane power without interrupting communications or signal acquisition on neighboring modules.
Q: How does the /B5S10 option modify the physical connection interface compared to the standard module?
A: The /B5S10 option equips the unit with a pressure clamp terminal block that includes integrated surge absorbers to clamp line voltage transients before they reach internal optocoupler circuitry.
Field Installation Guidelines
Mount the module directly into a designated slot on the CENTUM system node interface unit (NIU) or remote I/O baseplate. Ensure that the locking mechanism fully engages with the backplane connector. Field wiring must route through shielded, twisted-pair cables, and the shield drain wire should terminate at a dedicated system ground bar using a short, low-impedance connection. Maintain a minimum of 5 full thread engagements when securing external terminal screw assemblies, and maintain physical segregation between field signal wiring and high-voltage AC power lines to prevent electromagnetic coupling.
