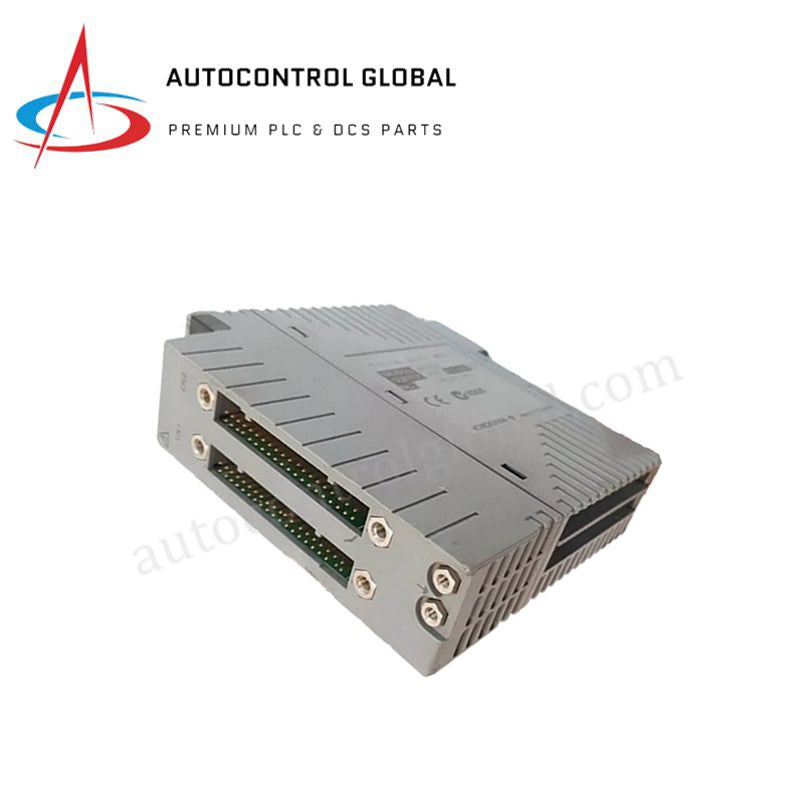

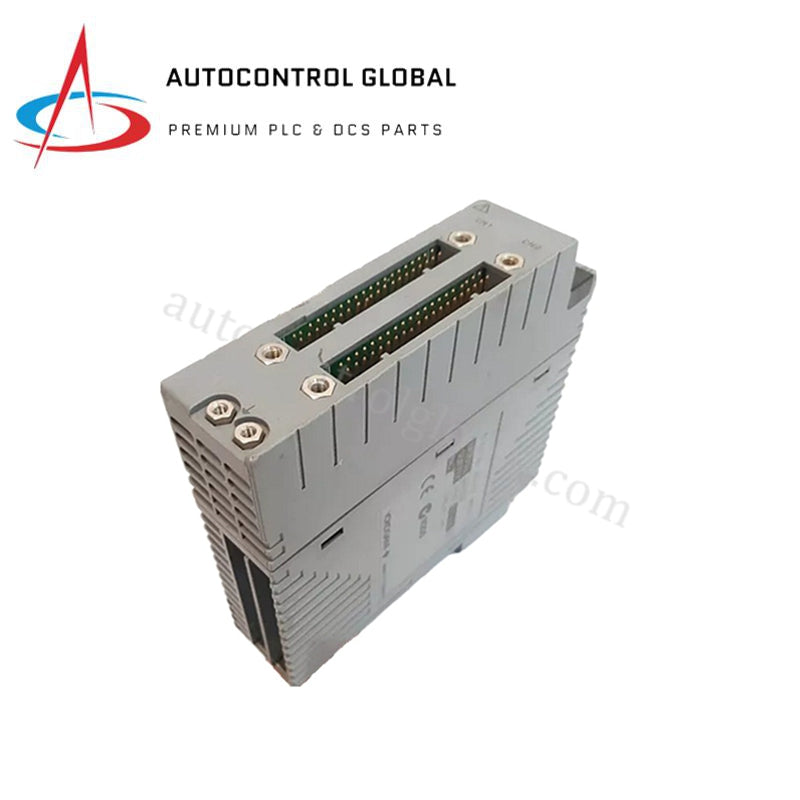

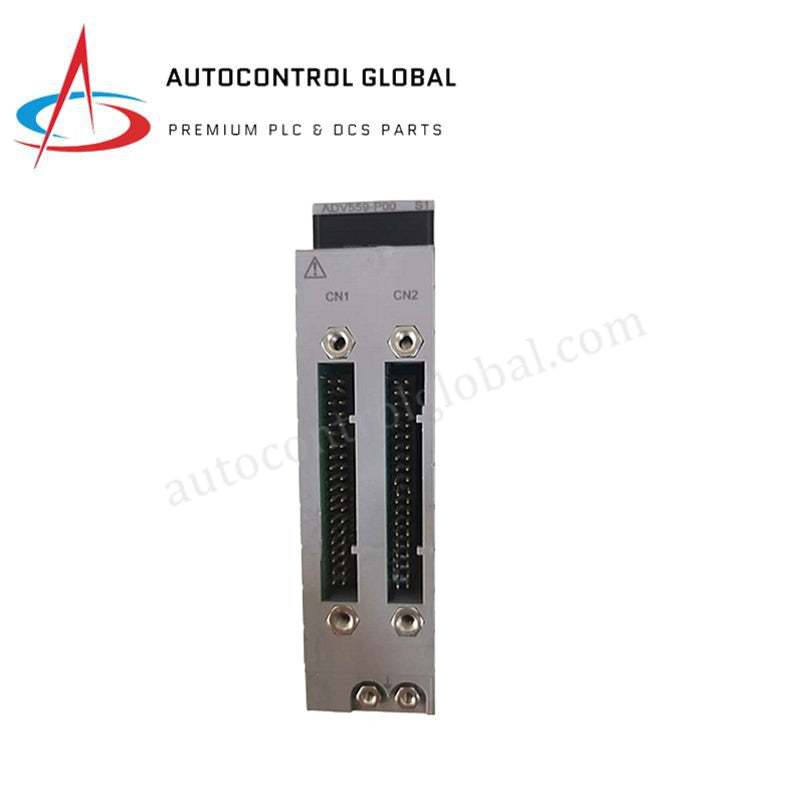

Yokogawa ADV559-P01 CENTUM VP Digital Output Module
Manufacturer: Yokogawa
-
Part Number: ADV559
Condition：New with Original Package
Product Type: Digital Output Modules
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Yokogawa ADV559-P01 Digital Output Modules
Configured for precision discrete control and pulse timing execution in Yokogawa CENTUM VP and ST4-compatible systems, the Yokogawa ADV559-P01 (ADV559 Digital Output Module) provides direct physical current-sink switching for field-side actuators.
Suffix Breakdown & Model Matrix
| Base Model | Suffix / Option Code | Description / Specification |
|---|---|---|
| ADV559 | -P | With pulse-width and time-proportioning output functions |
| 0 | Basic type configuration | |
| 1 | ISA G3 conformal coating for harsh environments |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADV559-P01 (Base Model: ADV559) |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 0.30 kg |
| Dimensions | 32.8 mm x 127.2 mm x 130 mm |
| Operating Temp | 0 to 55 deg C |
| Power Consumption | 570 mA at 5 VDC |
| Output Channels | 32 channels |
| Rated Output Voltage | 30 VDC maximum |
| Output Format | Transistor contact, sink type |
| Rated Output Current | 100 mA per channel maximum (resistive or inductive) |
| Output Response Time | <= 16 ms |
| Pulse Width Range | 8 ms to 7200 s (8 ms resolution) |
| Channel Isolation | Electrically isolated output signal channels |
| Connection Method | Dedicated KS2 interface cables |
Process Control & Channel-to-Channel Isolation Architecture
Yokogawa CENTUM VP process control architectures utilize high-density optical isolation barriers to separate internal system logic from 30 VDC field loop potentials. The module routes 32 discrete sink-type transistor channels through galvanic isolation circuitry, mitigating earth loop currents and preventing transient voltage feedback across high-density field lines. Integrated pulse generation networks support time-proportioning and pulse-width duty cycles down to an 8 ms timing resolution, while the conformal coating complies with ISA G3 environmental specs to resist airborne corrosive pollutants.
Frequently Asked Questions
Q: What interconnect hardware is required to wire field loads to the module?
A: The module utilizes dedicated Yokogawa KS2 interface cables to connect field output signals directly to external termination boards.
Q: Does the -P01 suffix version support special timing output modes?
A: Yes, the -P option enables built-in pulse-width output and time-proportioning output modes with a programmable pulse range from 8 ms to 7200 seconds.
Q: How does the module handle inductive loads such as solenoid coils?
A: The open-collector output transistors handle up to 100 mA per channel at 30 VDC for both resistive and inductive loads; external flywheel diodes are recommended at the load terminals for high-inductance circuits.
Field Installation Guidelines
Verify that system rack power and external 30 VDC field power supplies are completely turned off prior to installing or removing the module from the subrack slot.
Route external KS2 cables through dedicated cable ducting, maintaining physical separation between low-voltage discrete signal lines and high-voltage AC power wiring to prevent electromagnetic interference.
Ensure cabinet ground bars connect firmly to system ground and verify that the module retention mechanisms click securely into the mounting rack to guarantee conformal-coated interface contacts mate fully with backplane power buses.
