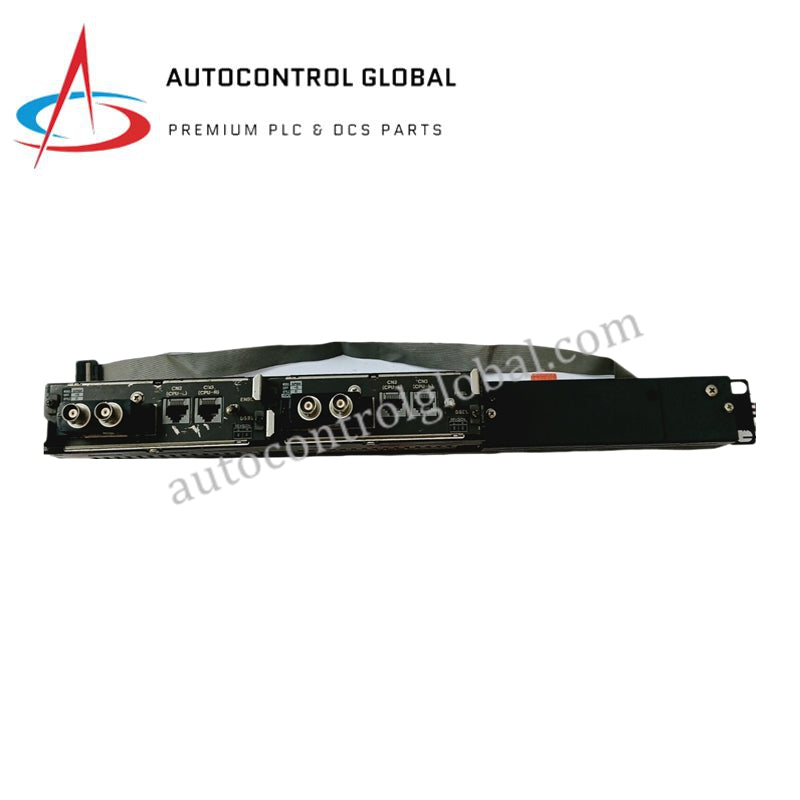

Yokogawa AIP504-11 S1 Redundant V-net Interface Module

Product Description

High-Speed V-net System Connectivity

The Yokogawa AIP504-11 S1 (Model AIP504) is a high-performance V-net Coupler Module designed for the CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). Serving as a vital communication bridge, the AIP504-11 facilitates the connection between the control processor and the V-net real-time control network. This module ensures high-speed, deterministic data exchange across the system backbone, allowing for seamless coordination between Field Control Stations (FCS) and Human Interface Stations (HIS).

Reliability and Signal Integrity

The AIP504-11 S1 is engineered for mission-critical industrial environments where network uptime is paramount. It features robust galvanic isolation to protect system electronics from transient surges and electromagnetic interference (EMI). As a "Style S1" revision, it represents a mature hardware platform optimized for long-term stability in refineries, chemical plants, and power generation facilities. The module supports redundant network configurations, providing an instantaneous failover mechanism that prevents process data loss in the event of a cable or port failure.

Detailed Technical Specifications

The following table summarizes the technical performance and mechanical data for the AIP504-11 S1.
