Yokogawa ANR10D-415 ER Bus Node Unit | DCS Remote I/O

Yokogawa ANR10D-415 ER Bus Node Unit DCS Remote I/O Interface

Product Description

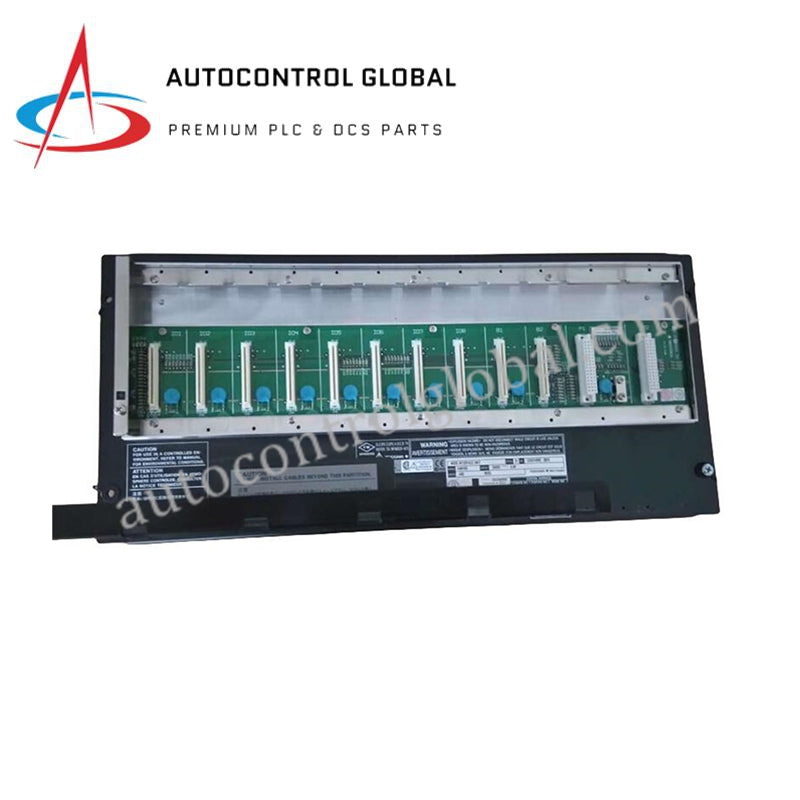

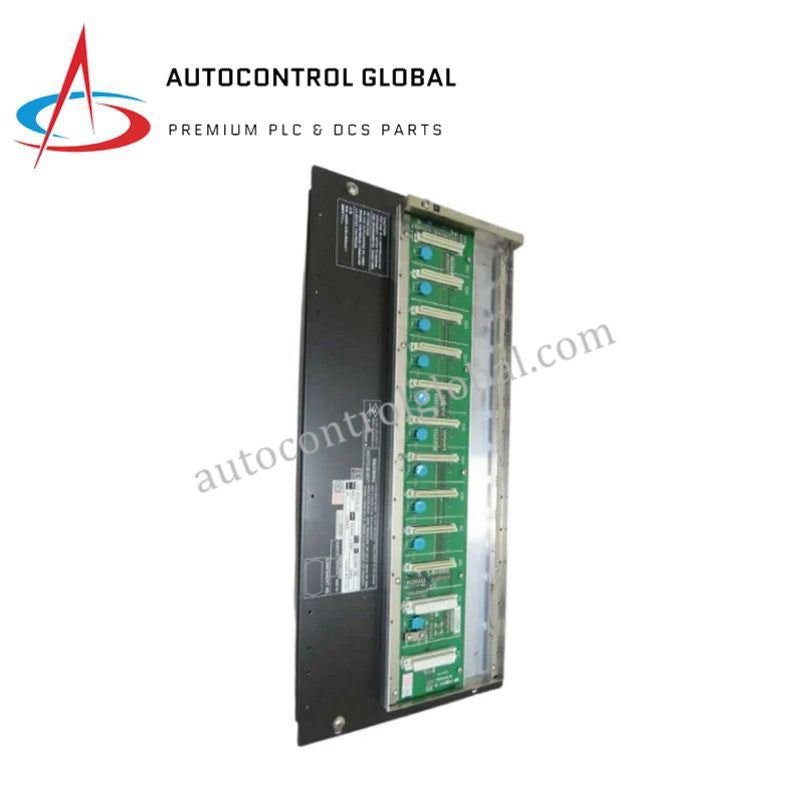

The ANR10D-415 (ANR10D-415) is a robust ER Bus Node Unit designed for Yokogawa’s Distributed Control Systems (DCS), specifically within the FIO (Field Input/Output) architecture. It functions as a remote communication bridge, interfacing analog and digital I/O signals with the Field Control Unit (FCU) over long distances via the ER Bus. This unit is essential for geographically distributed process plants, allowing I/O modules to be situated closer to field instrumentation while maintaining high-speed, deterministic data exchange with the central controller.

The ANR10D-415 (ANR10D-415) is engineered for high availability, supporting both single and dual-redundant configurations for bus interface modules and power supply units. By housing the power supply, bus interface, and multiple I/O module slots in a single 19-inch rackmount chassis, it provides a centralized yet remote point for signal conditioning and digitization. This model is widely deployed in safety-critical and high-uptime environments such as petrochemical refineries, offshore platforms, and power generation facilities.

Detailed Technical Specifications

The ANR10D-415 (ANR10D-415) features industrial-grade specifications for reliable remote I/O management:

• Manufacturer: Yokogawa

• Model Number: ANR10D-415

• Product Type: ER Bus Node Unit (Remote Node)

• System Compatibility: CENTUM VP, CENTUM CS 3000 (FIO Architecture)

• Bus Interface: ER Bus (Extended Remote Bus)

• Configuration: Supports Dual-Redundant Power and Communication

• I/O Module Capacity: Supports standard Yokogawa FIO modules

• Input Voltage: 100-120 V AC or 220-240 V AC (Depends on PSU module installed)

• Power Consumption: Approx. 100 VA (at maximum load)

• Operating Temperature: -10 °C to +55 °C (14 °F to 131 °F)

• Operating Humidity: 5% to 95% RH (non-condensing)

• Mounting: 19-inch Rackmount (EIA Standard)

• Physical Dimensions: 482.6 mm (W) × 221.5 mm (H) × 205 mm (D)

• Net Weight: 2.6 kg (Unit weight); 10 kg (Full assembly with modules)

• Country of Manufacture: Singapore / Japan

• Certifications: CE, CSA, UL (System Level)
