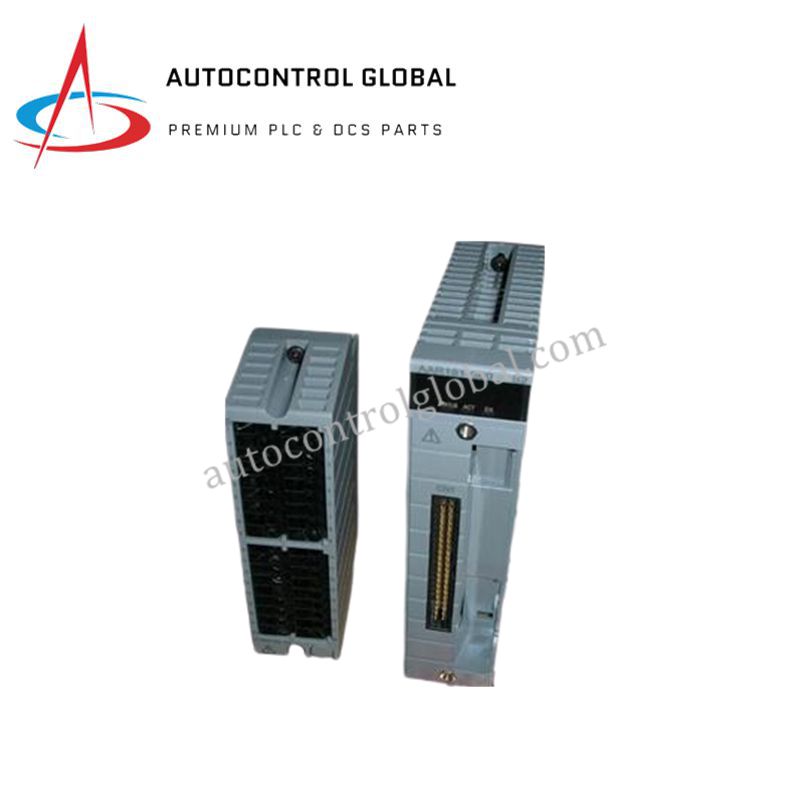

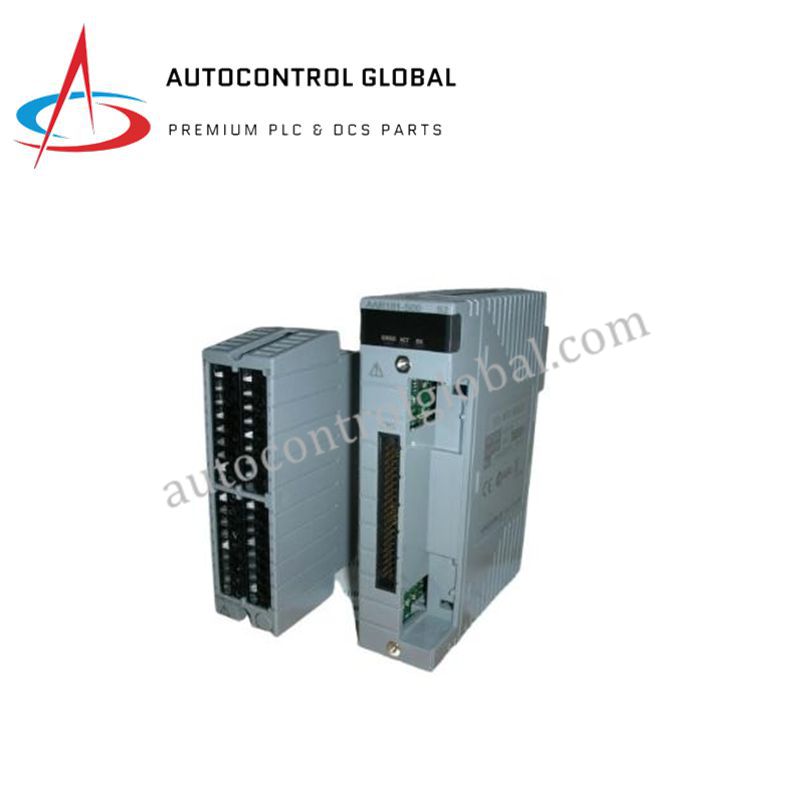

YOKOGAWA ATR8S-00 S2 | RTD Pressure Clamp Terminal Block
Manufacturer: Yokogawa
-
Part Number: ATR8S-00 S2
Condition：New with Original Package
Product Type: RTD Pressure Clamp Terminal Block
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The YOKOGAWA ATR8S-00 S2 is a pressure clamp terminal block designed for RTD (Resistance Temperature Detector) applications in CENTUM VP and CS 3000 Distributed Control Systems (DCS). It provides a secure, efficient connection between RTD field sensors and analog input modules, ensuring precise temperature measurement and reliable signal transmission. This module is ideal for mission-critical environments in oil & gas, chemical processing, power generation, and pharmaceutical industries, where robust wiring and accurate temperature control are essential.
Technical Specifications
| Feature | Specification |
|---|---|
| Module Type | Pressure Clamp Terminal Block for RTD |
| Application | Analog RTD signal connection (single RTD per channel) |
| Number of Channels | 12 RTD input points |
| Connection Type | Pressure clamp (tool-free wiring) |
| Compatible Modules | Designed for Yokogawa AAR181 and similar analog input modules |
| Surge Protection | “-00” suffix indicates no built-in surge absorber |
| Mounting Format | DIN rail or panel mountable |
| Operating Temperature | -40°C to +70°C |
| Material | High-grade copper alloy terminals with thermoplastic housing |
| Certifications | UL, CE, CSA compliant |
| Protection Level | IP54 or higher (depending on enclosure) |
| Weight | 450 g |
| Package | Original carton, 1.5 × 20 × 25 cm |
