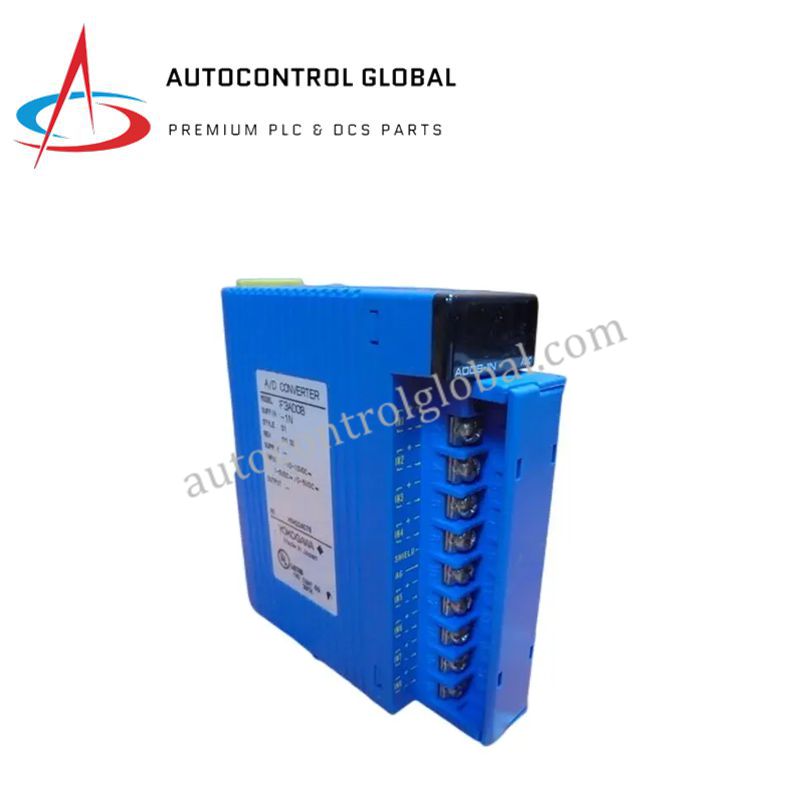

YOKOGAWA F3AD08-4V | 8-Channel A/D Input Module
Manufacturer: Yokogawa
-
Part Number: F3AD08-4V
Condition：New with Original Package
Product Type: 8-Channel A/D Input Module
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview:
The YOKOGAWA F3AD08-4V is a high-performance 8-channel analog input module engineered for the FA-M3 series of programmable logic controllers (PLCs). This module converts analog signals from field devices such as sensors and transmitters into digital data, enabling precise real-time control and monitoring.
Designed for factory automation, process control, and machine monitoring, the F3AD08-4V supports fast scan performance and robust signal acquisition. Its modular architecture allows seamless integration into Yokogawa FA-M3 PLC systems, ensuring reliable operation in demanding industrial environments.
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | F3AD08-4V |
| Module Type | Analog Input Module |
| System Compatibility | Yokogawa FA-M3 PLC Series |
| Number of Channels | 8 analog input channels |
| Input Signal Types | 0–5 V, 1–5 V, 0–10 V, -10–10 V, 0–20 mA, 4–20 mA (selectable per channel) |
| Resolution | 12-bit A/D conversion |
| Conversion Speed | 1 ms per channel |
| Input Impedance | Voltage: ≥ 1 MΩ; Current: ~250 Ω |
| Isolation | Photocoupler isolation between input and internal circuits |
| Accuracy | ±0.5% of full scale (typical) |
| Filtering | Built-in digital filtering and scaling functions |
| Power Supply | Supplied via FA-M3 base unit |
| Mounting Format | DIN rail or panel mount via base unit |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +75°C |
| Humidity Range | 5%–95% RH |
| Weight | 250–300 g |
| Certifications | CE, UL, RoHS compliant |
