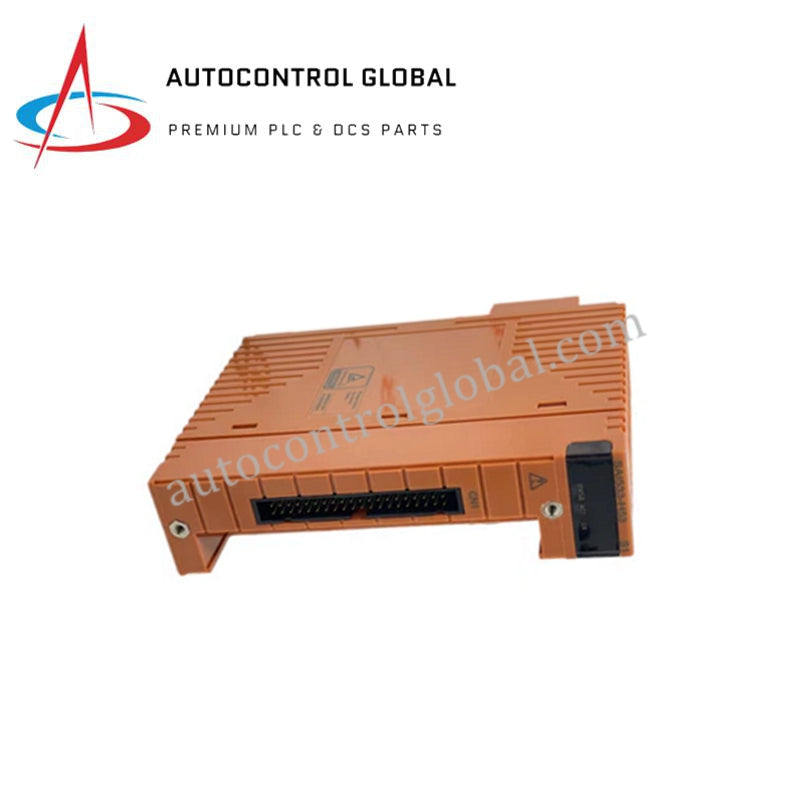

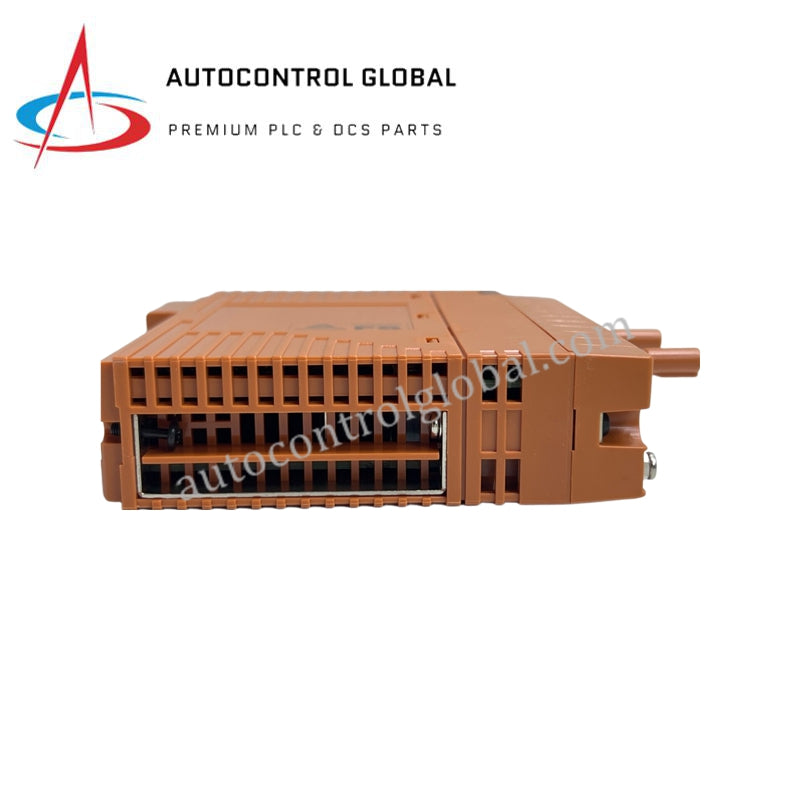

Yokogawa SDV541-S33 S2 Digital Output Module 24VDC 16-Channel

Product Description

The SDV541-S33 S2 (SDV541) is a high-reliability digital output module specifically engineered for the Yokogawa ProSafe-RS Safety Instrumented System (SIS) and S2 series process control environments. This module provides 16 channels of isolated digital outputs, operating as a current source to drive safety-critical field equipment such as solenoid valves, interlock relays, and emergency actuators.

Designed for mission-critical automation, the SDV541-S33 S2 (SDV541) features advanced internal diagnostics and robust galvanic isolation. It ensures deterministic control by monitoring output status and protecting against field-side electrical anomalies. The "S2" suffix indicates compatibility with Yokogawa's enhanced safety bus architectures, providing integrated short-circuit protection and current-limiting capabilities essential for maintaining SIL-rated safety loops in oil & gas, chemical processing, and power generation facilities.

Detailed Technical Specifications

The SDV541-S33 S2 (SDV541) offers high-precision output control with the following hardware parameters:

  • Manufacturer: Yokogawa

  • Model Number: SDV541-S33 S2

  • Product Type: Digital Output Module (Current Source Type)

  • System Compatibility: ProSafe-RS, S2 series I/O system

  • Number of Channels: 16 channels, module isolation

  • Output Voltage: 24 V DC (nominal)

  • Output Voltage Drop: ≤ 1.0 V DC (when ON)

  • Maximum Load Current: 0.2 A per channel (total module limit: 3.2 A)

  • External Power Supply Requirement: 24 V DC (+20% / -10%), minimum 3.4 A

  • Leakage Current (OFF state): ≤ 1.6 mA

  • Isolation Resistance: Minimum 10 MΩ (at 500 V DC)

  • Withstanding Voltage: 500 V AC between output signals and system

  • Response Time: ≤ 40 ms (for safety-related de-energization)

  • Dimensions: 130 mm × 107.5 mm × 32.8 mm ( 5.1" x 4.2" x 1.3")

  • Weight: 0.3 kg (10.1 oz)

  • Mounting: Pressure-fit for I/O baseplate

  • Origin: Japan
